Inspection Procedure N-13

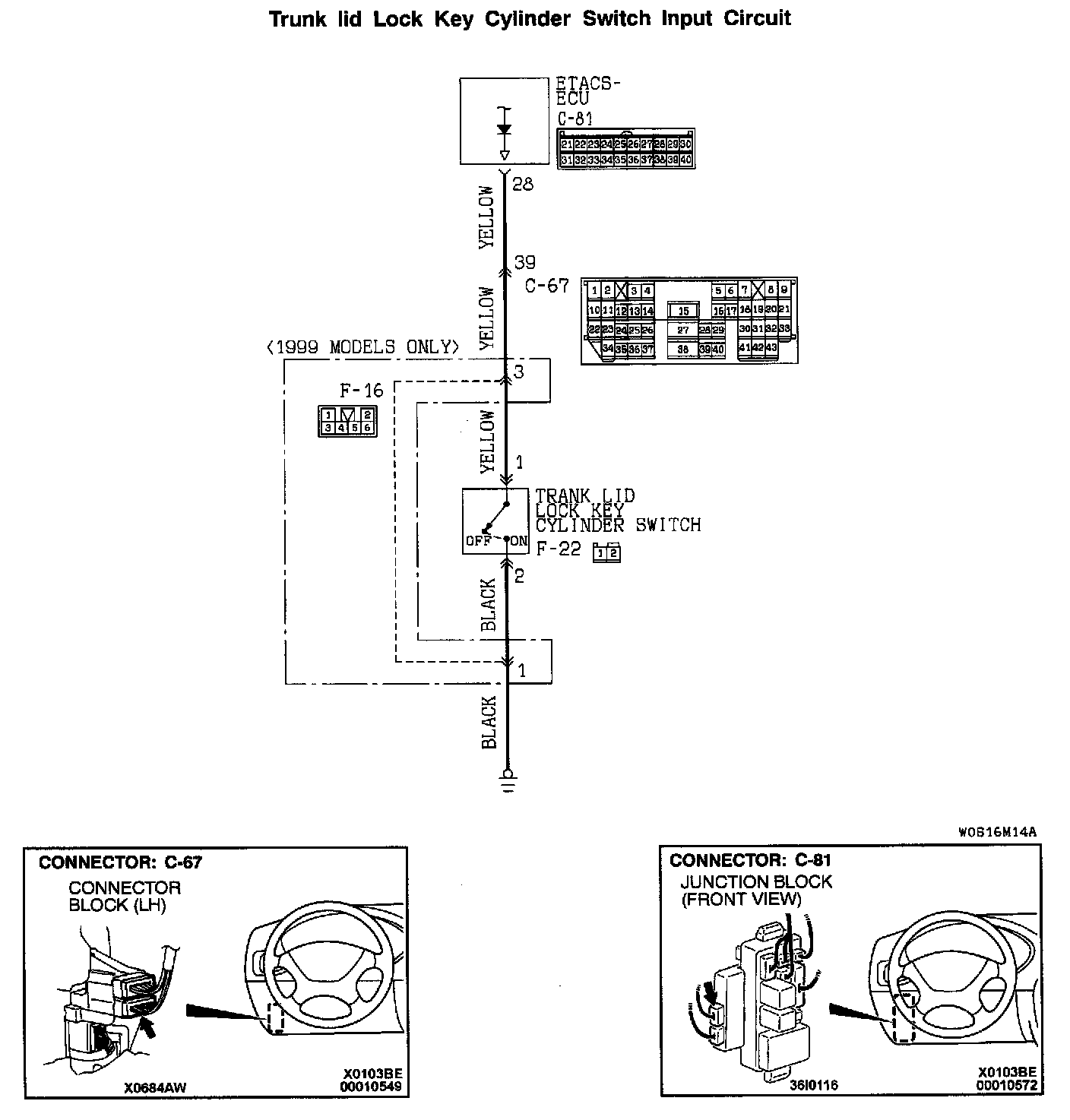

Trunk Lid Lock Key Cylinder Switch Input Circuit:

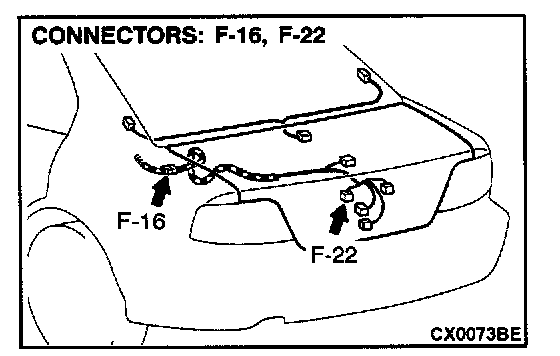

Connectors: F-16, F-22:






CIRCUIT OPERATION
The ETACS-ECU uses the input signal from the trunk lid lock key cylinder switch to arm the theft-alarm system.

TECHNICAL DESCRIPTION (COMMENT)
The trunk lid lock key cylinder switch signal is used to arm the theft-alarm system. If the input signal is an error, the theft-alarm system will not be armed normally.

TROUBLESHOOTING HINTS
- Malfunction of the trunk lid lock key cylinder switch
- Malfunction of the ETACS-ECU
- Damaged harness wires or connectors

DIAGNOSIS
Required Special Tools:
MB991223: Test Harness Set
MB991502: Scan Tool (MUT-II)
MB991529: Diagnostic Trouble Code Check Harness

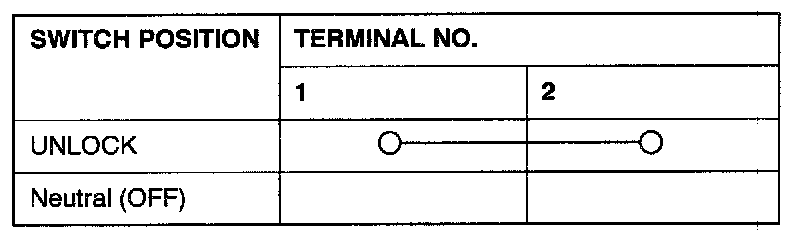

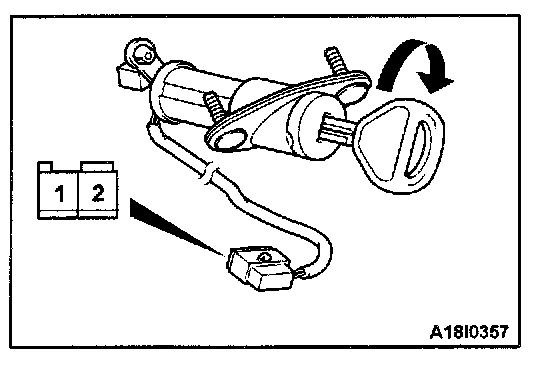

STEP 1. Check the trunk lid lock key cylinder switch.
If the trunk lid lock key cylinder switch is damaged, replace it.

The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.

If the trunk lid lock key cylinder switch is in good condition, go to Step 2.

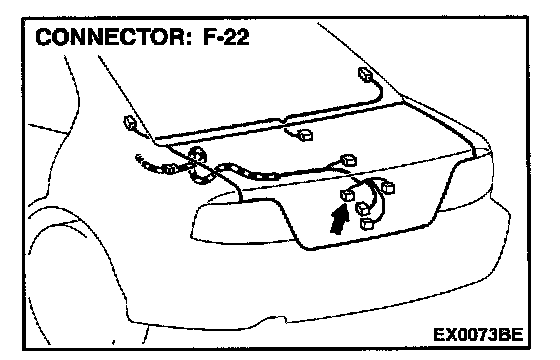

STEP 2. Check the trunk lid lock key cylinder switch ground circuit at trunk lid lock key cylinder switch connector F-22.

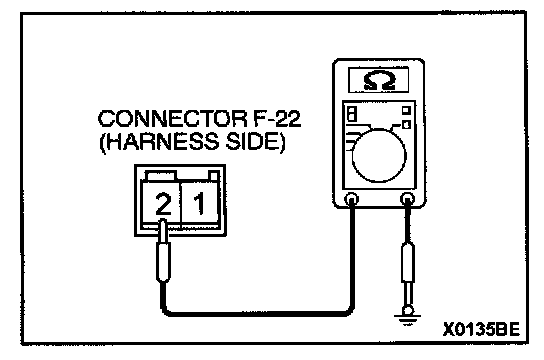

1. Disconnect the trunk lid lock key cylinder switch connector F-22 and measure at the harness side.
2. Resistance between terminal 2 and ground.
- Should be less than 2 Ohms.
If open circuit, go to Step 3.
If less than 2 Ohms, go to Step 5.

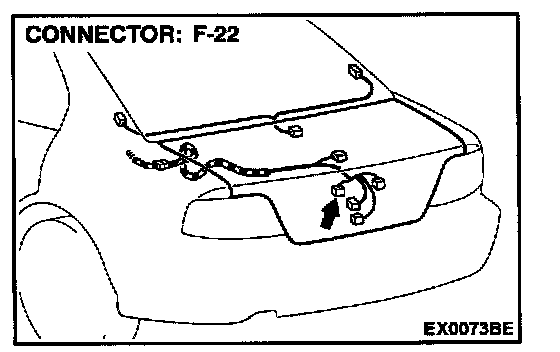

STEP 3. Check trunk lid lock key cylinder switch connector F-22 for damage.
If the trunk lid lock key cylinder switch connector F-22 is damaged, repair or replace it. Refer to Harness Connector Inspection.

The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.

If the connector is in good condition, go to Step 4.

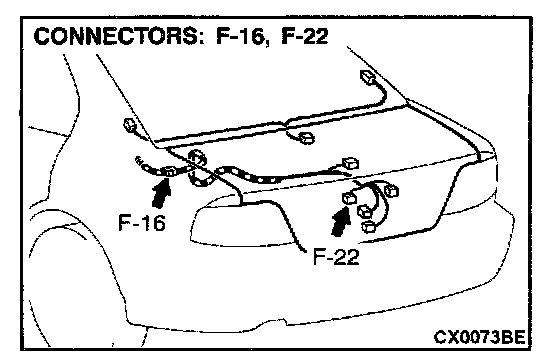

STEP 4. Check the harness wires between trunk lid lock key cylinder switch connector F-22 and ground.

NOTE: For 1999 models, after checking intermediate connector F-16, check the wires. If intermediate connector F-16 is damaged, repair or replace it. Refer to Harness Connector Inspection.

If the harness wires between trunk lid lock key cylinder switch connector F-22 and ground are damaged, repair them.

The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.

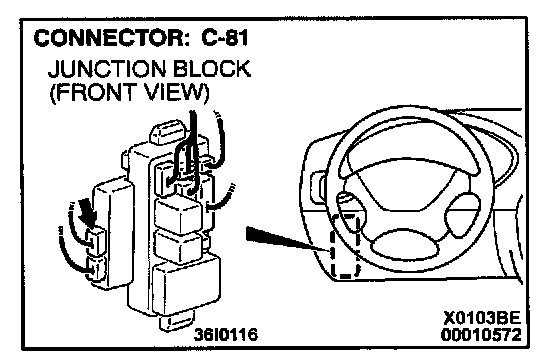

STEP 5. Check the trunk lid lock key cylinder switch connector F-22 and ETACS-ECU connector C-81 for damage.
If the trunk lid lock key cylinder switch connector F-22 and ETACS-ECU connector C-81 are damaged, repair or replace them. Refer to Harness Connector Inspection. The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.

If the connectors are in good condition, go to Step 6.

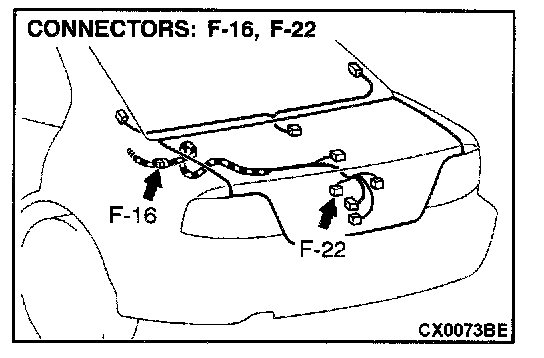

STEP 6. Check the harness wires between trunk lid lock key cylinder switch connector F-22 and ETACS-ECU connector C-81.

NOTE: After checking intermediate connectors C-67 and F-16 <1999 models only>, check the wires. If intermediate connectors C-67 and F-16 <1999 models only> are damaged, repair or replace them. Refer to Harness Connector Inspection.

If the harness wires between trunk lid lock key cylinder switch connector F-22 and ETACS-ECU connector C-81 are damaged, repair them.

The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.

If the harness wires are in good condition, replace the ETACS-ECU.

The input signal from the trunk lid lock key cylinder switch should be able to be checked and the theft-alarm system should be armed.
