Electrical Diagrams

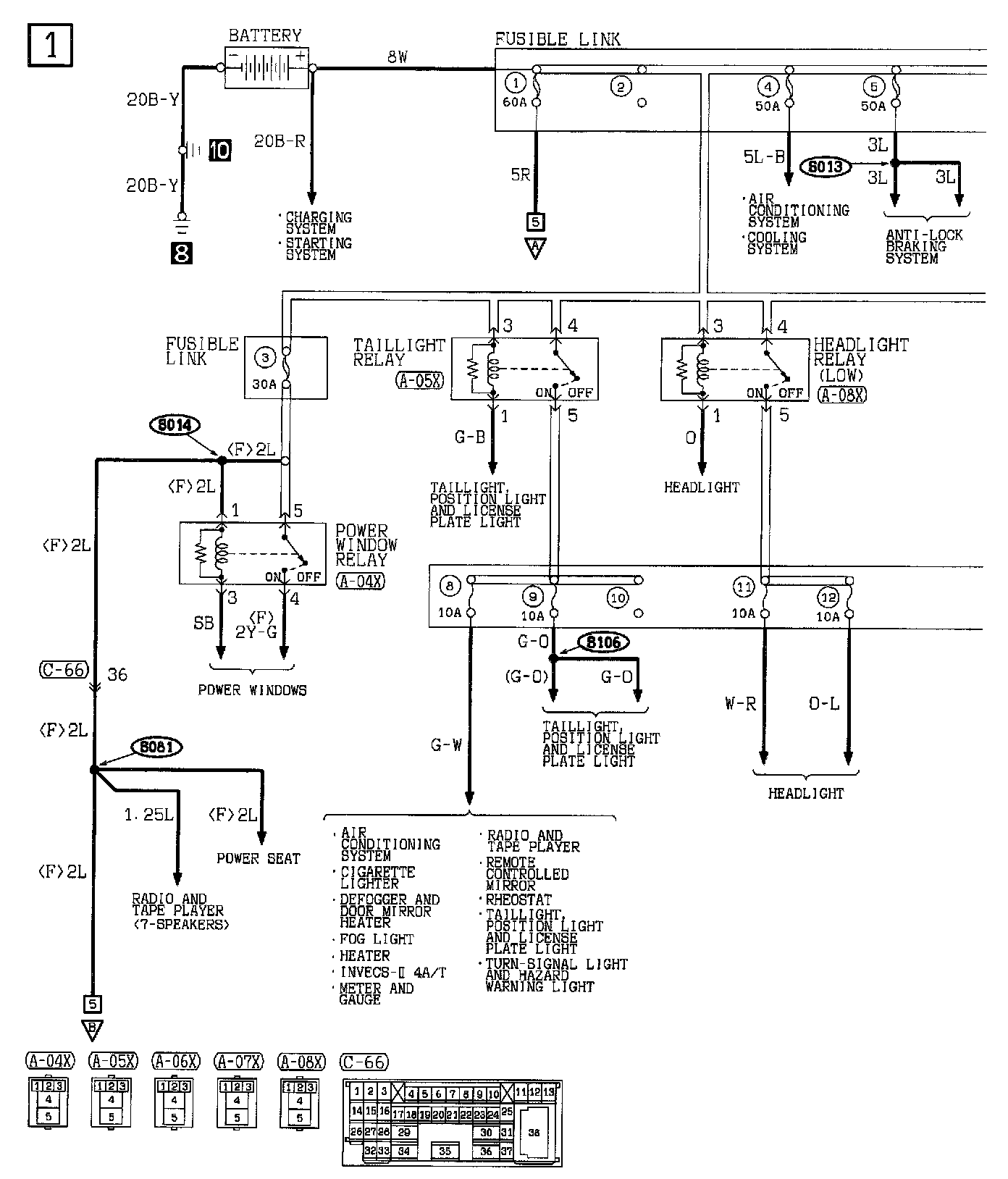

Battery
Fusible Link
Headlight Relay (Low)
Power Window Relay
Taillight Relay

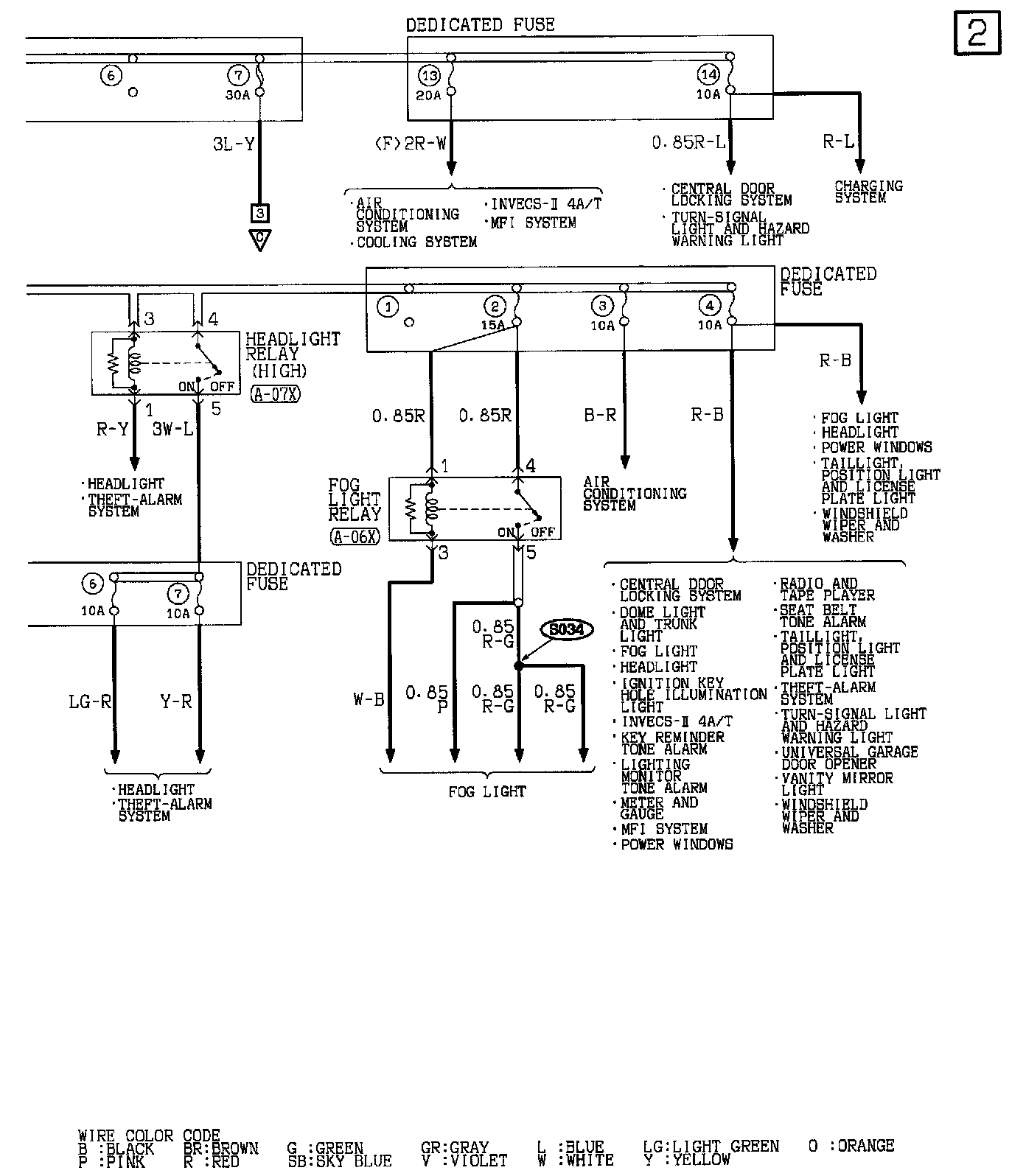

Dedicated Fuse
Fog Light Relay
Headlight Relay (High)

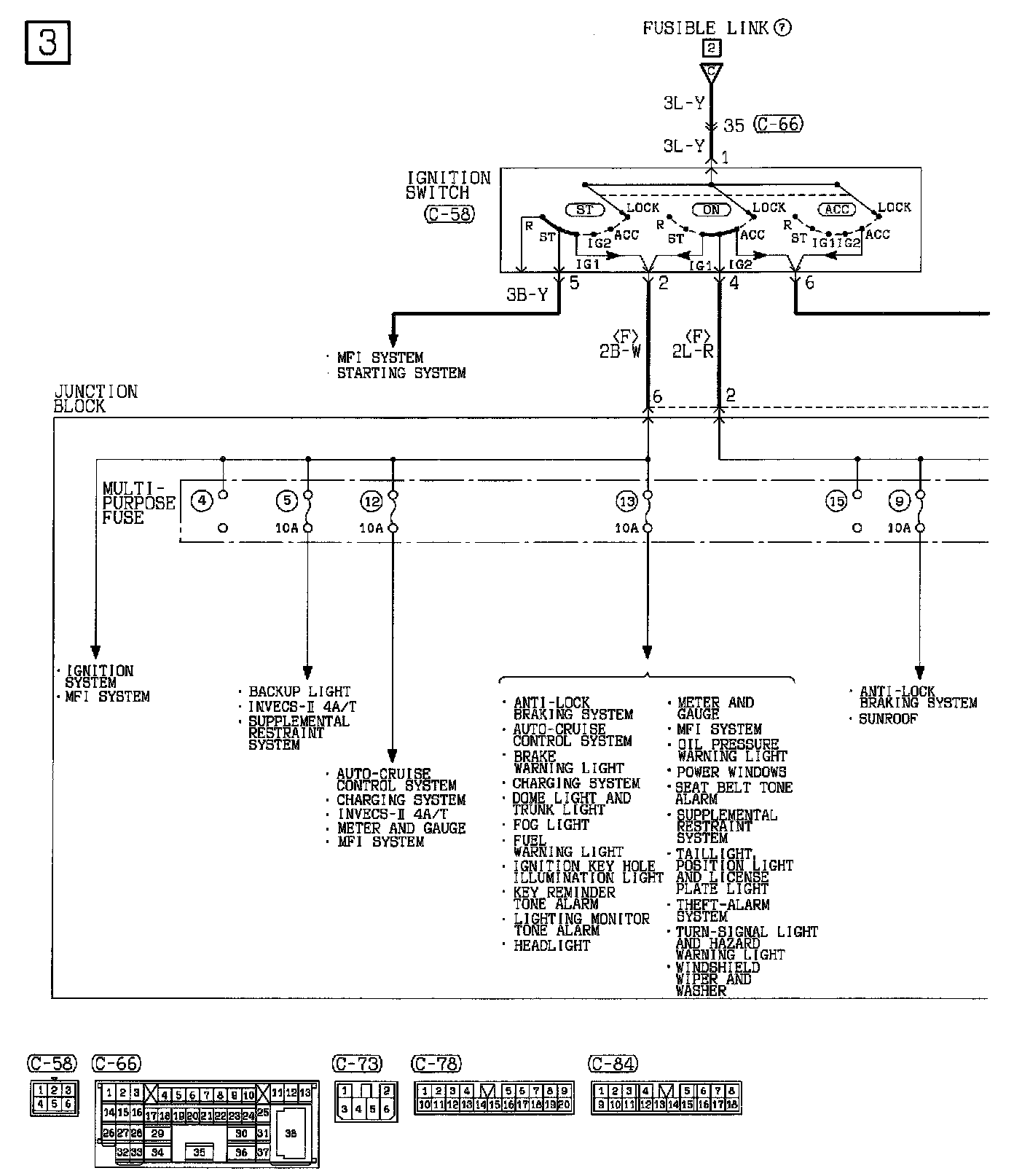

Ignition Switch
Junction Block

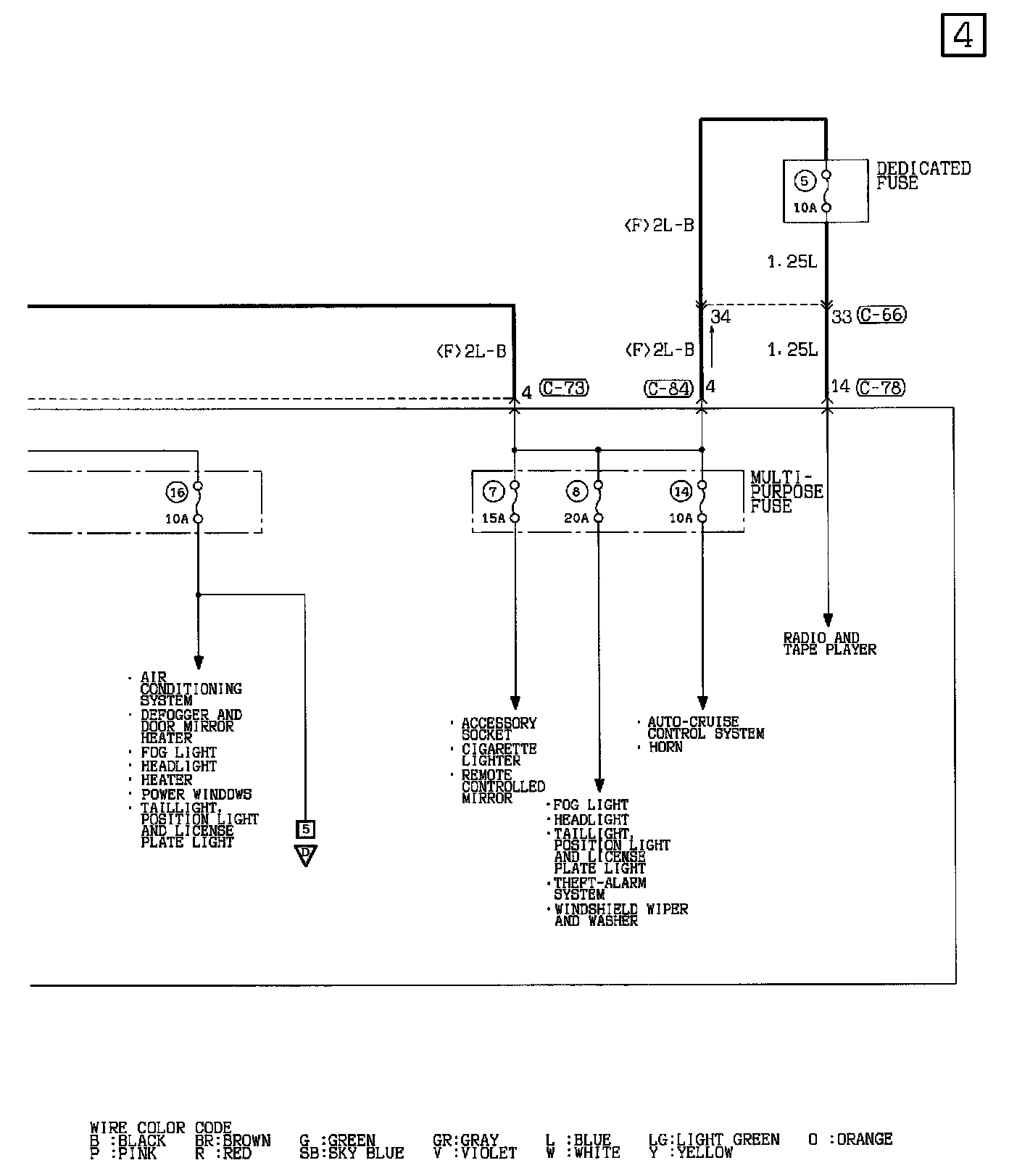

Dedicated Fuse
Multi-Purpose Fuse




Dedicated Fuse

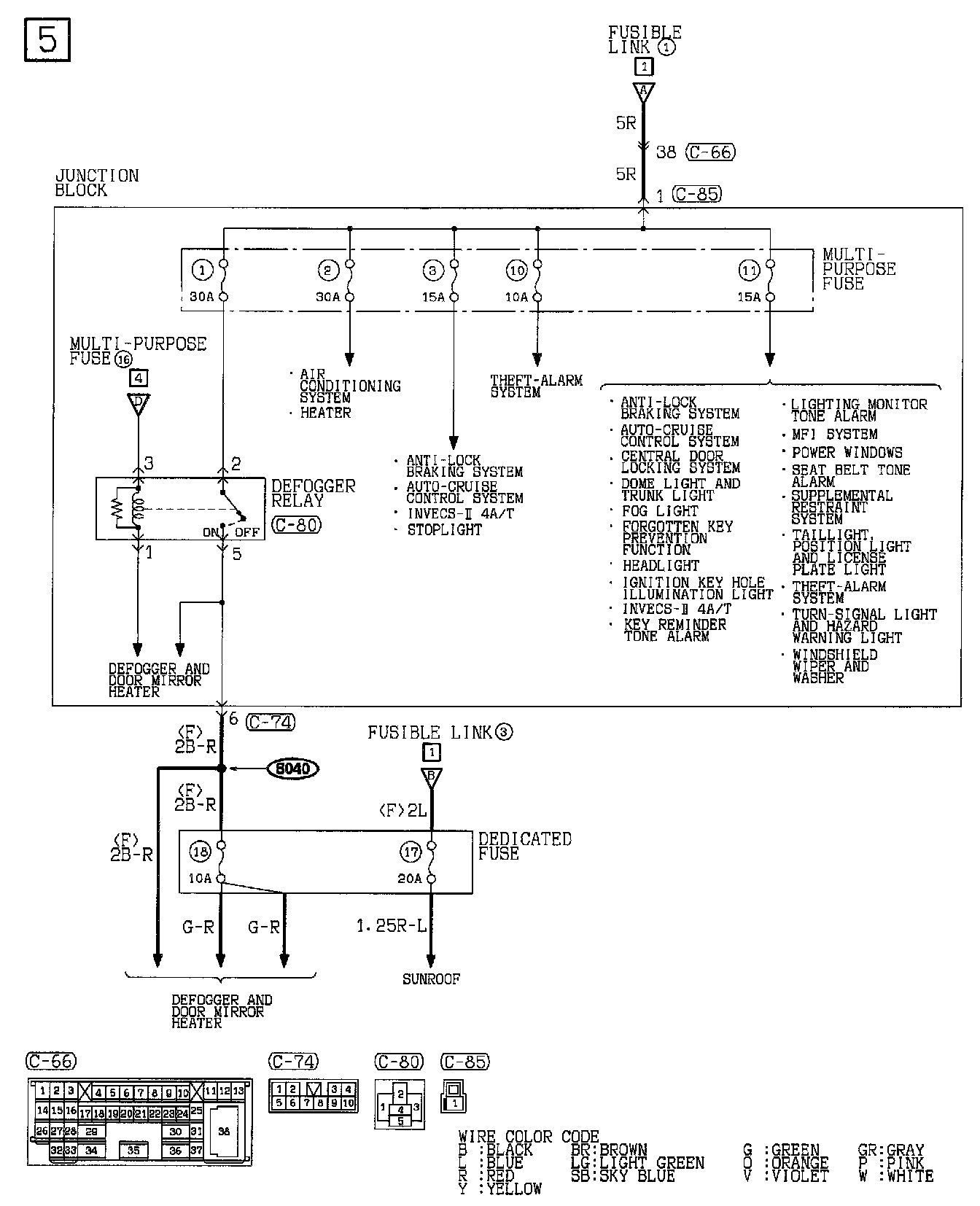

Defogger Relay
Junction Block
Multi-Purpose Fuse
Fusible Link
