Home
>>
Mitsubishi
>>
1999
>>
Galant ES V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

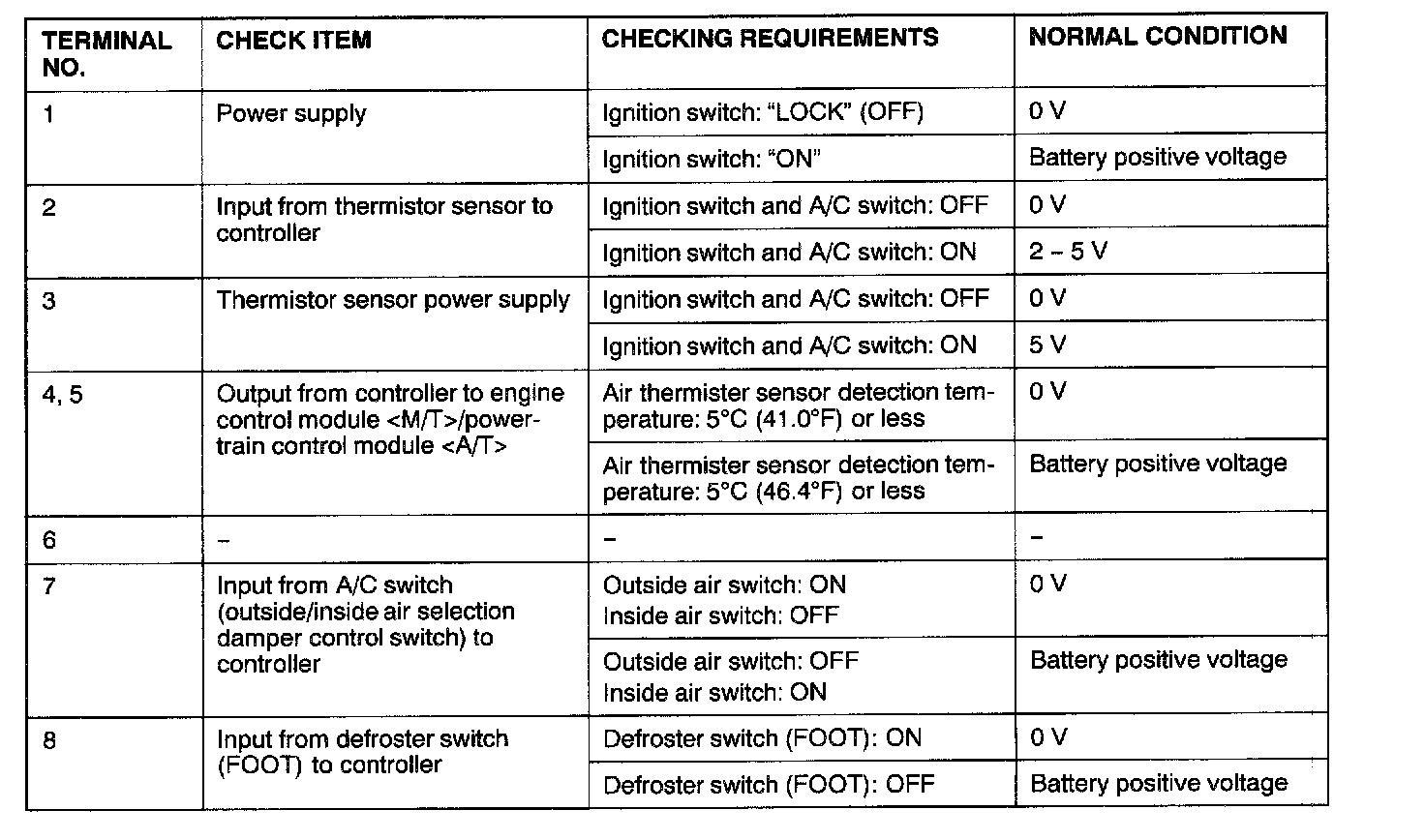

Inspection At the Automatic Compressor Controller Terminal - Terminal No. 1 - 4:
Inspection At the Automatic Compressor Controller Terminal Pinouts - Terminal No. 1 - 8:
