Inside/Outside Air Damper Controller/DEF. SW. and A/C Indicator

Inside/Outside Air Damper Controller:

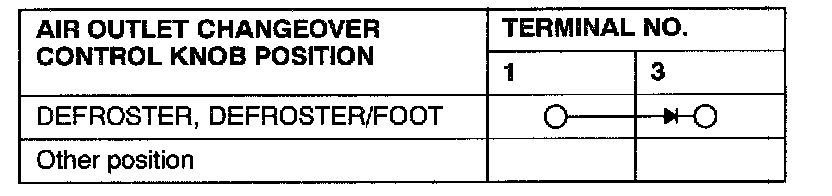

Defroster Switch:

1. DEFROSTER SWITCH

Inside/outside Air Damper Changeover Relay:

2. INSIDE/OUTSIDE AIR DAMPER CHANGEOVER RELAY

NOTE: Battery voltage should be supplied when the air outlet changeover knob is at the defroster or defroster/foot position.

A/C Indicator Relay:

3. A/C INDICATOR RELAY
