Power Locks

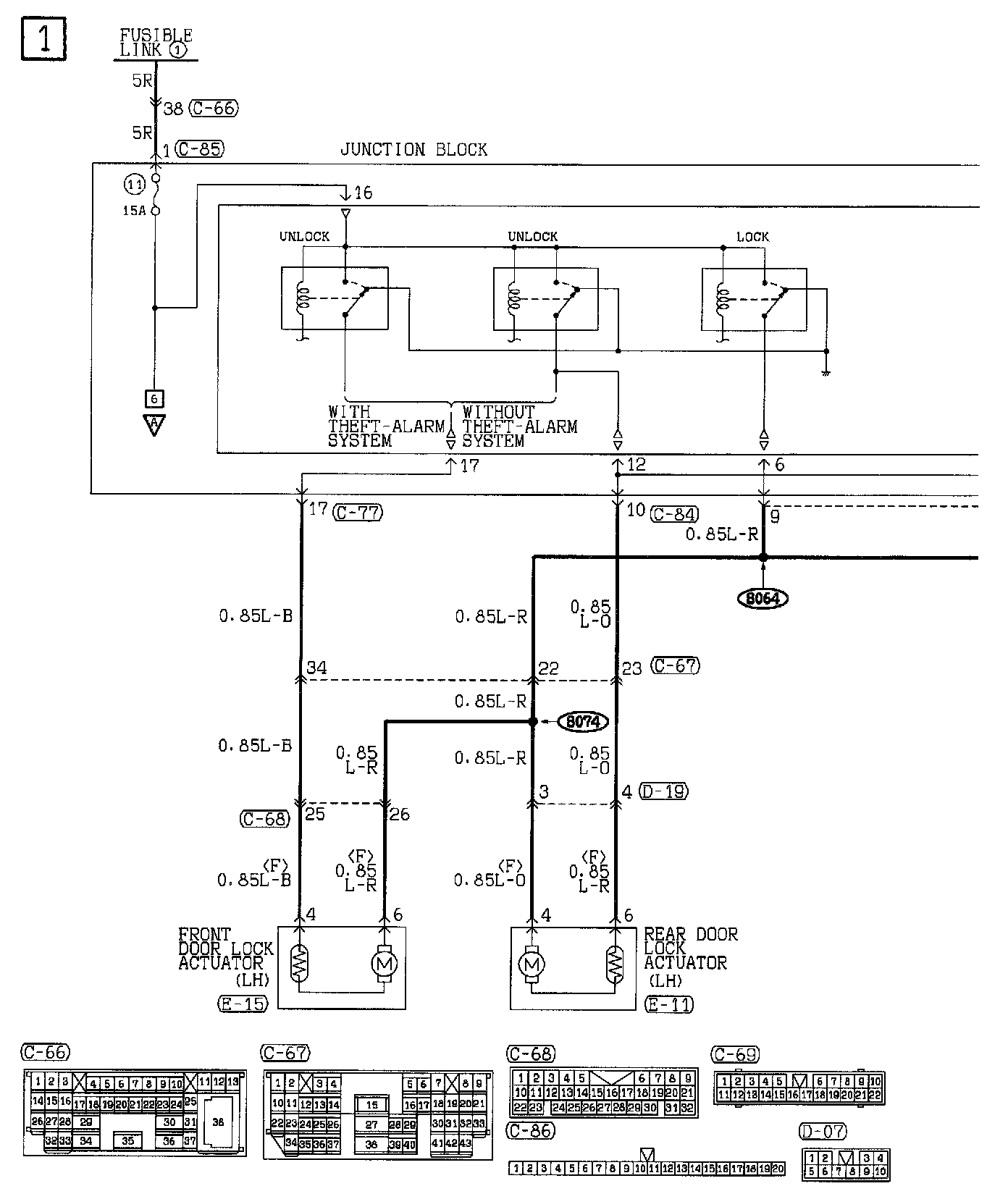

Front Door Lock Actuator (LH)
Junction Block
Rear Door Lock Actuator (LH)




Front Door Lock Actuator (RH)
ETACS-ECU
Rear Door Lock Actuator (RH)
Transmitter




ETACS-ECU

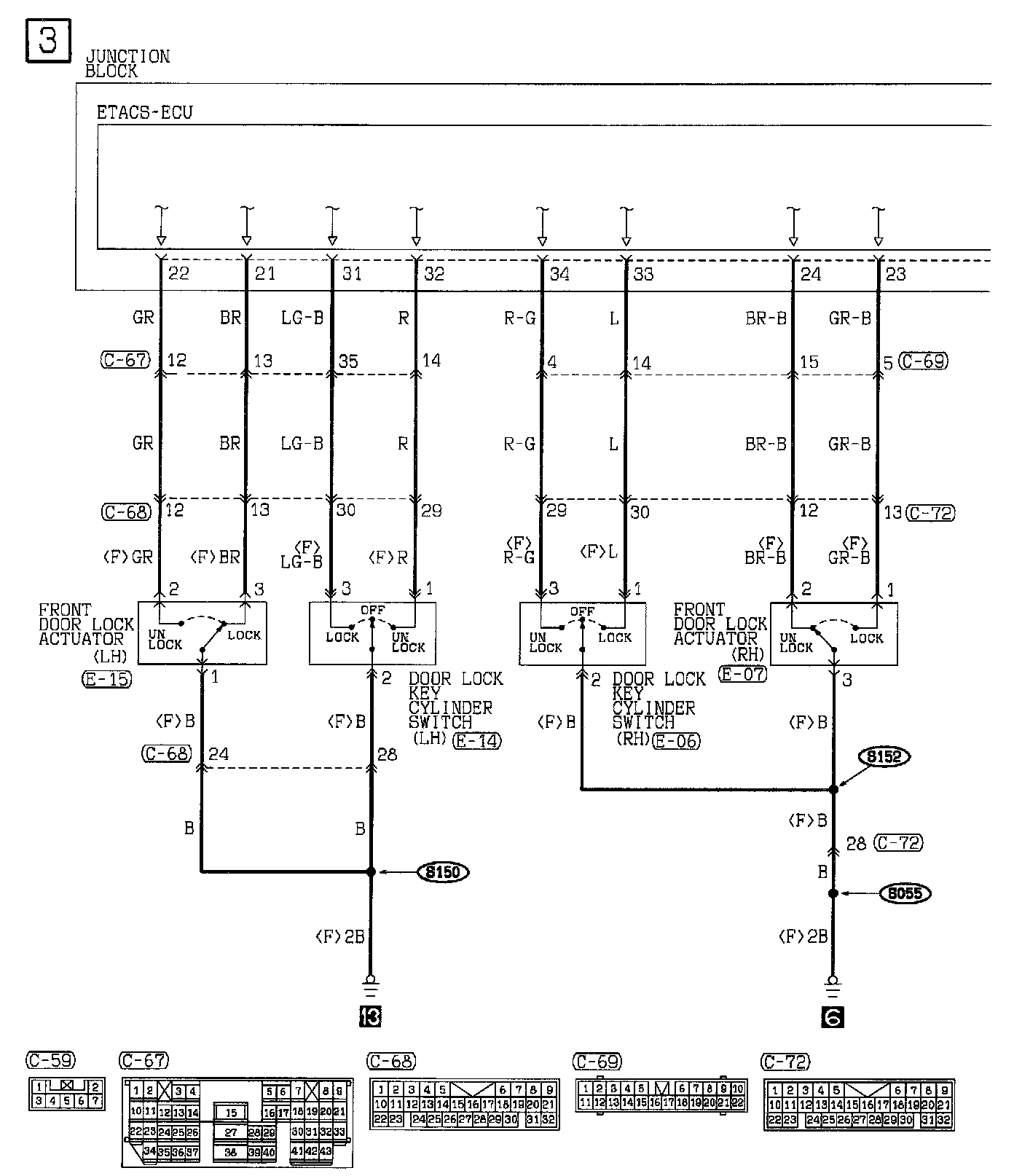

Front Door Lock Actuator (LH & RH)
Junction Block
Door Lock Key Cylinder Switch (LH)

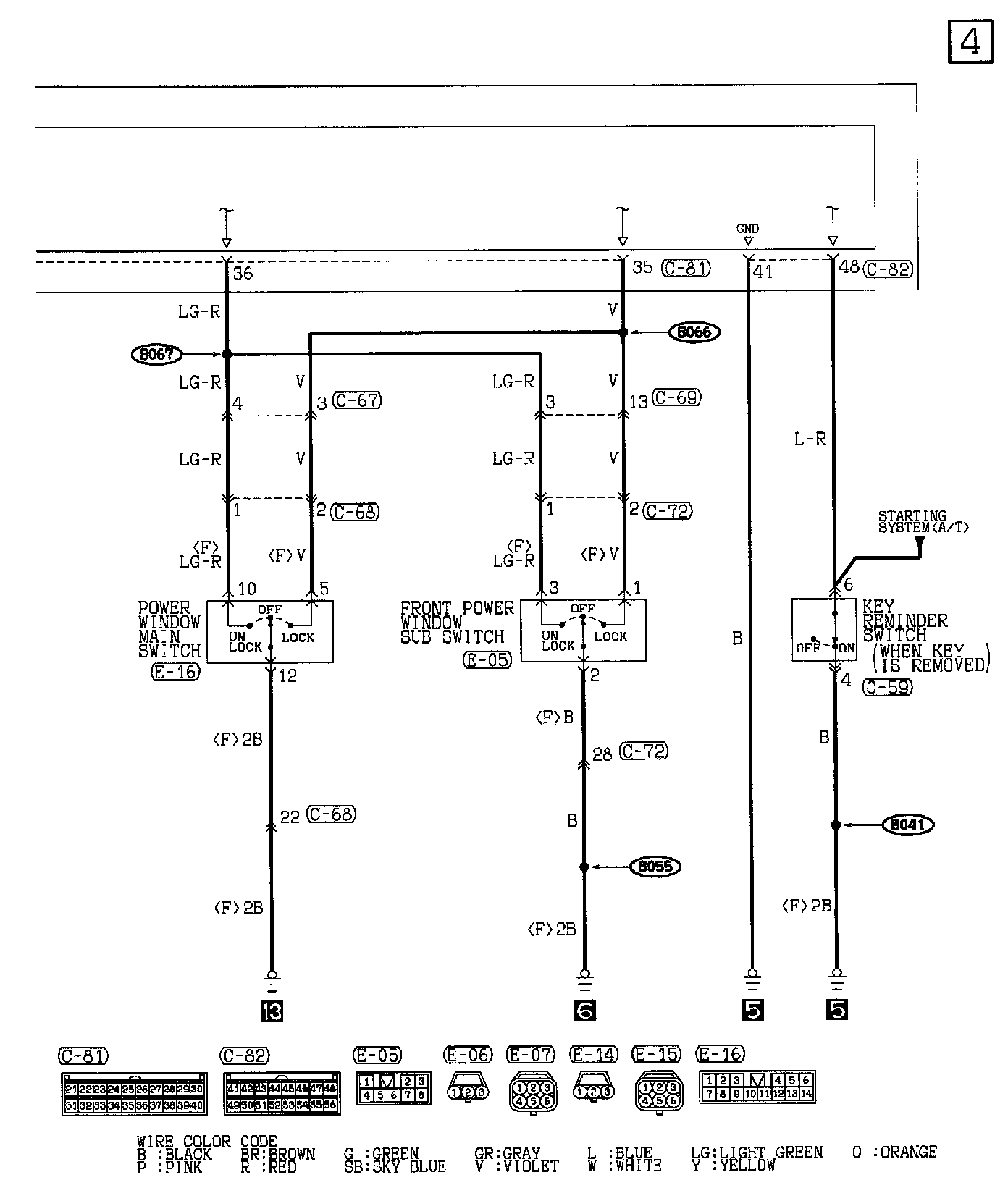

Front Power Window Sub Switch
Key Reminder Switch (When Key is Removed)
Power Window Main Switch

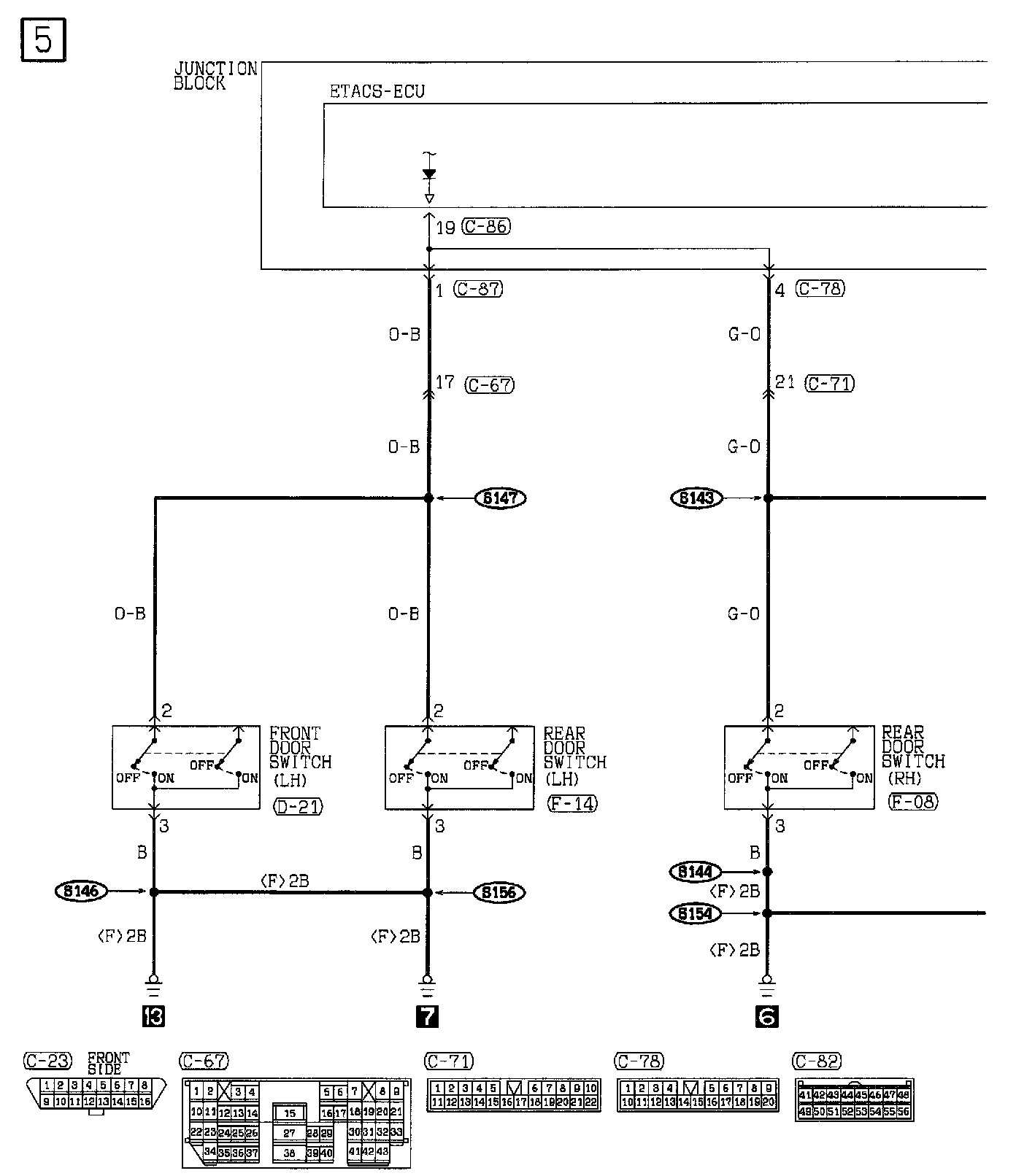

Front Door Switch (LH)
Junction Block
ETACS-ECU
Rear Door Switch (RH)

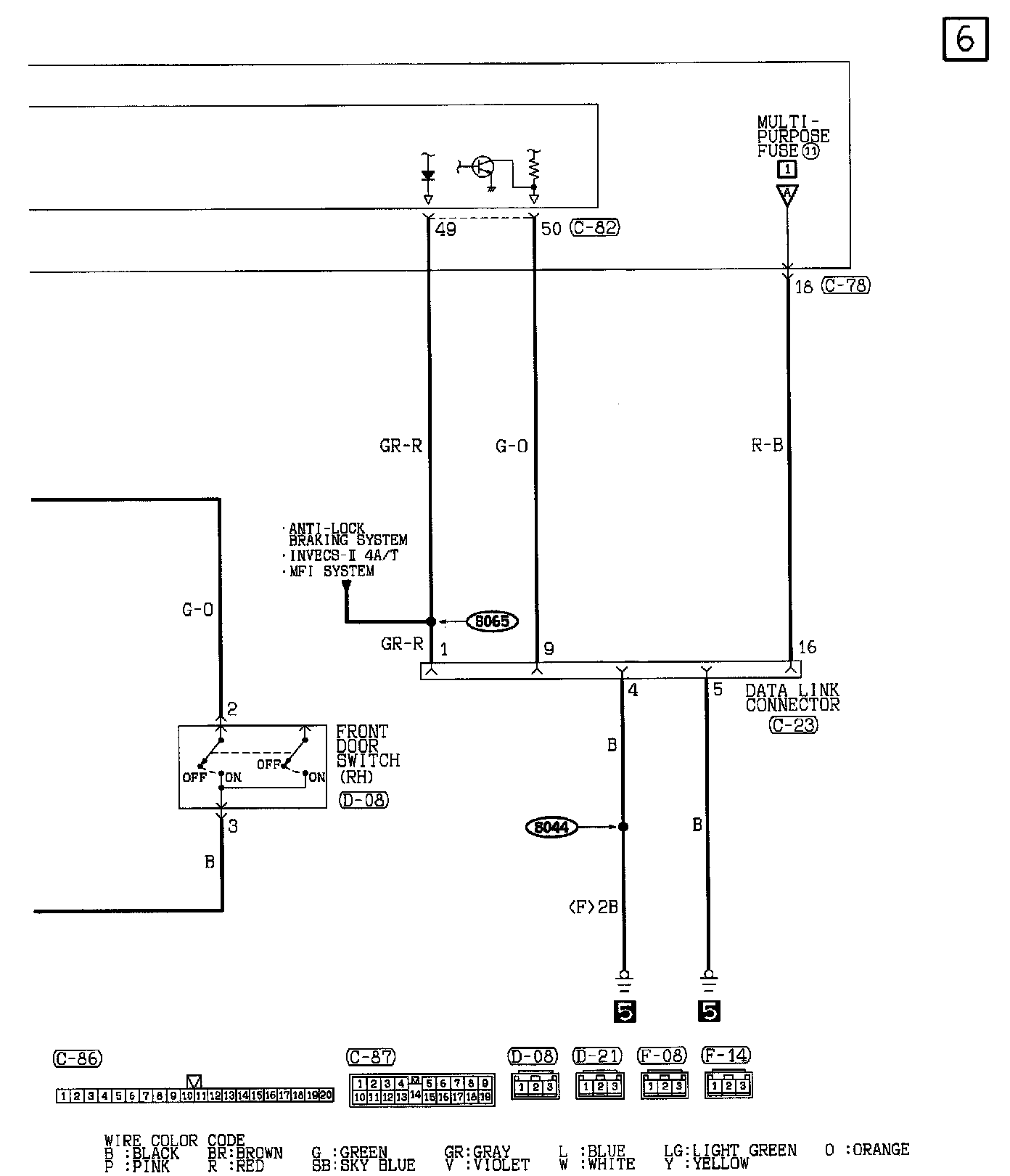

Data Link Connector
Front Door Switch (RH)
Multi-Purpose Fuse

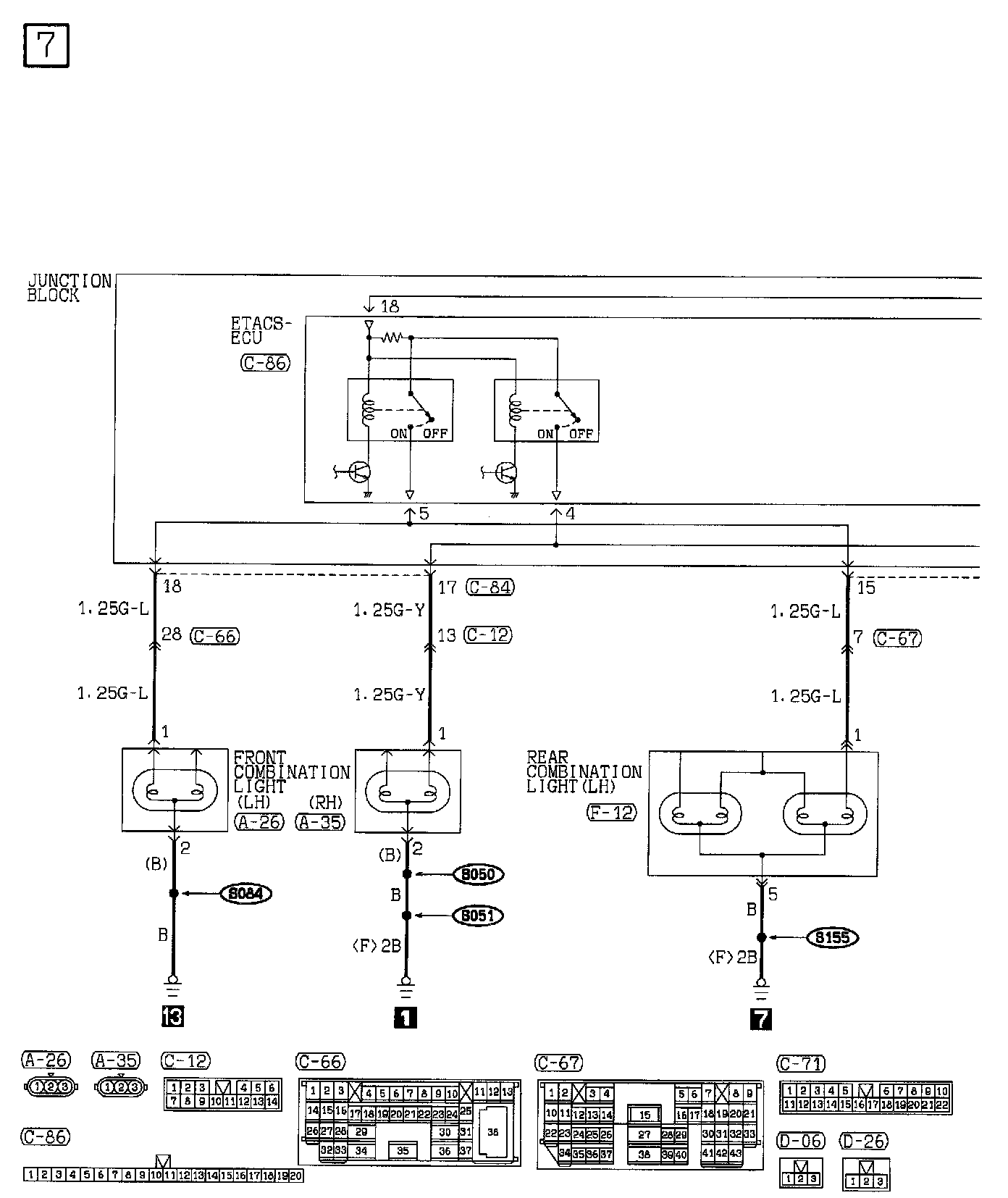

Front Combination Light (LH & RH)
Junction Block
ETACS-ECU
Rear Combination Light (LH)

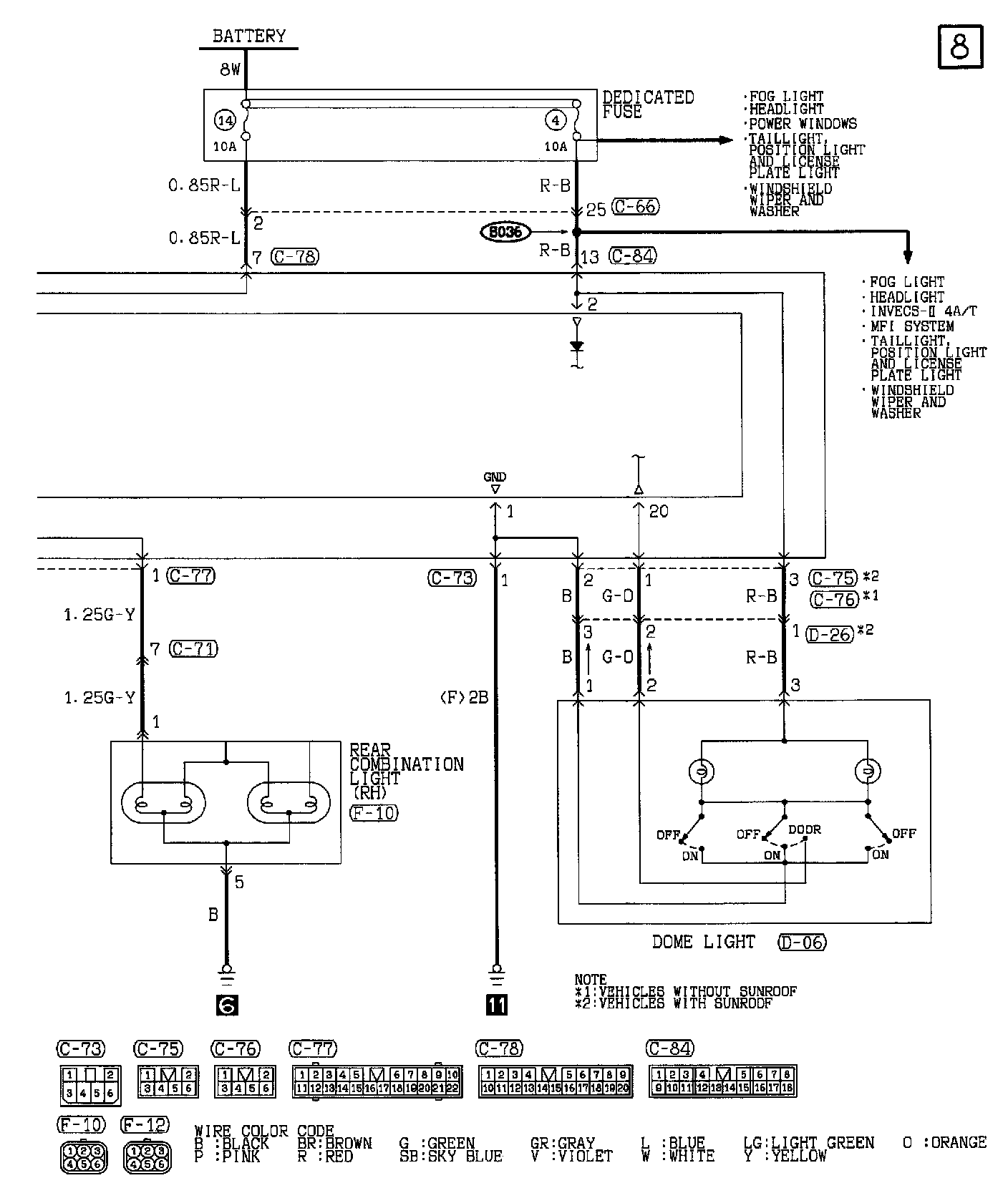

Dedicated Fuse
Dome Light
Rear Combination Light (RH)
