Manual Air Conditioning System

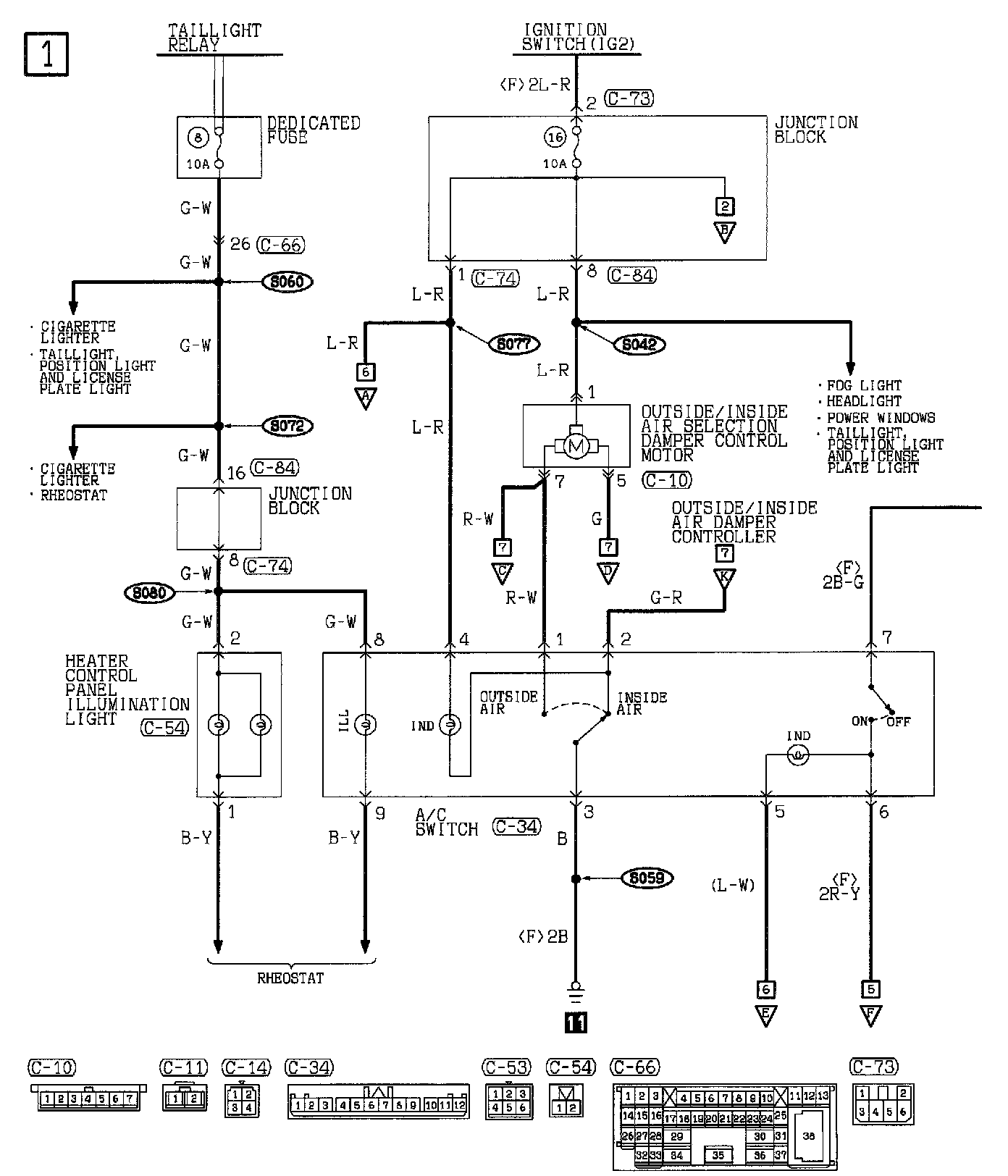

A/C Switch
Dedicated Fuse
Heater Control Panel Illumination Light
Junction Block
Junction Connector (2)
Outside/Inside Air Damper Control Motor
Outside/Inside Air Damper Controller




Blower Switch

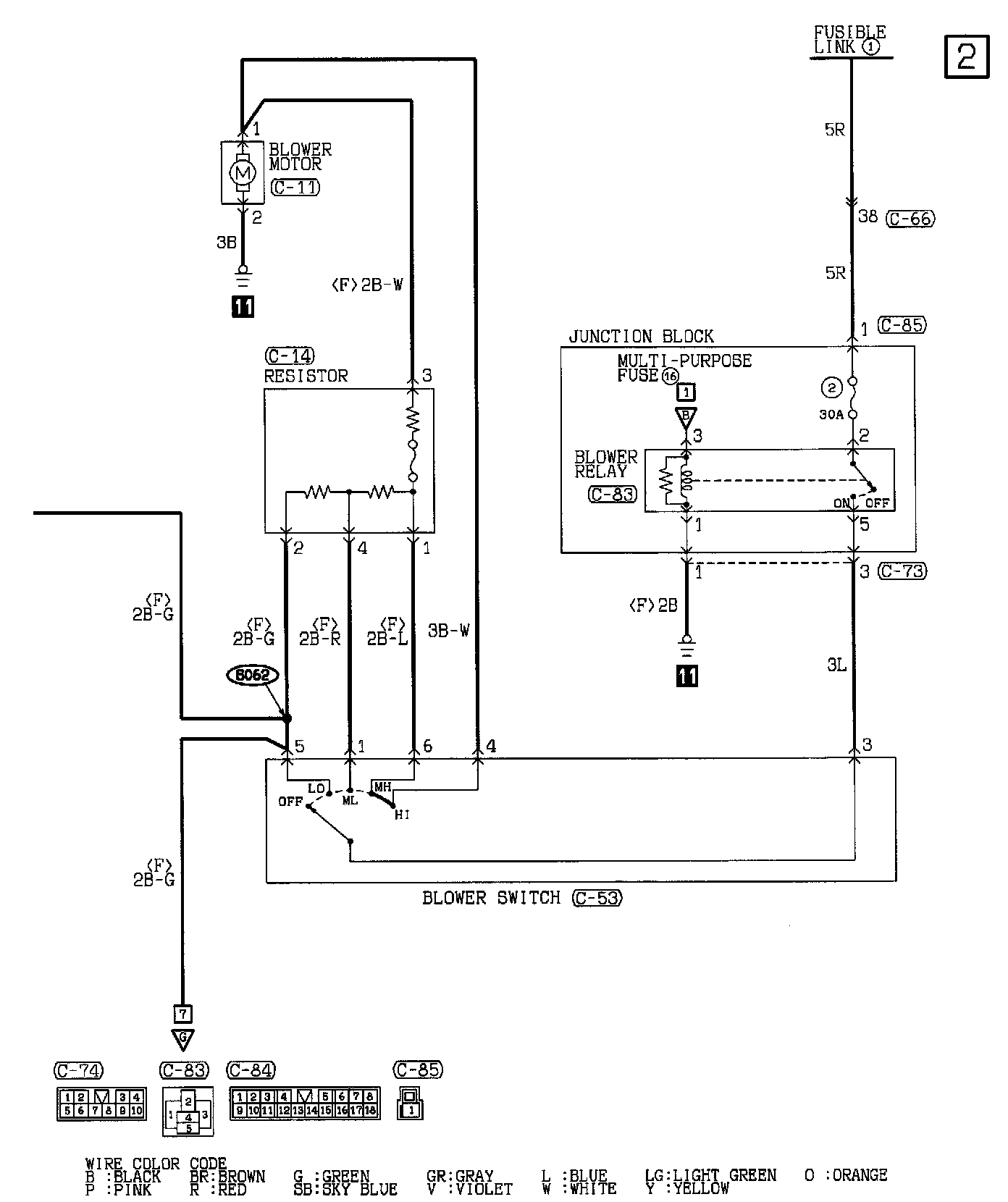

Blower Motor
Junction Block
Blower Relay
Resistor




Condenser Fan Motor

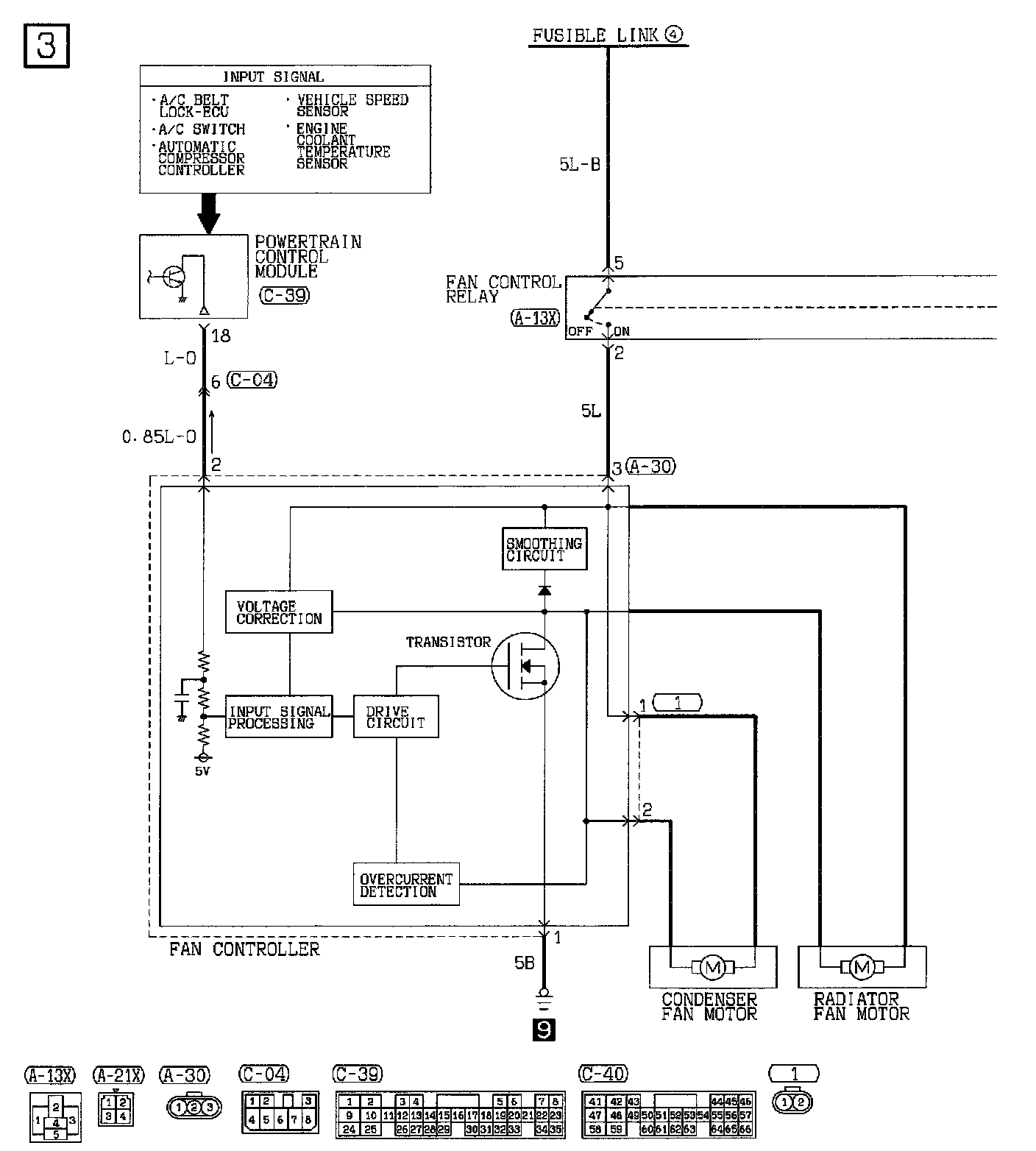

Fan Controller
Fan Control Relay
Radiator Fan Motor




Dedicated Fuse

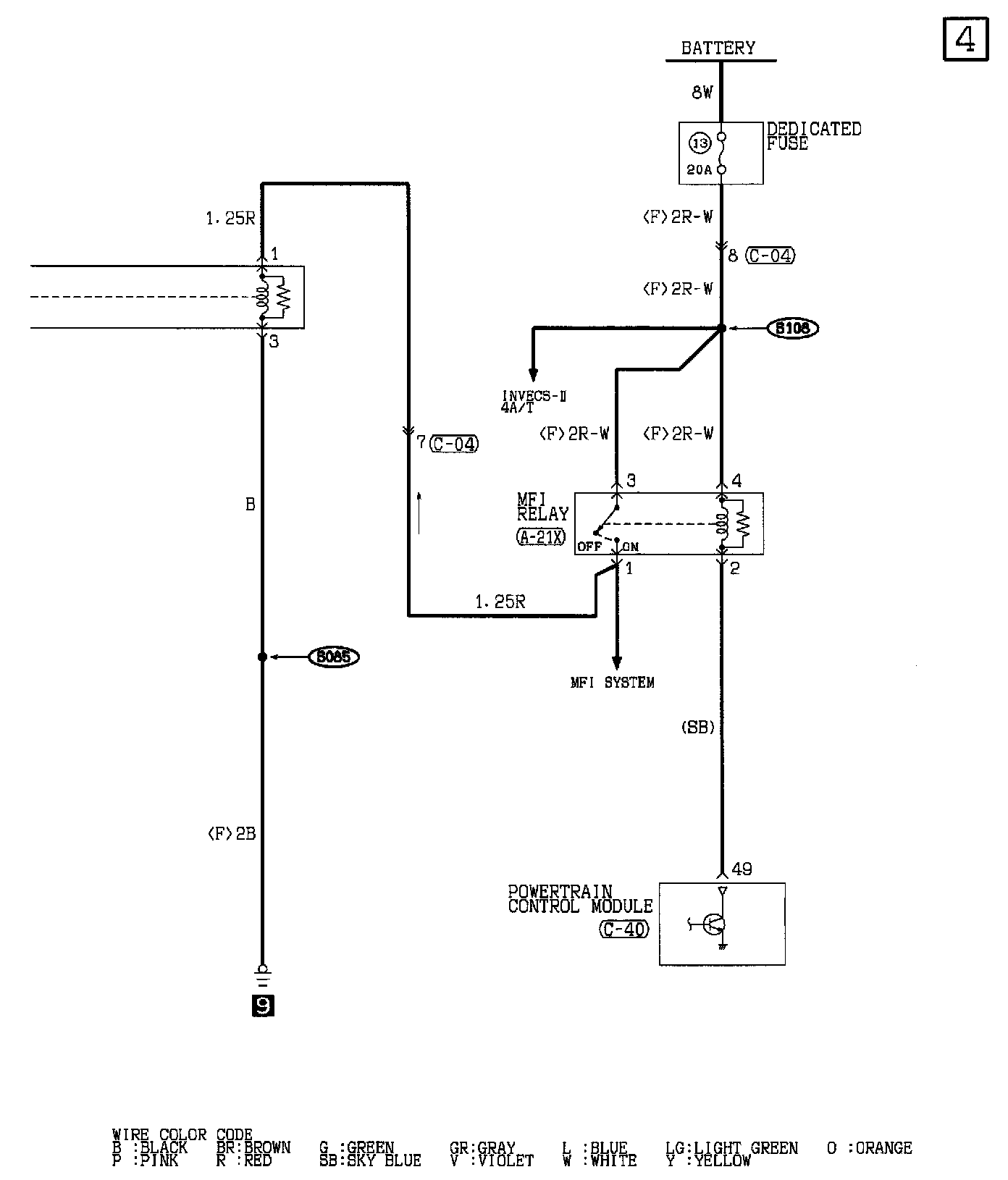

MFI Relay
Powertrain Control Module




A/C Compressor Relay
A/C Compressor
A/C Refrigerant Temperature Sensor
Air Thermo Sensor

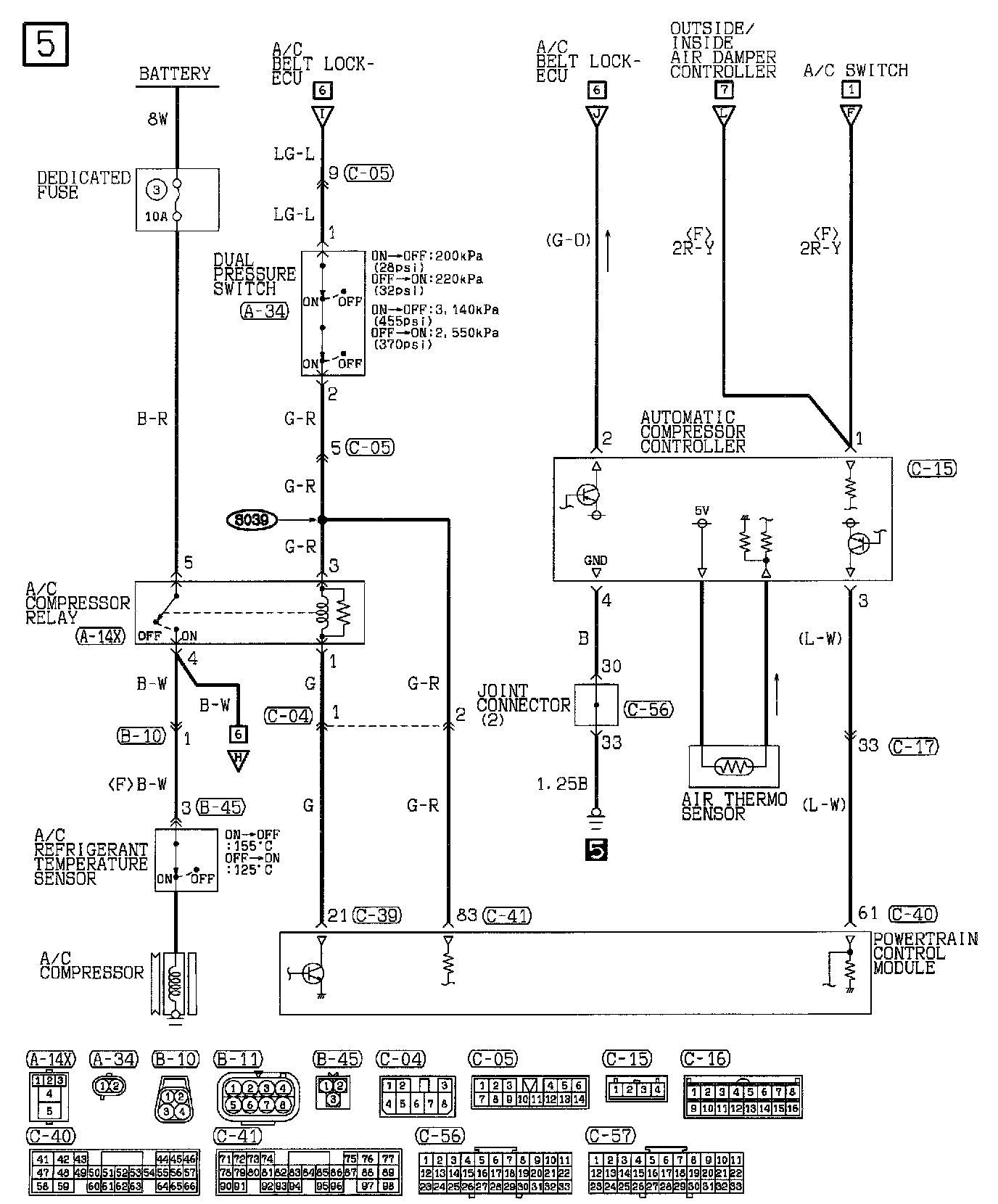

Automatic Compressor Controller
Dedicated Fuse
Dual Pressure Switch
Joint Connector
Powertrain Control Module

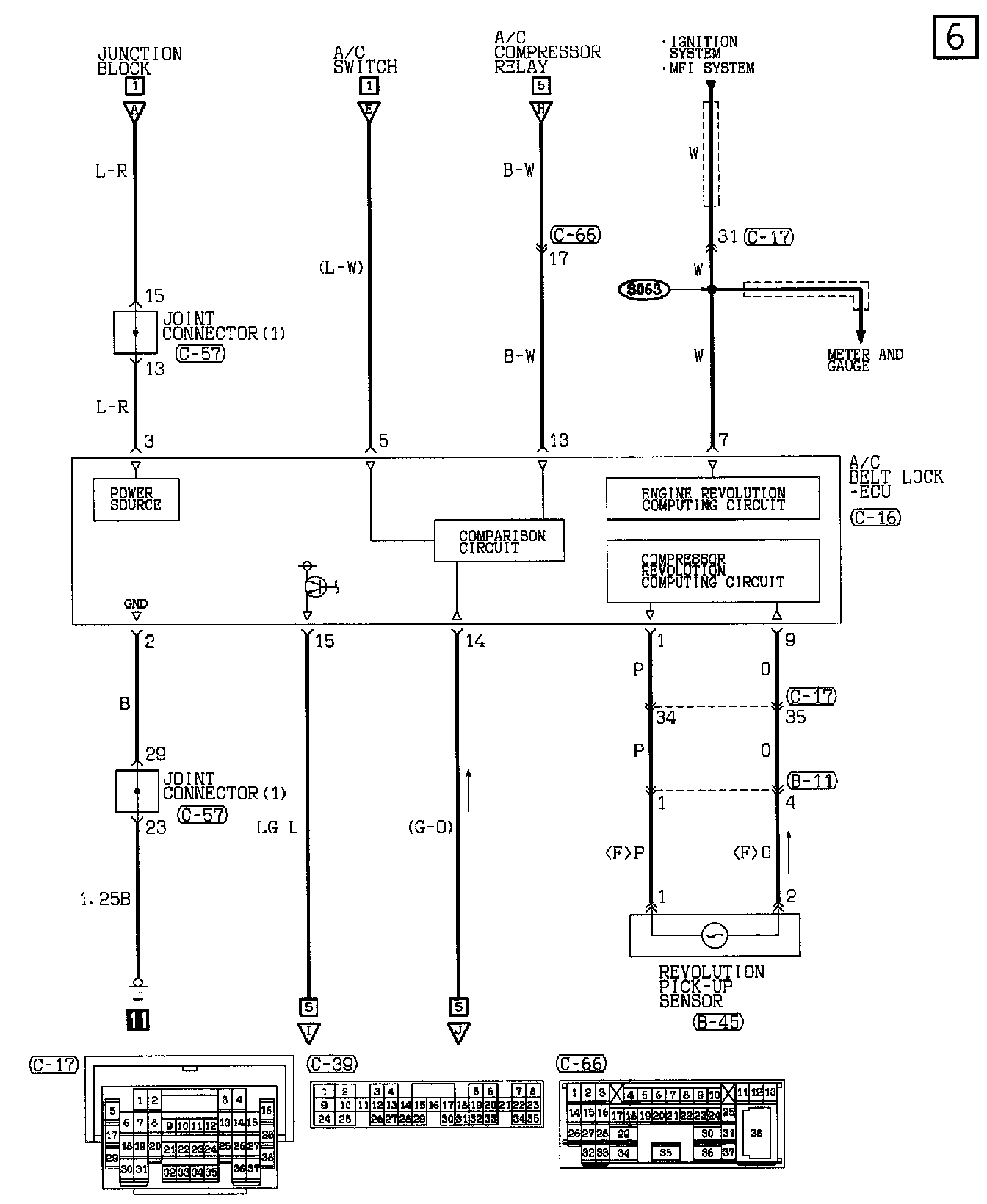

A/C Belt Lock ECU
Joint Connector (1)
Revolution Pick-Up Sensor




Joint Connector (2)
Outside/Inside Air Damper Controller
Defroster Switch
Outside/Inside Air Damper Changeover Relay
