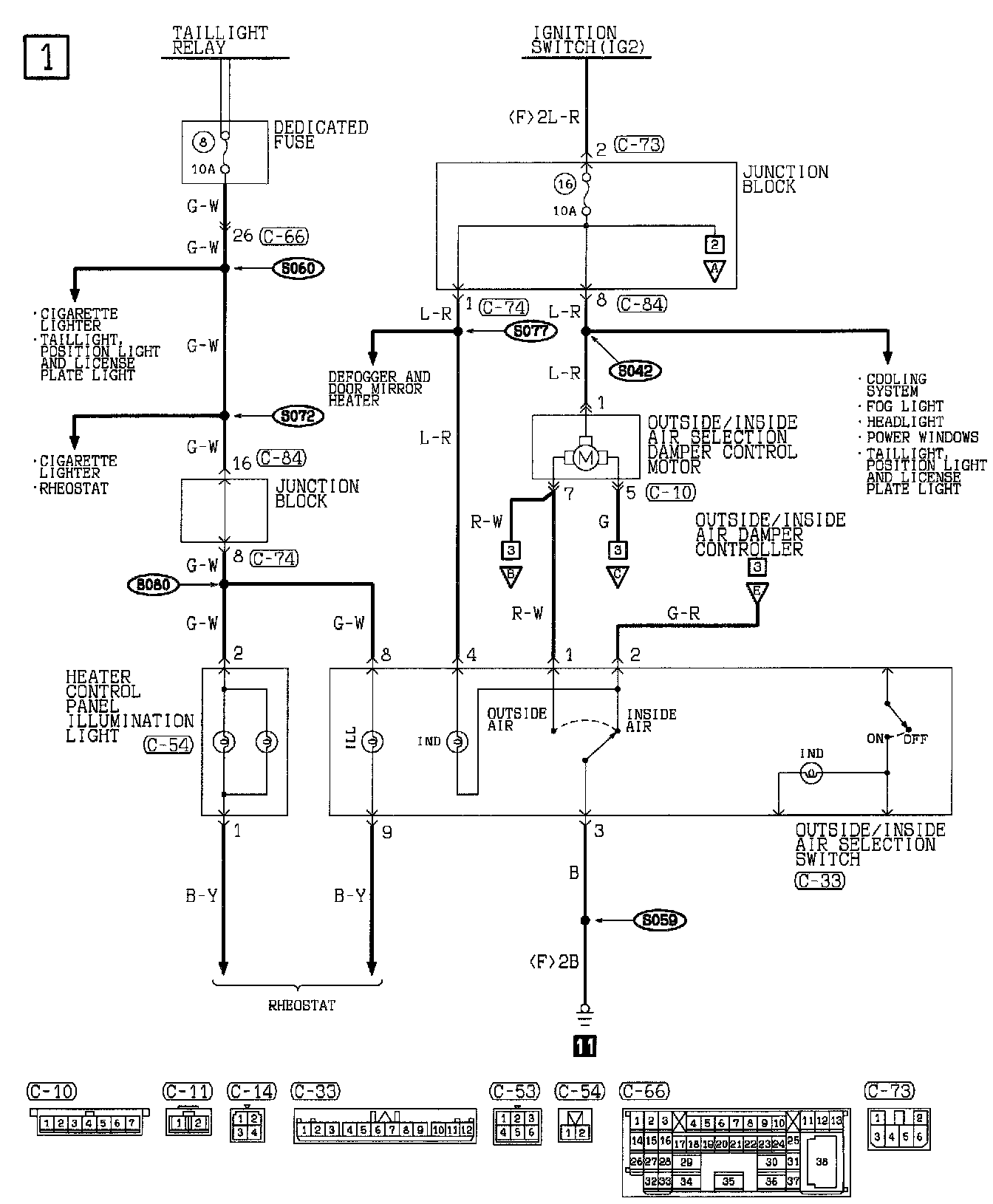

Heater

Dedicated Fuse
Heater Control Panel Illumination Light
Junction Block
Outside/Inside Air Selection Damper Control Motor
Outside/Inside Air Damper Controller
Outside/Inside Air Selection Switch

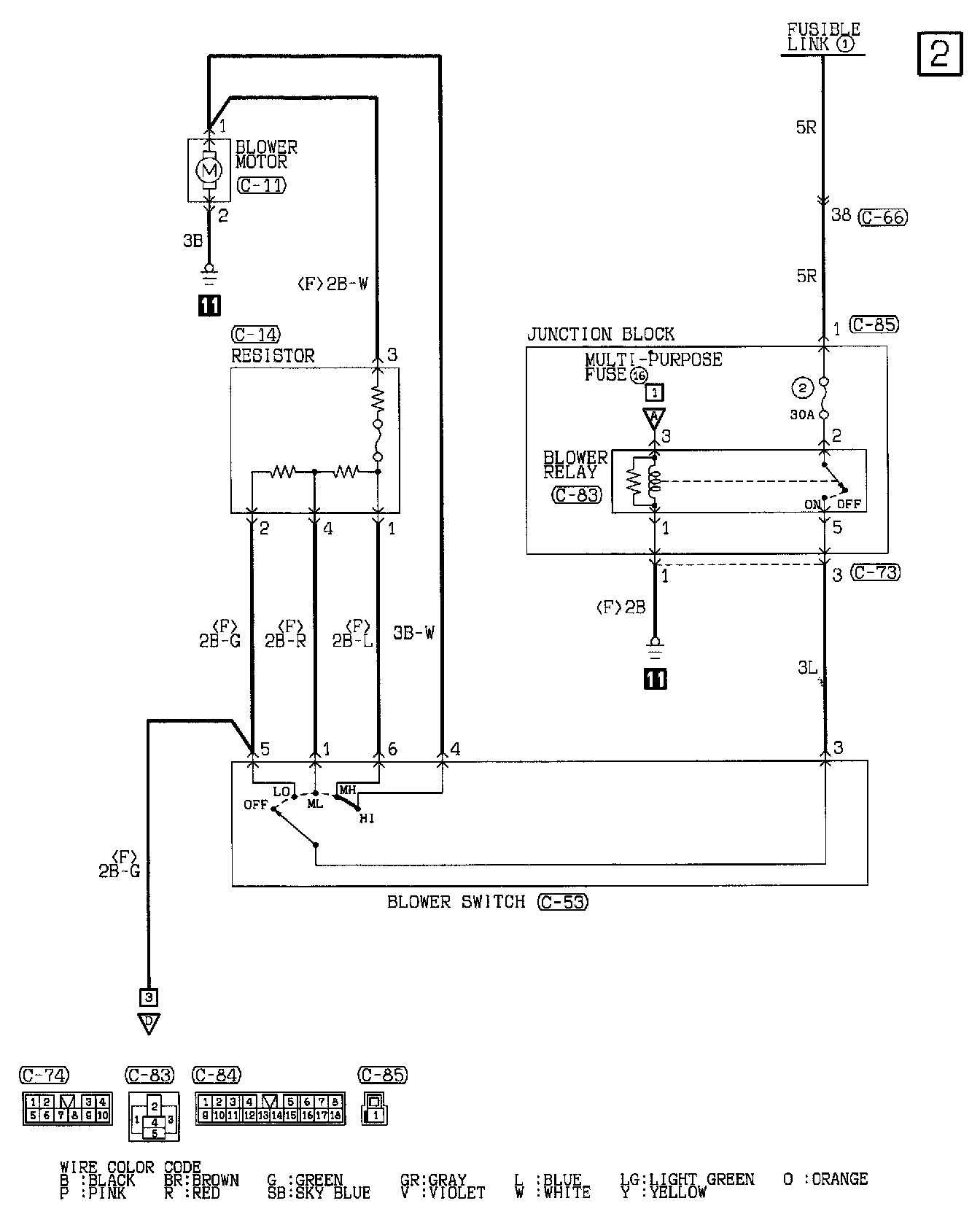

Blower Switch
Blower Motor
Junction Block
Blower Relay
Resistor




Joint Connector (2)

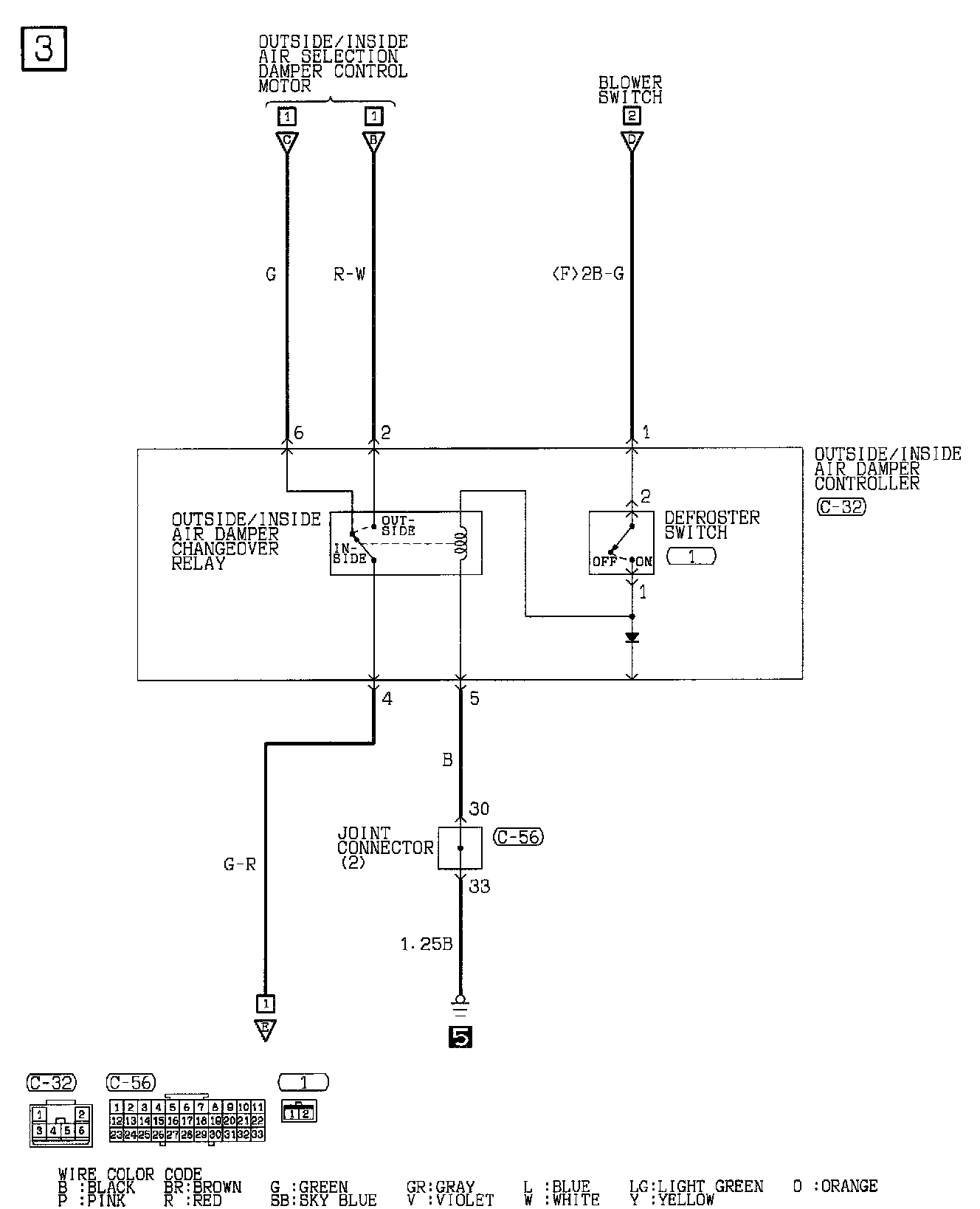

Outside/Inside Air Damper Controller
Defroster Switch
Outside/Inside Air Damper Changeover Relay
