Home >> Mitsubishi >> 1999 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Disassembly and Assembly

Disassembly and Assembly

WARNING: Do not disassemble the front seatback assembly with built-in side air bag module.

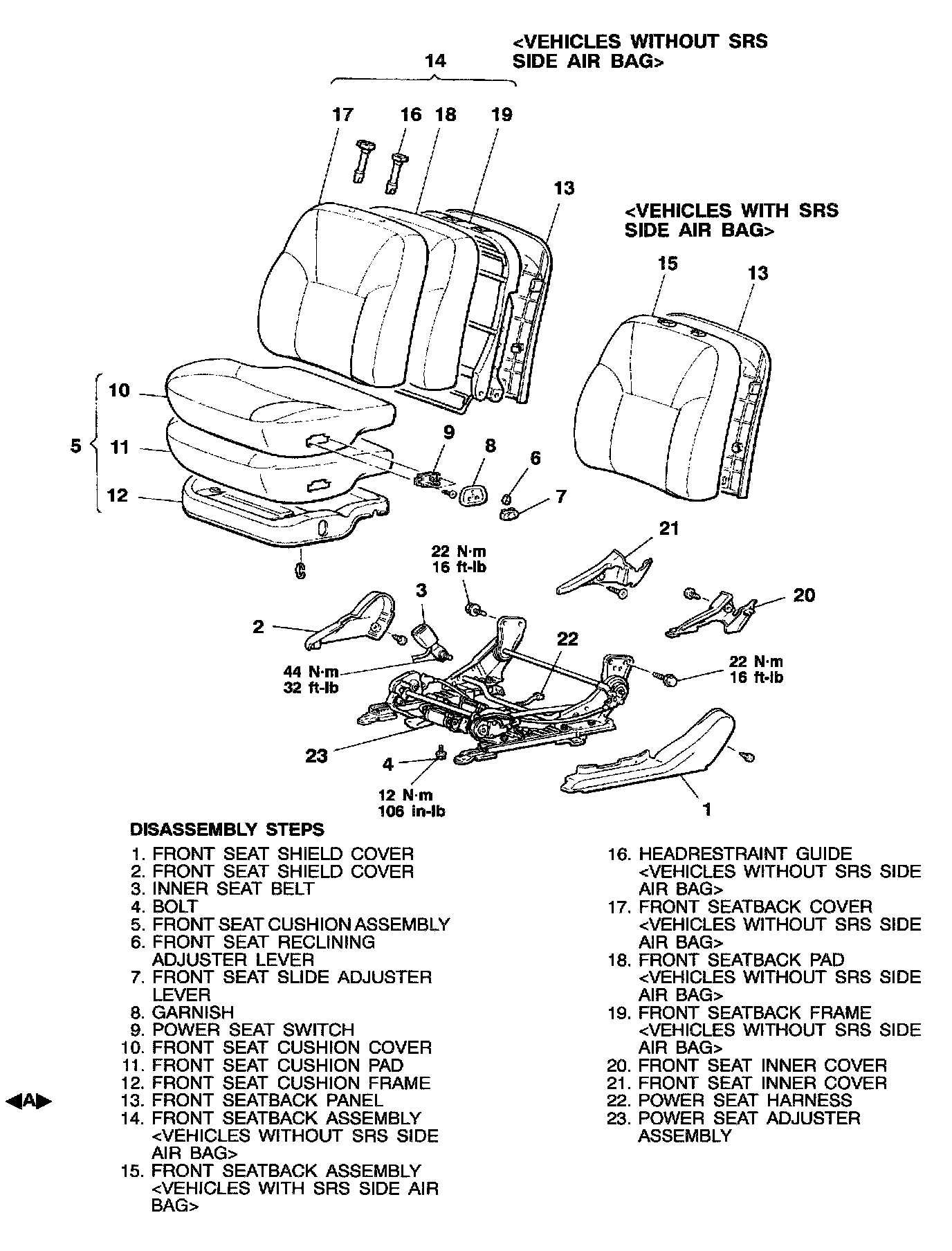

WITHOUT POWER SEAT

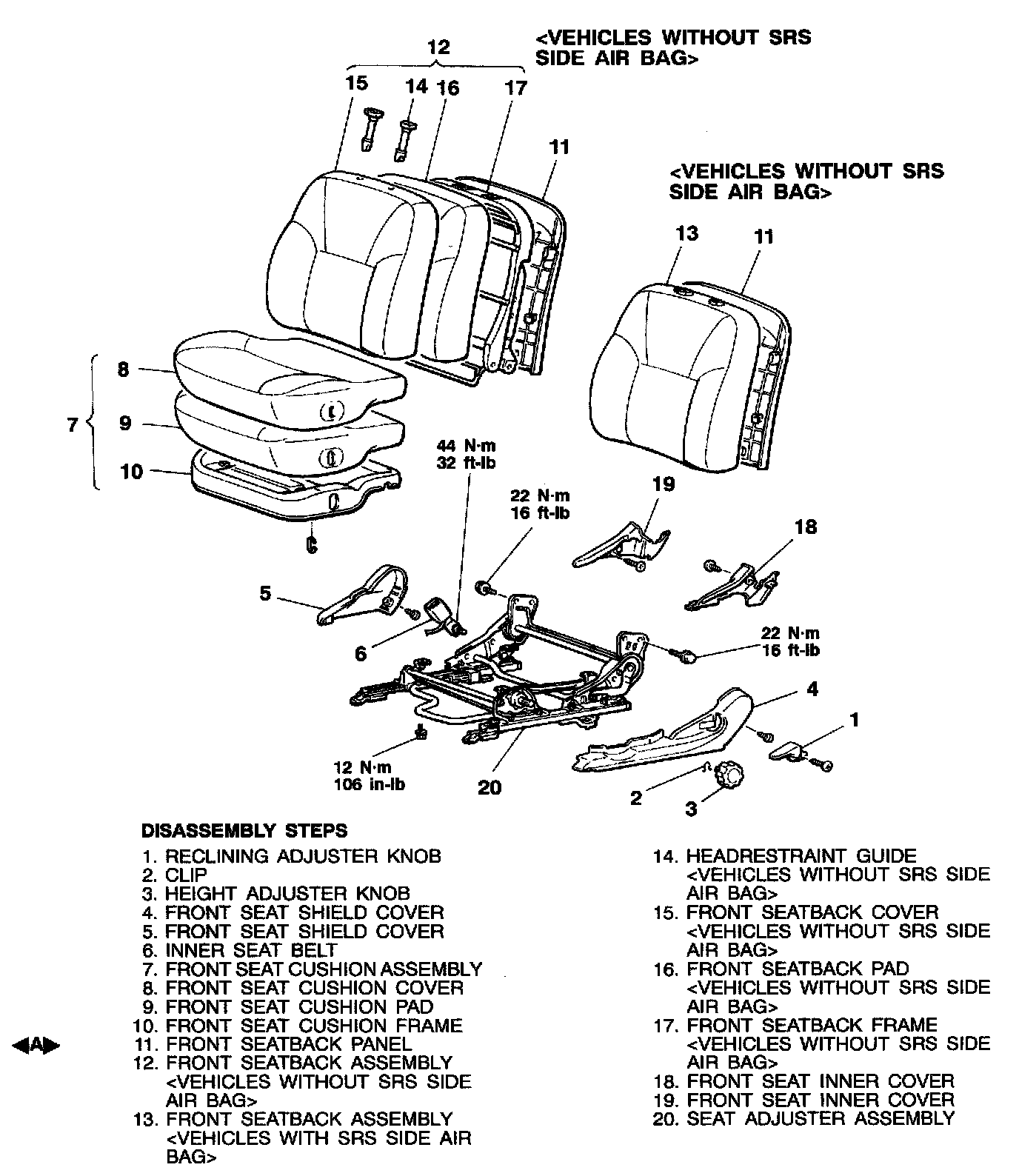

WITH POWER SEAT

DISASSEMBLY SERVICE POINT




FRONT SEATBACK PANEL REMOVAL
1. Using a screwdriver or similar tool, push inward the clip of the front seatback panel lower portion to remove it.
2. Pull down the front seatback panel to remove it.
