A/C - Performance Chart Temperature Correction
NO.: TSB-99-55-003DATE: July, 1999
MODEL: 1999 Galant
SUBJECT:
CORRECTED A/C PERFORMANCE TEMPERATURE CHART - SERVICE MANUAL REVISION
[TSB Revision TSB-99-55-003]
PURPOSE
This bulletin contains corrections to the A/C Performance Temperature Chart.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1999 Galant
AFFECTED SERVICE MANUAL
1999 Galant Service Manual, Volume 3, Page 55-20
SERVICE MANUAL REVISIONS
1999 Galant Service Manual, Volume 3, Page 55-20

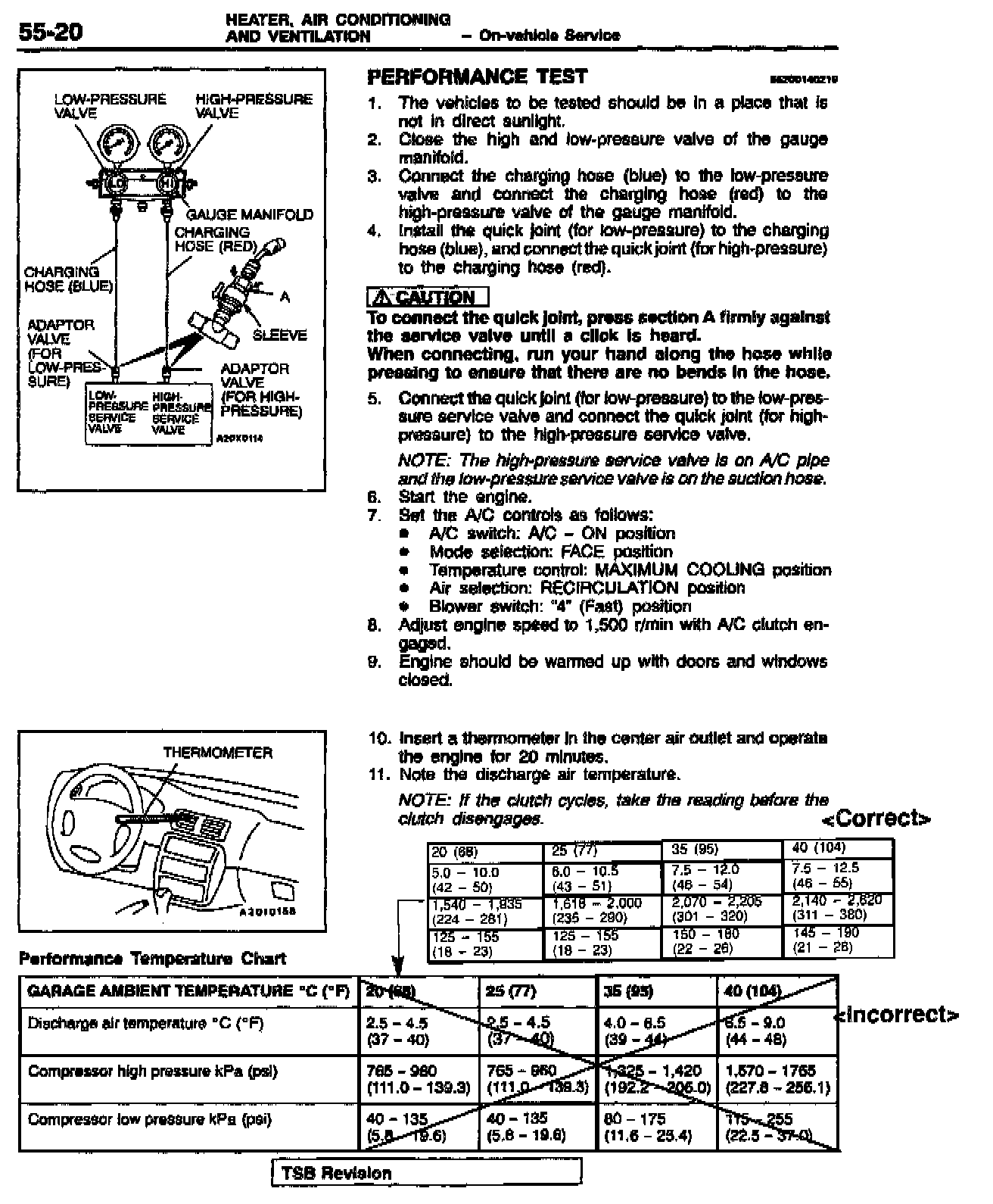

Delete the incorrect information and add the new A/C Performance Temperature Chart as shown:
