Shift Cable: Service and Repair

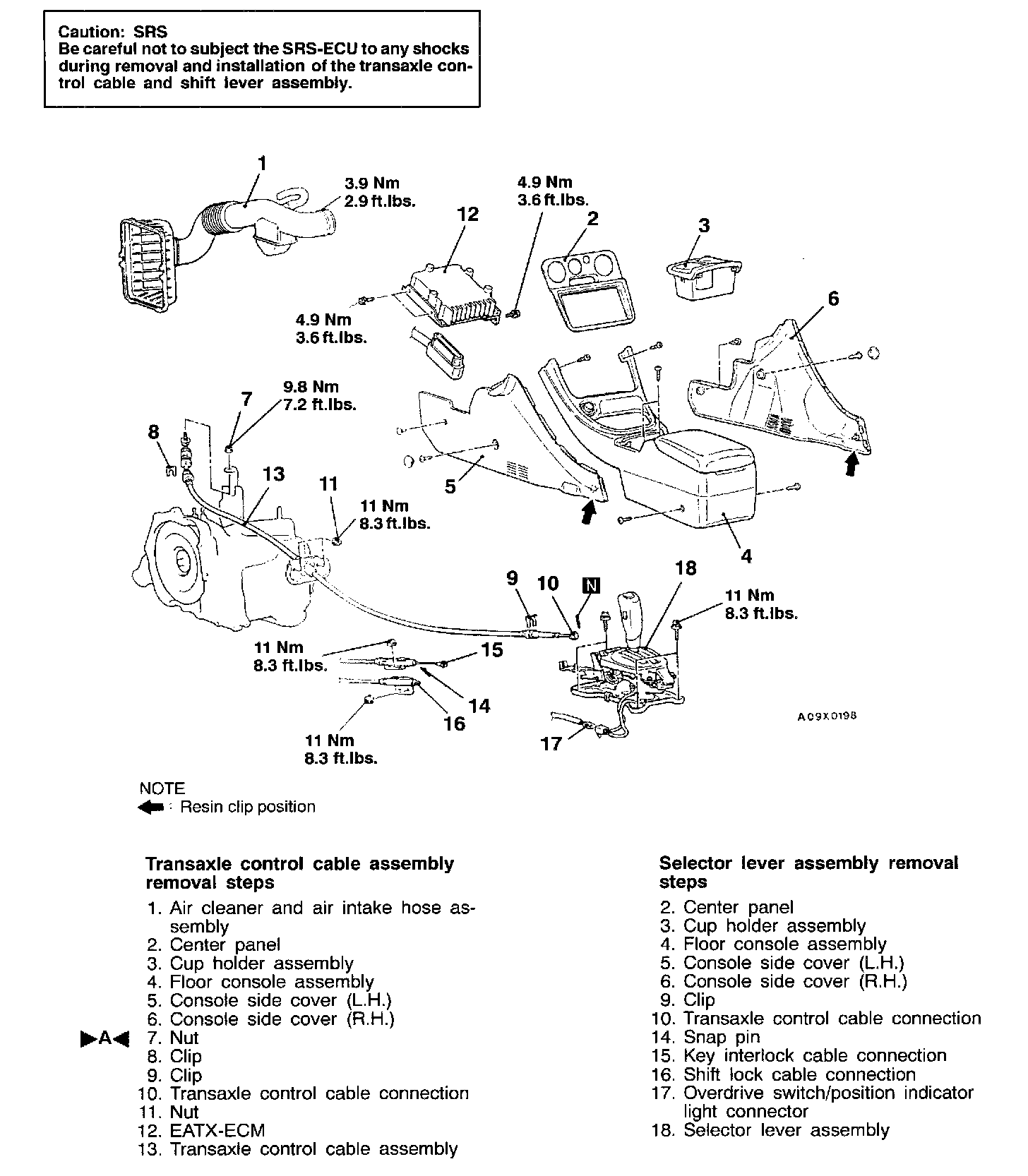

REMOVAL AND INSTALLATION

Installation Service Point

>A< Nut Installation





1. Put the selector lever in the "N" position.

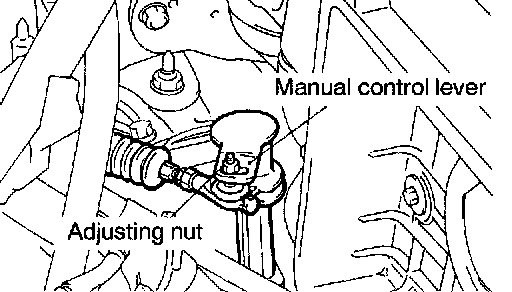

2. Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.
