Application and ID
>>
General Information
General Information
The automatic transaxle comes in one model, namely, F4AC1.

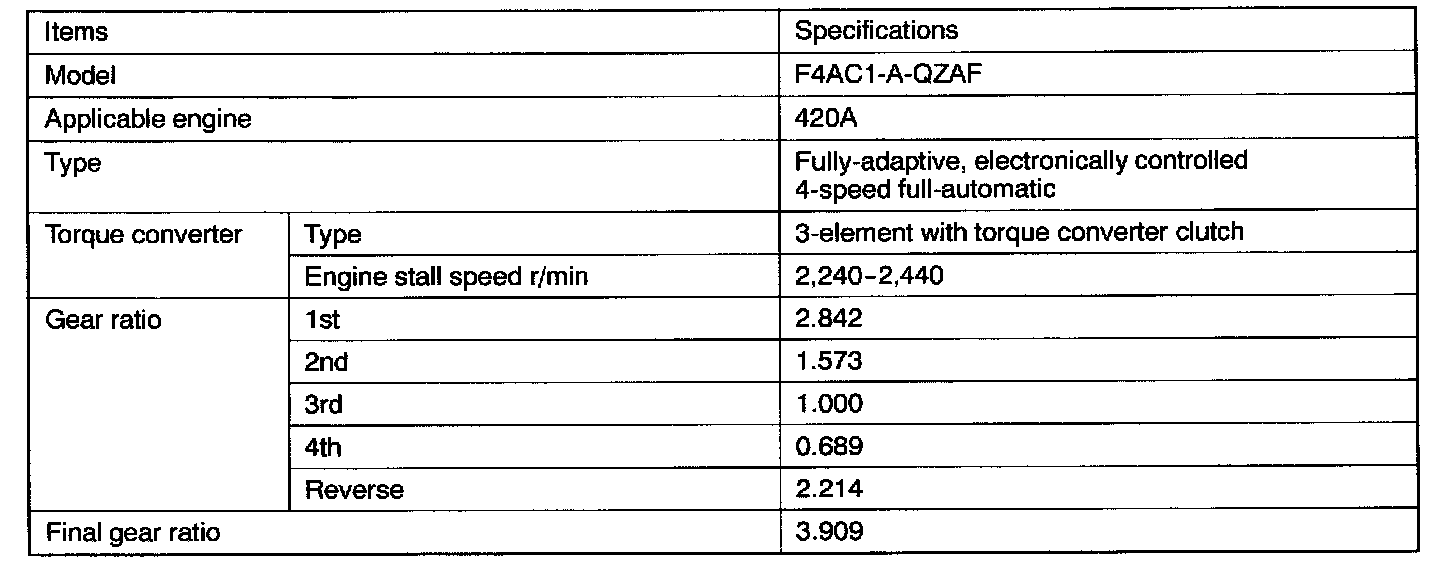

Description

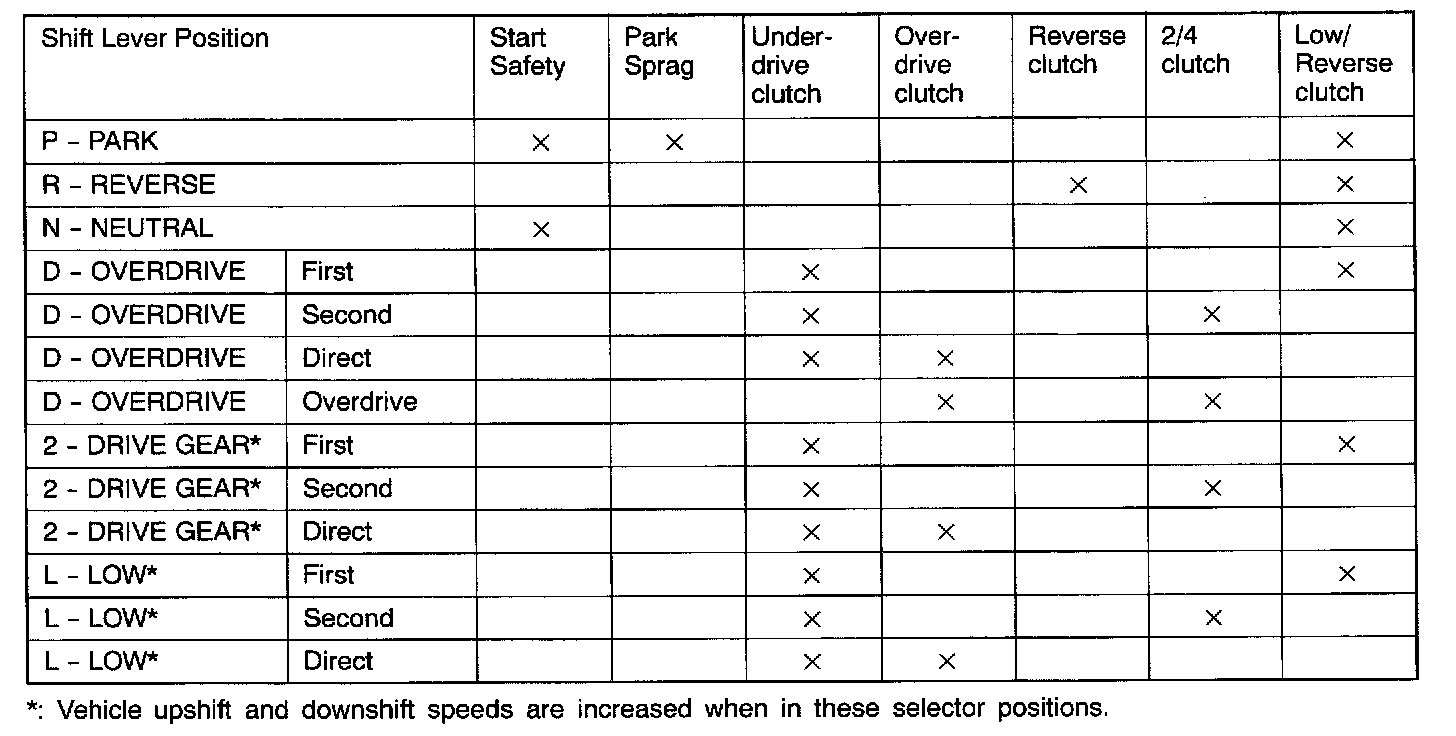

Function Element Table

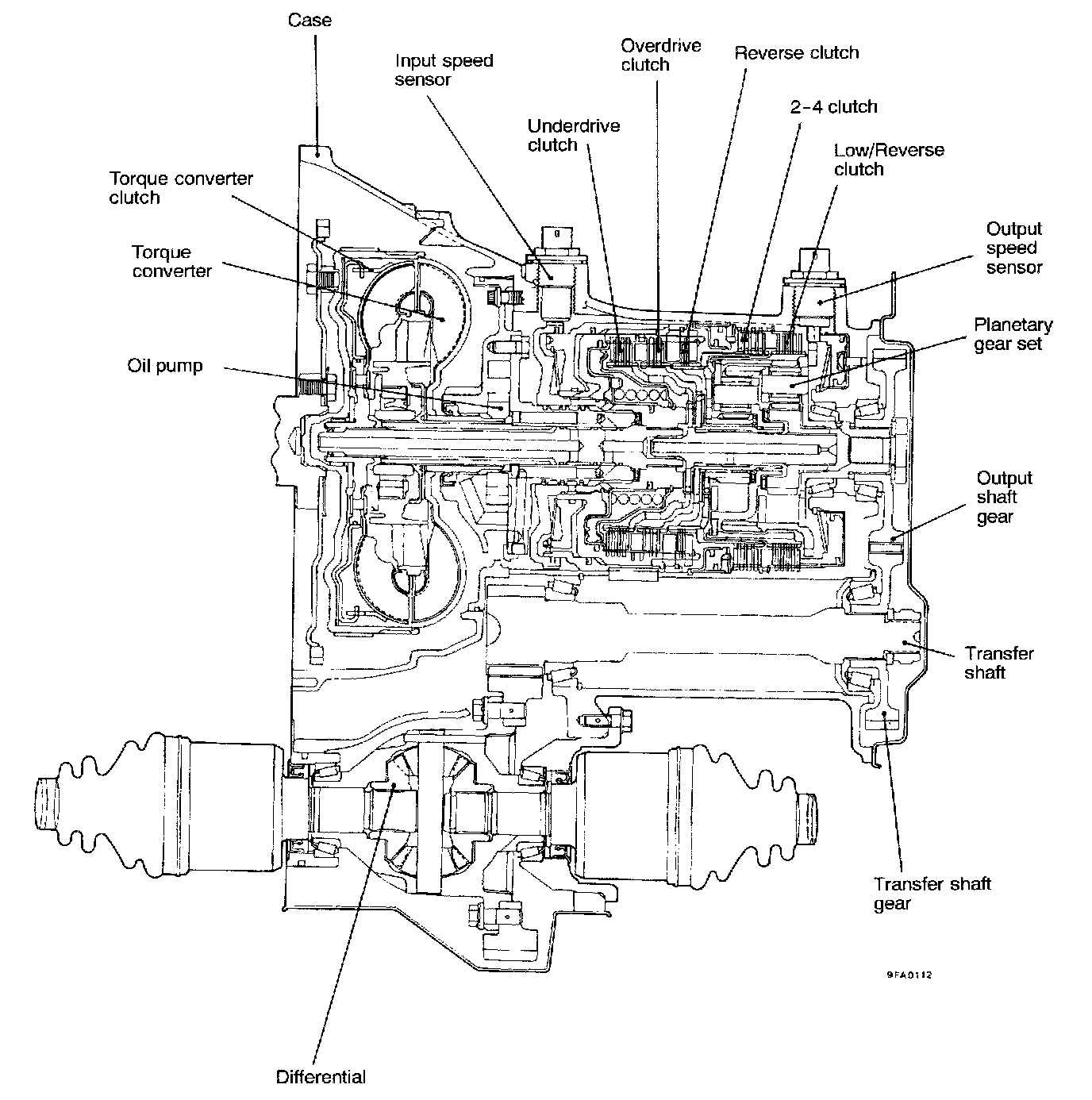

Sectional View
