Automatic Transmission/Transaxle

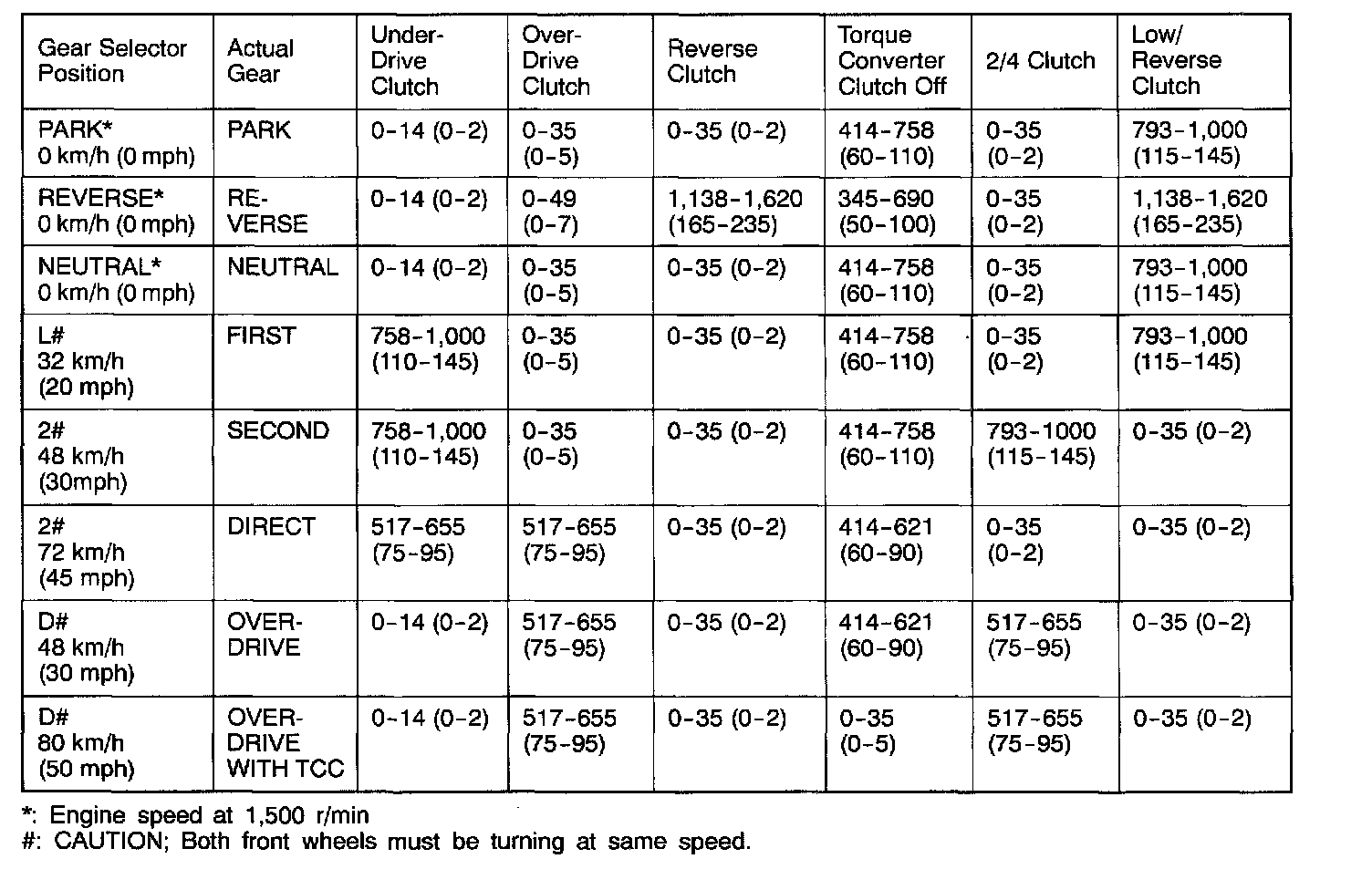

PRESSURE CHECK SPECIFICATIONS





PRESSURE TAP ORDER ON CASE FROM BELLHOUSING TO END COVER
ALL PRESSURE SPECIFICATIONS ARE kPa (psi) [on hoist, with front wheels free to turn]
