Radiator Cooling Fan Motor Relay: Testing and Inspection
INSPECTION

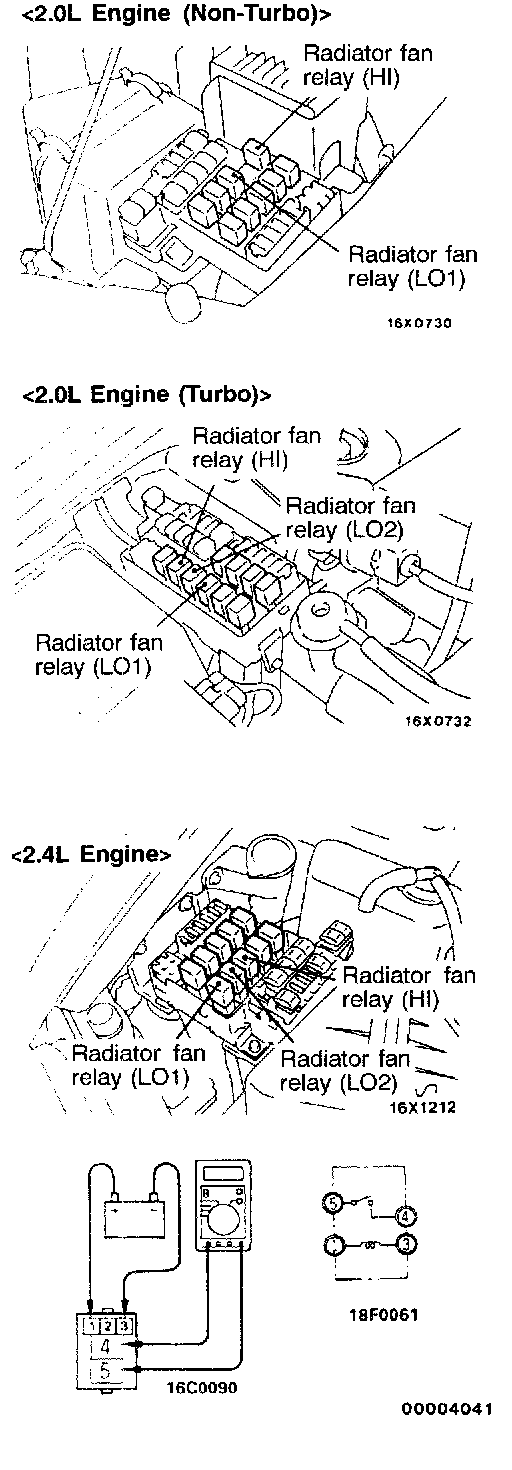

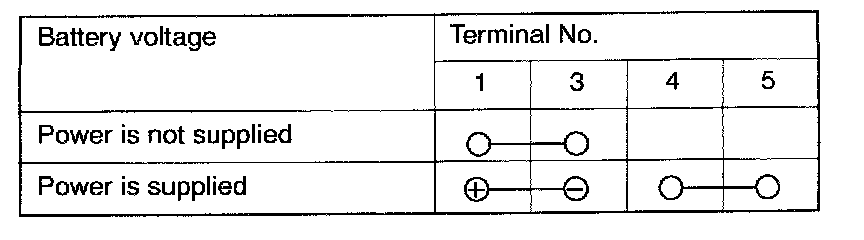

Radiator Fan Relay Continuity Check
