Home >> Mitsubishi >> 1999 >> Eclipse RS L4-1997cc 2.0L DOHC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Relay >> Testing and Inspection

Blower Motor Relay: Testing and Inspection

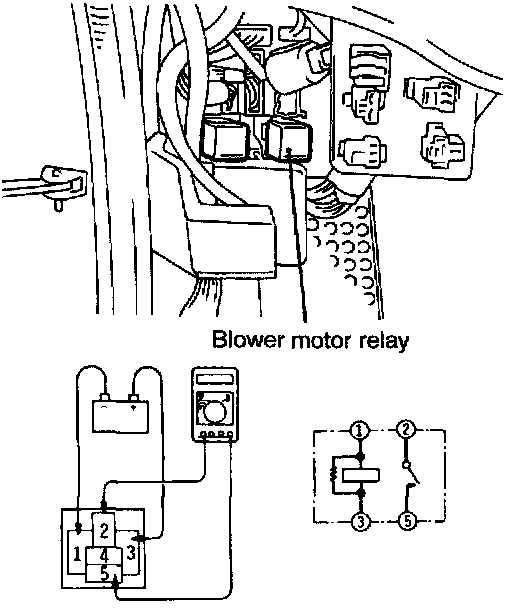

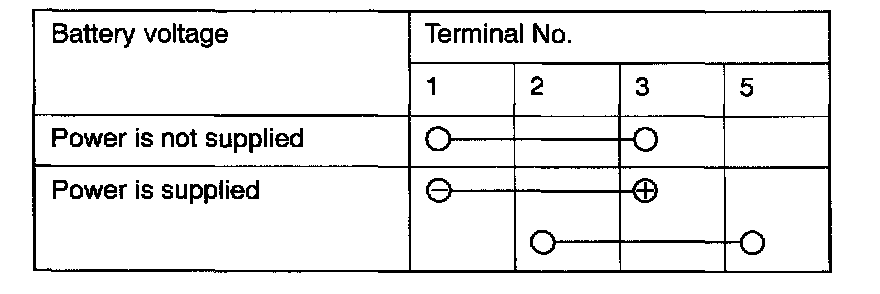

BLOWER MOTOR RELAY CONTINUITY CHECK
