Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Drive/Propeller Shafts, Bearings and Joints
>>
System Specifications
System Specifications

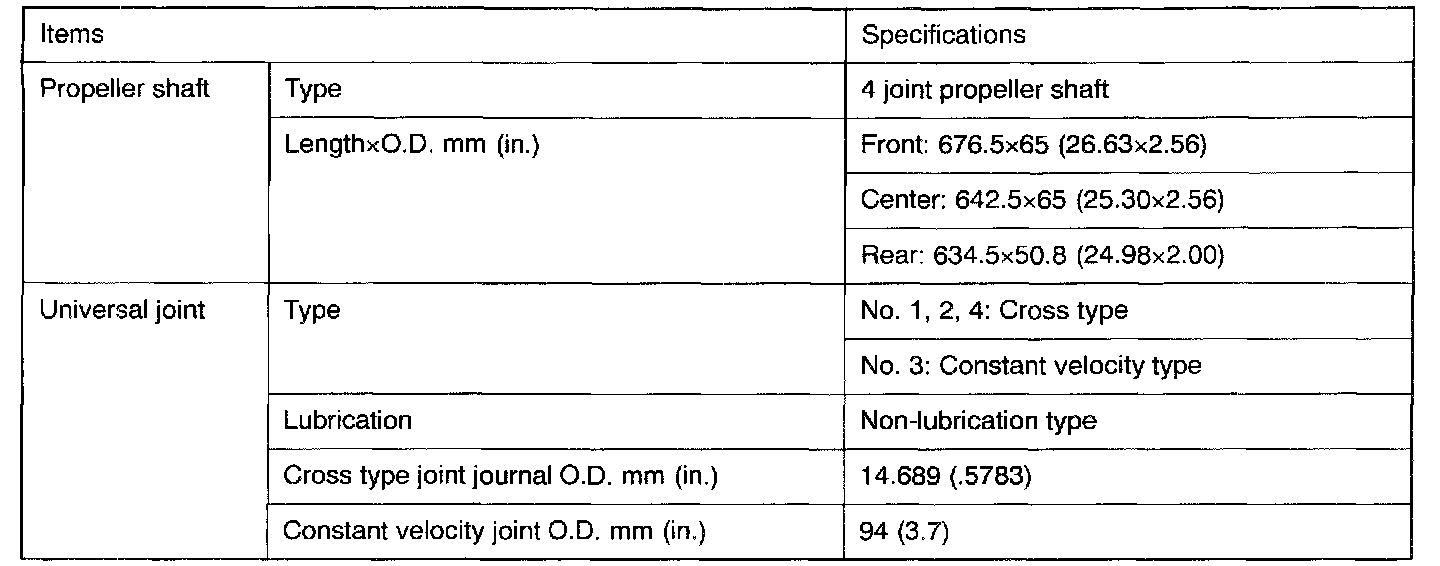

GENERAL SPECIFICATIONS
NOTE:
Propeller shaft length indicates the length center points of each joint.

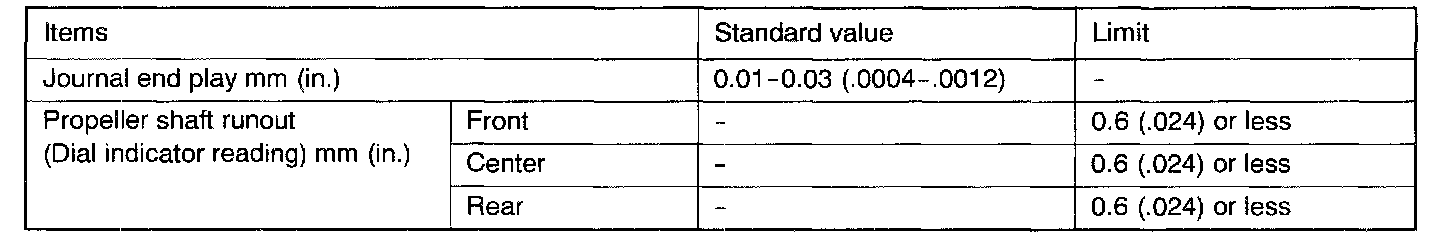

SERVICE SPECIFICATIONS
