Fluid - Differential: Testing and Inspection

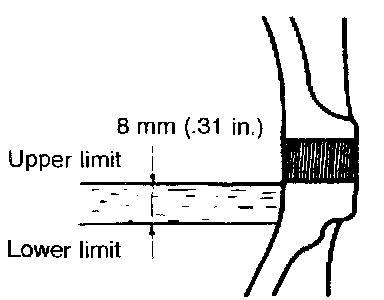

GEAR OIL LEVEL CHECK





1. Remove the filler plug, and check the oil level.
2. The oil level is sufficient if it reaches the filler plug hole.

Specified gear oil: API classification GL-5 or higher [0.8 dM3 (0.85 quart)]

NOTE:
Over -23°C (-10°F): SAE 90, 85W-90, 80W-90
From -34°C (-30°F)to -23°C (-10°F): SAE 80W, 80W-90
Under -34°C (-30°F): SAE 75W
