Oil Pump

DISASSEMBLY AND REASSEMBLY

Disassembly Service Points

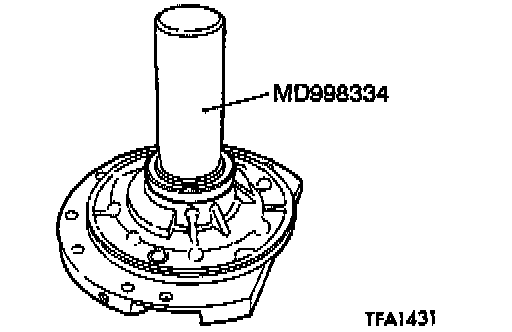

>A< Oil Seal Installation

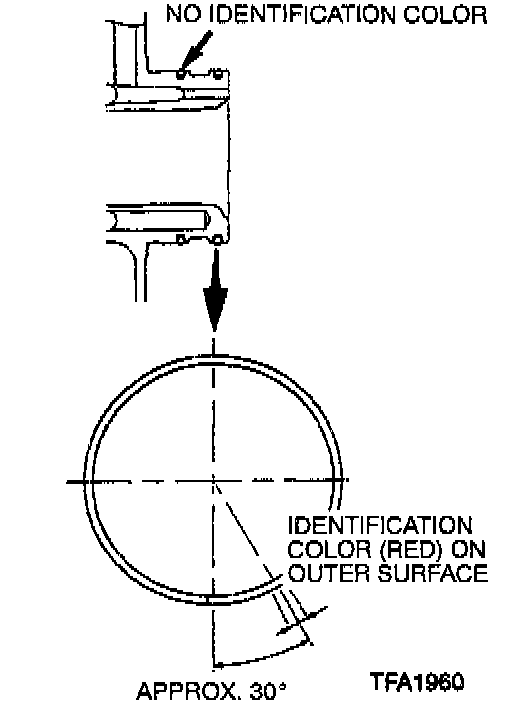

>B< Seal Ring Installation





CAUTION: There are two types of seal rings, with and without identification color. Be sure to install them to their correct positions.

>C< O-Ring Installation
Install a new O-ring to the outer groove of the oil pump, and apply ATF, blue petrolatum jelly or white Vaseline to the outer inside diameter of the O-ring.
