Component Tests and General Diagnostics

IGNITION SWITCH CONTINUITY CHECK

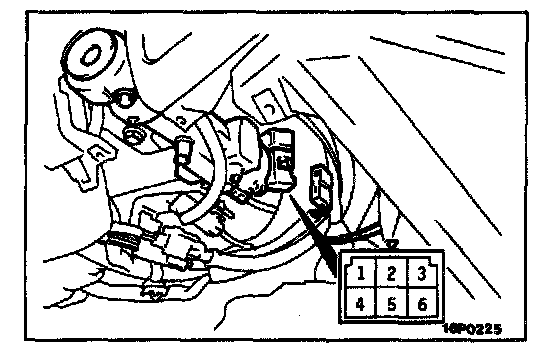

1. Remove the instrument under cover.
2. Disconnect the wiring connector from the ignition switch and connect an ohmmeter to the switch side connector.

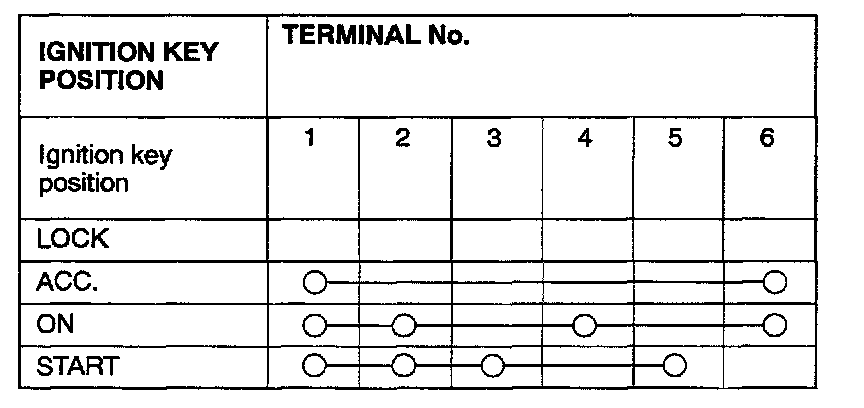

Continuity Test:

3. Operate the ignition switch and check the continuity.
