Rectangular Waterproof Connector

Foreword:
Connector which gives loose engagement shall be rectified by removing female terminal from connector housing and raise its lance to establish securer engagement. Removal of connector terminal used for MFI and ELC-4 A/T control circuit shall be done in the following manner.

Rectangular Waterproof Connector:

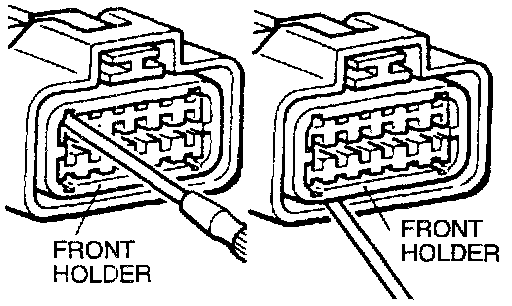

1. Disengage front holder by using a screwdriver and remove it.

Rectangular Waterproof Connector:

2. Insert tip of screwdriver [*0.8 mm (0.03 in.) width] into connector in a manner as shown in the figure, push it lightly to raise housing lance and pull out harness.

*If right size screwdriver is not available, convert a conventional driver to suit the size.

Rectangular Waterproof Connector:

3 .Press contact point of male terminal down by holding a screwdriver [1.4 mm (0.06 in.) width] in a manner as shown in the figure.
