Home >> Mitsubishi >> 1999 >> Diamante Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Testing and Inspection

Heated Glass Element Relay: Testing and Inspection

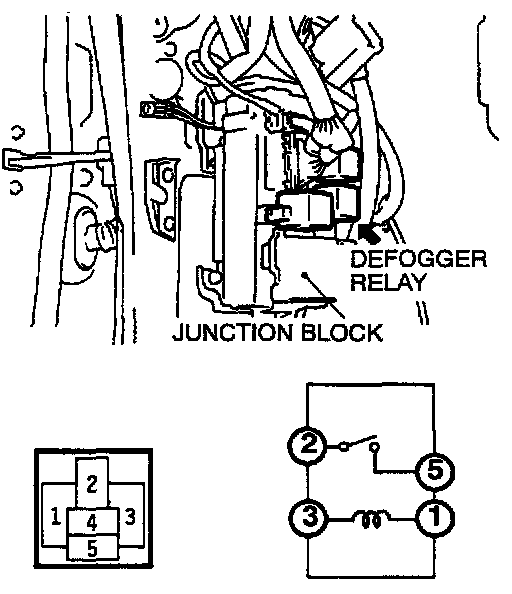

Location/Relay Diagram:

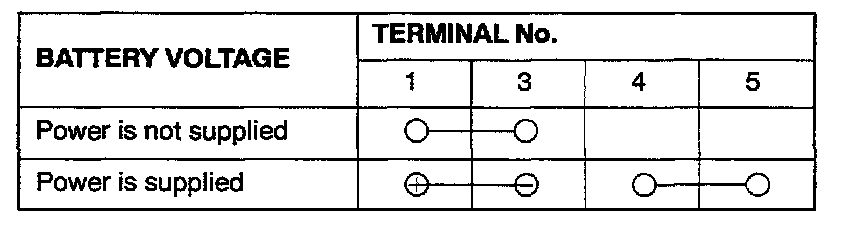

Continuity Test:




DEFOGGER RELAY CONTINUITY CHECK
