Component Inspection

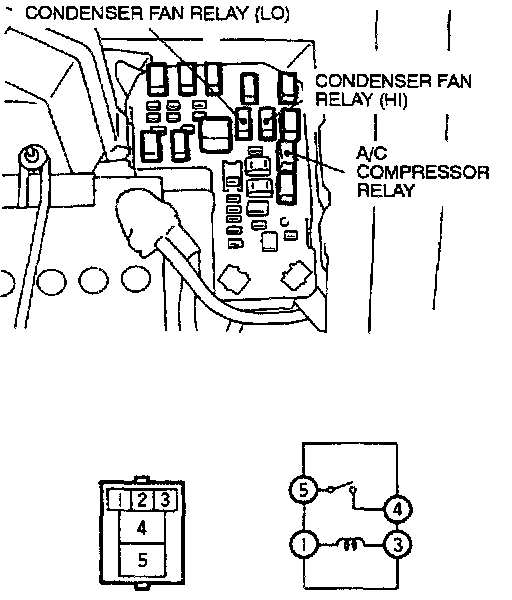

Location/Connector View:

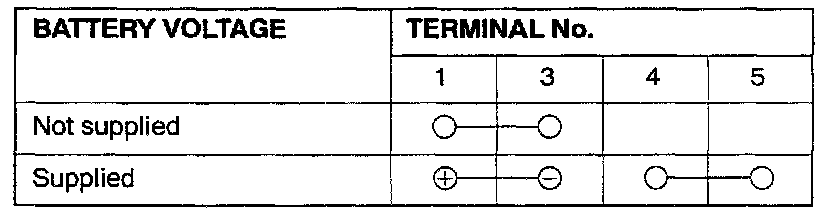

Continuity Test:




A/C COMPRESSOR CLUTCH RELAY, CONDENSER FAN RELAY (LO) AND (HI) TEST
