Diagnosis Using 'N' Range Light

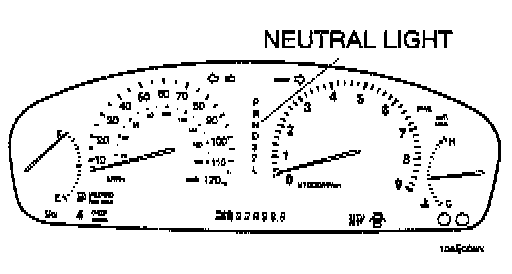

DIAGNOSIS FUNCTIONN (Neutral) Range Light
The N range light flashes at a frequency of approximately 1 Hz (once per second) if there is an abnormality in any of the items in the table below which are related to the A/T system. Check for diagnostic trouble codes if the N range light is flashing at a frequency of approximately 1 Hz.
N Range Light Flashing Items
CAUTION: If the N range light is flashing at a frequency of approximately 2 Hz (two flashes per second), it means that the automatic transmission fluid temperature is too high. Stop the vehicle in a safe place and wait until the N range light switches off.
