Electrical Diagrams

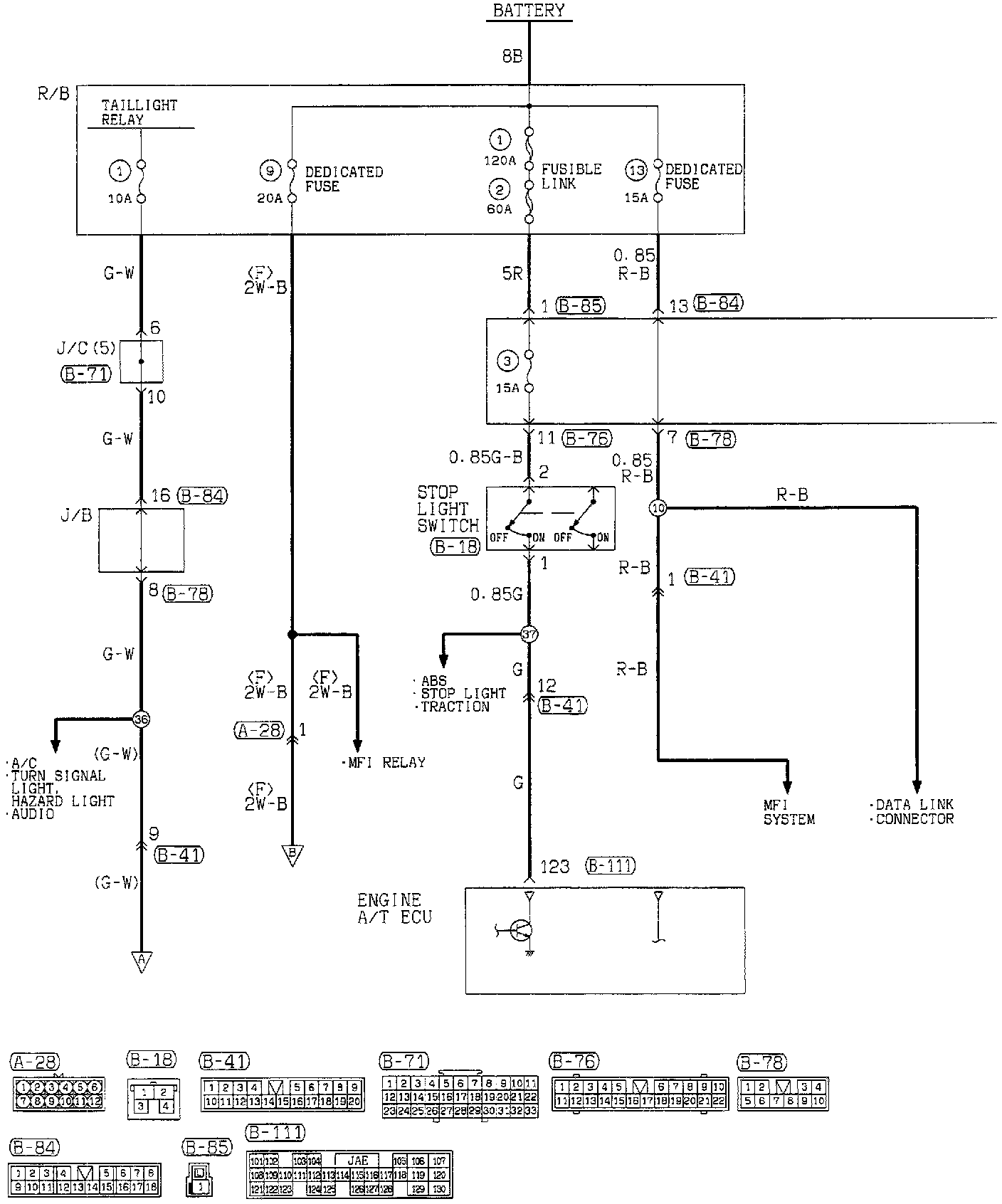

ELC 4-Speed Automatic Transaxle (Part 1 Of 6):

Engine A/T ECU
J/B
J/C (5)
R/B
Stop Light Switch

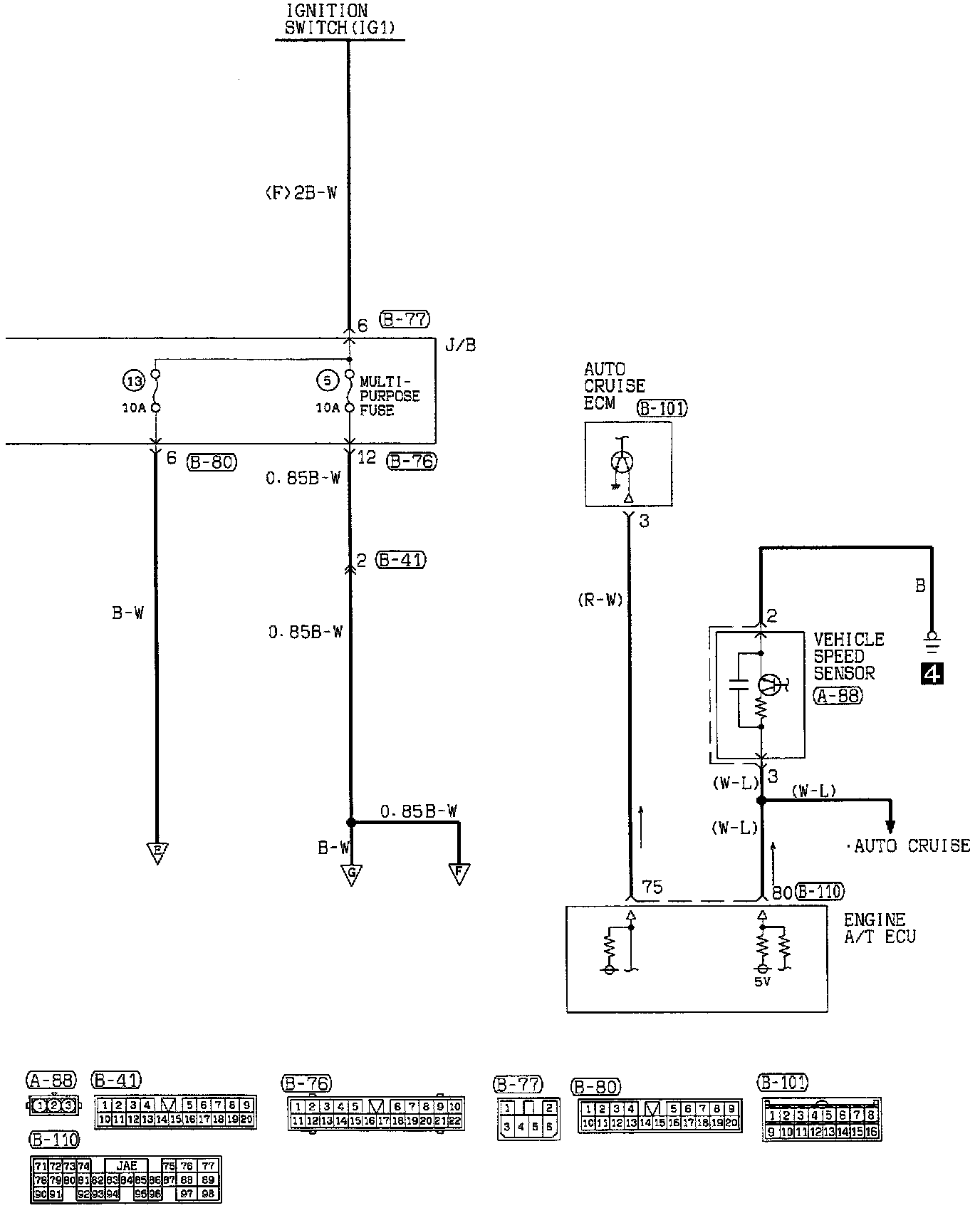

ELC 4-Speed Automatic Transaxle (Part 2 Of 6):

Auto Cruise ECM
Engine A/T ECU
J/B
Vehicle Speed Sensor

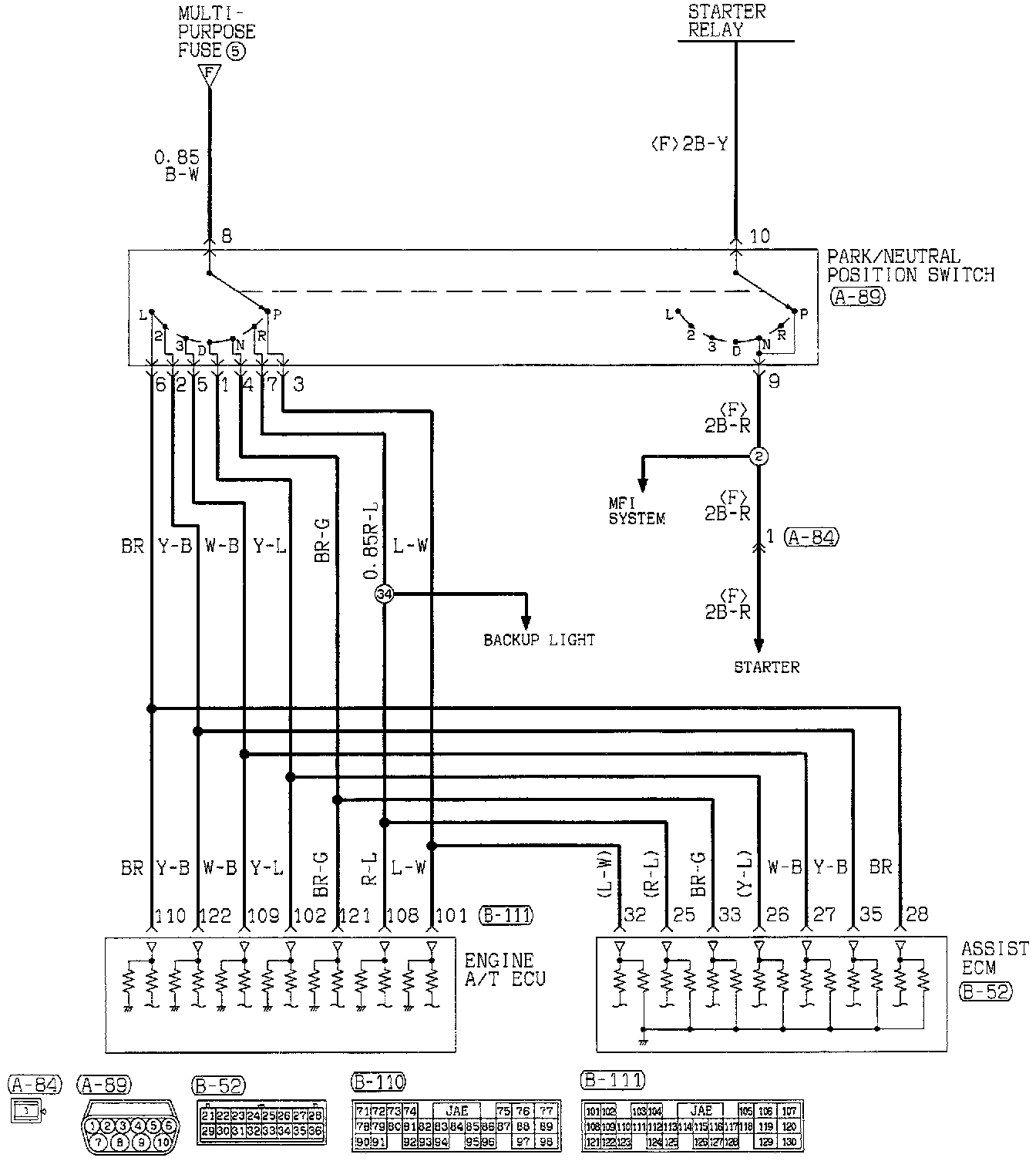

ELC 4-Speed Automatic Transaxle (Part 3 Of 6):

Assist ECM
Engine A/T ECU
Park/Neutral Position Switch

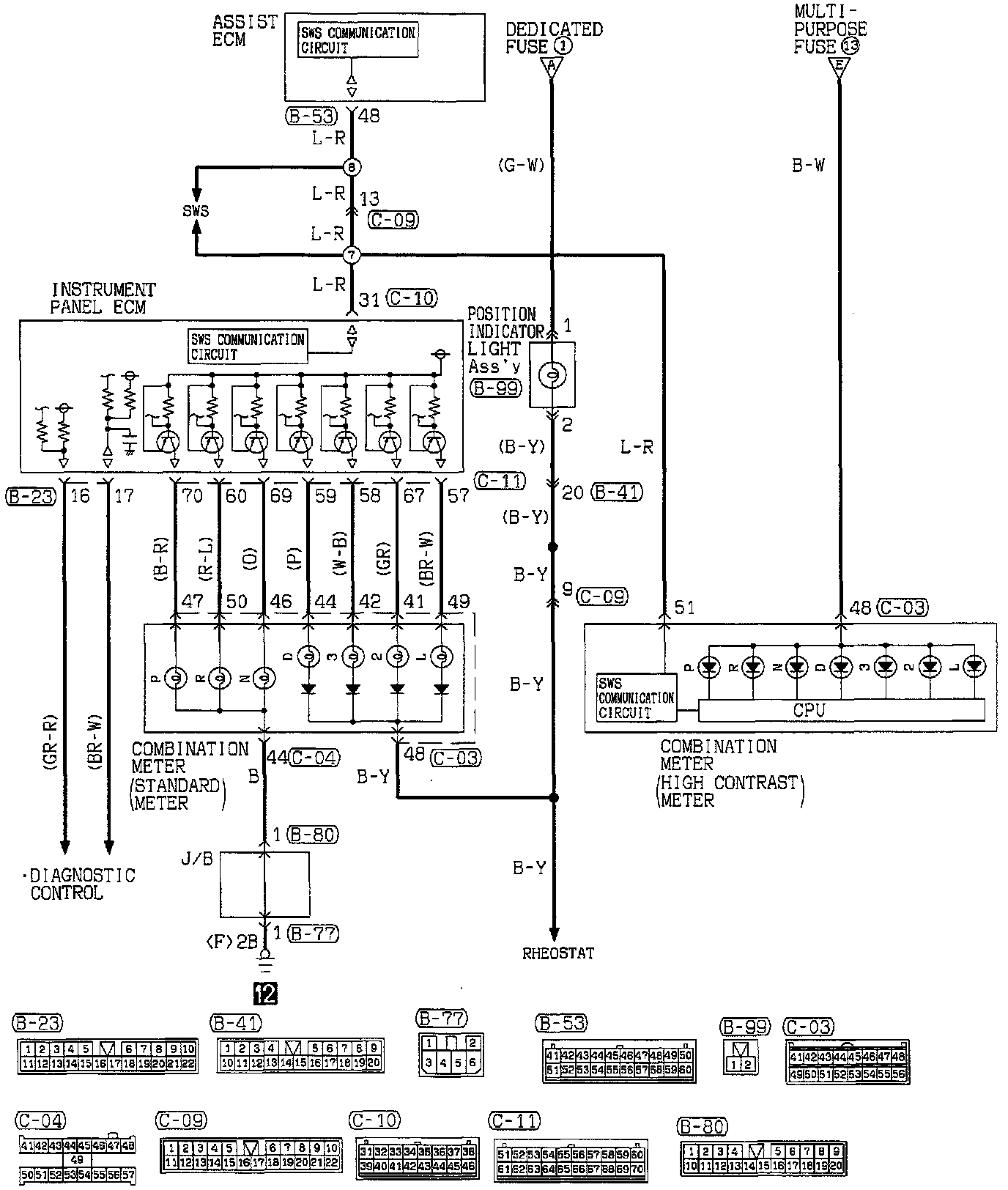

ELC 4-Speed Automatic Transaxle (Part 4 Of 6):

Assist ECM
Combination Meter (High Contrast Meter)
Combination Meter (Standard Meter)
Instrument Panel ECM
J/B
Position Indicator Light Assembly

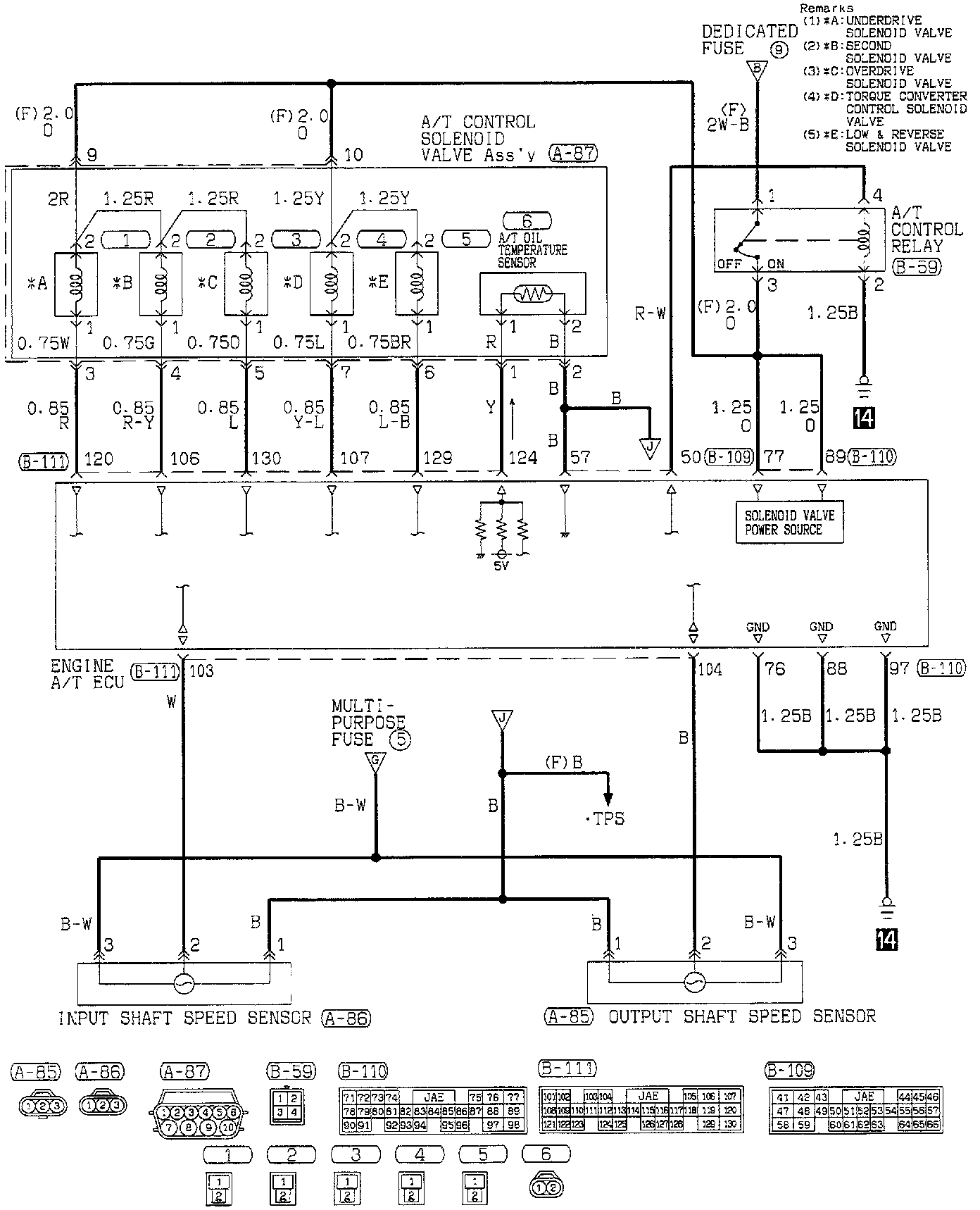

ELC 4-Speed Automatic Transaxle (Part 5 Of 6):

A/T Control Relay
A/T Control Solenoid Assembly
- A/T Oil Temperature Sensor
Engine A/T ECU
Input Shaft Speed Sensor
Output Shaft Speed Sensor

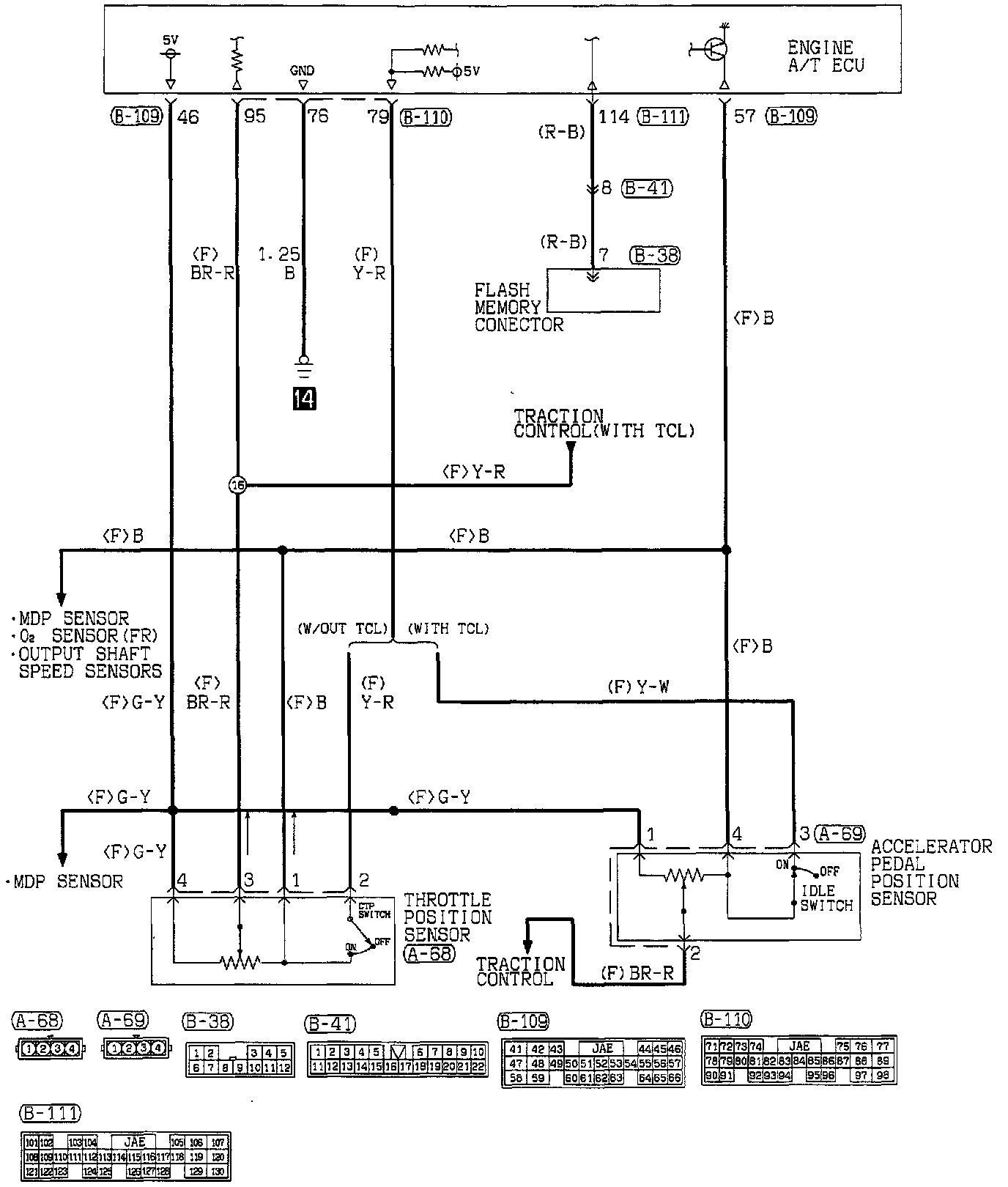

ELC 4-Speed Automatic Transaxle (Part 6 Of 6):

Accelerator Pedal Position Sensor
Engine A/T ECU
Throttle Position Sensor
