Component Inspection

IGNITION COIL CHECK

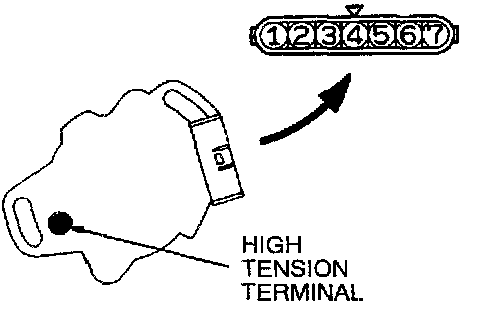

1. Measurement of the primary coil resistance Measure the resistance between connector terminal 1 and 4 of the distributor.
Standard value: 0.5 - 0.7 Ohms
2. Measurement of secondary coil resistance
Measure the resistance between the voltage terminals and connect terminals 1 or 4.
Standard value: 9 - 13 k Ohms
