Scan Tool Test Index

Items 11 - 41:

Items 44 - 95:

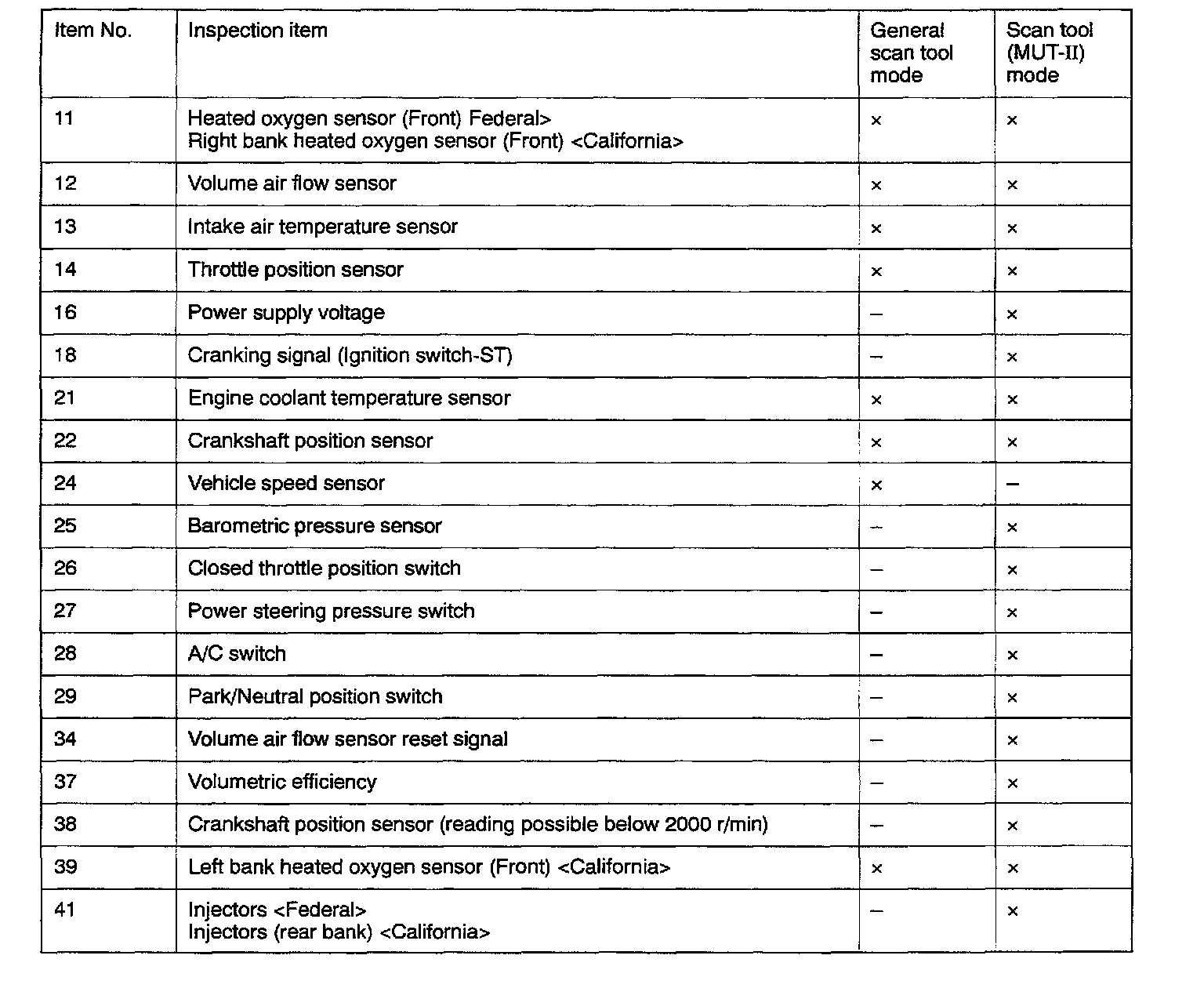

SERVICE DATA REFERENCE TABLE
The scan tool (MUT-II) has two operation modes: the general scan mode and the scan tool (MUT-II) mode.
The service data which can be read in either mode is shown in the table below.

CAUTION: When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.

CAUTION: Driving tests always need another personnel.
