Power Steering Line/Hose: Service and Repair

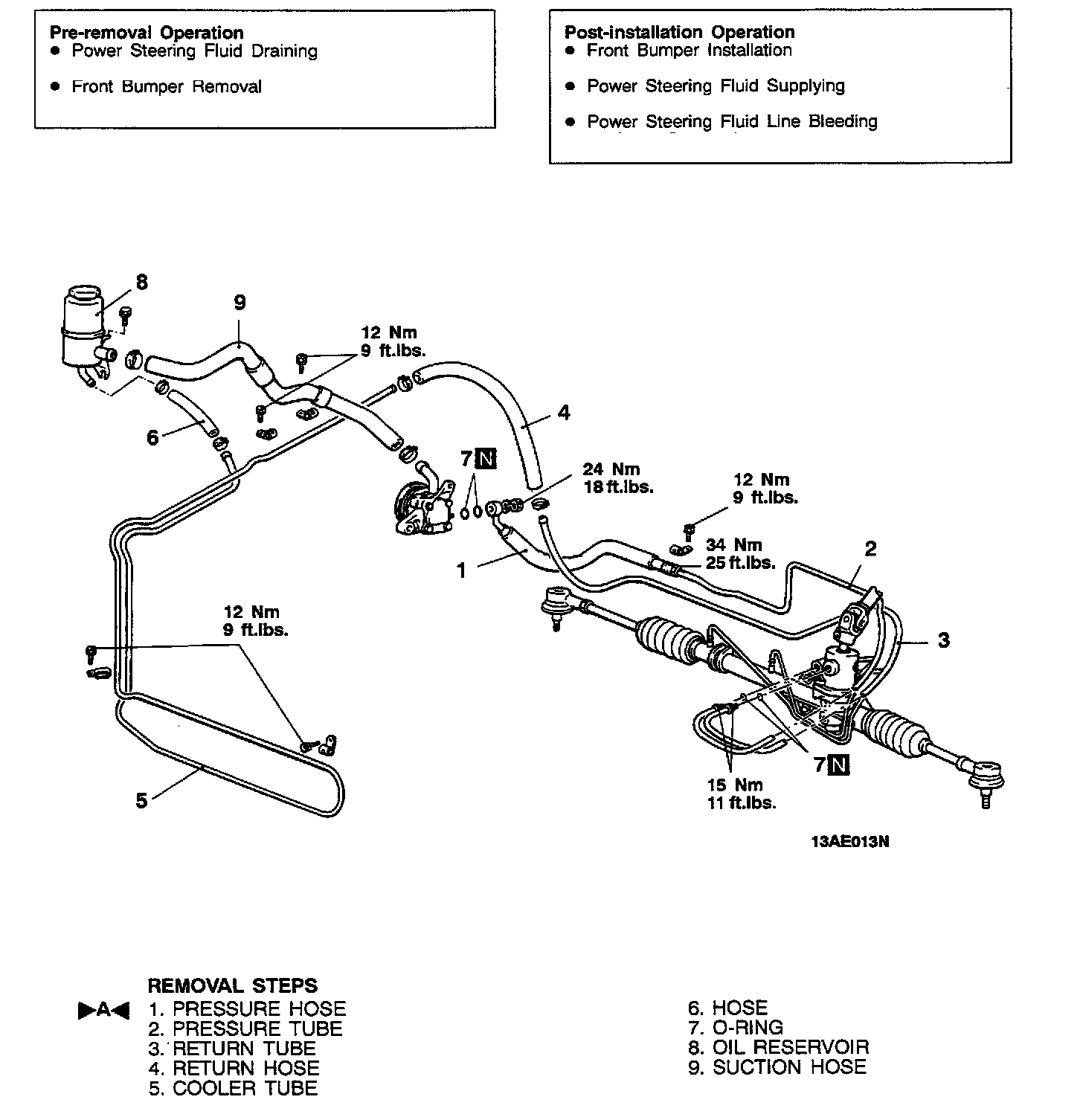

REMOVAL AND INSTALLATION
Installation Service Point
Pressure Hose Installation





1. Connect the pressure hose so that its slot section contacts the oil pump's guide bracket.

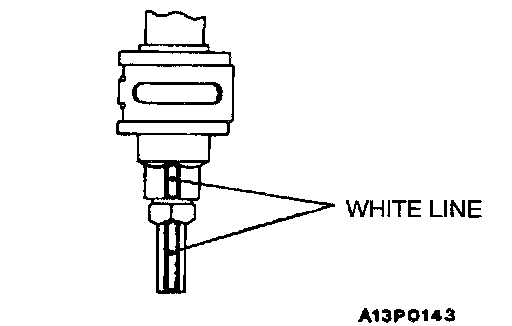

2. When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.
