Pinout Values and Diagnostic Parameters

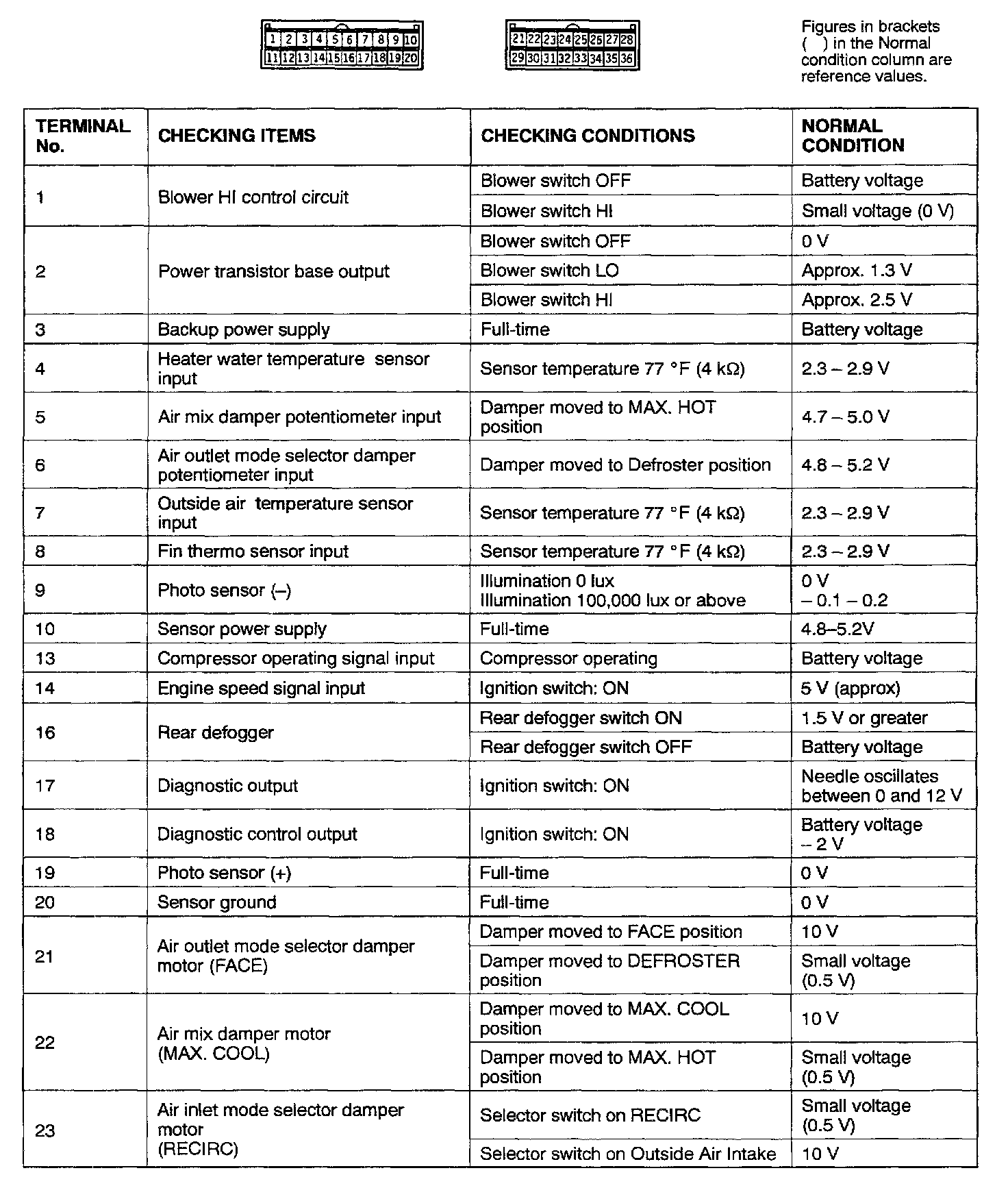

Connector View/Pinout Values Part 1 Of 2:

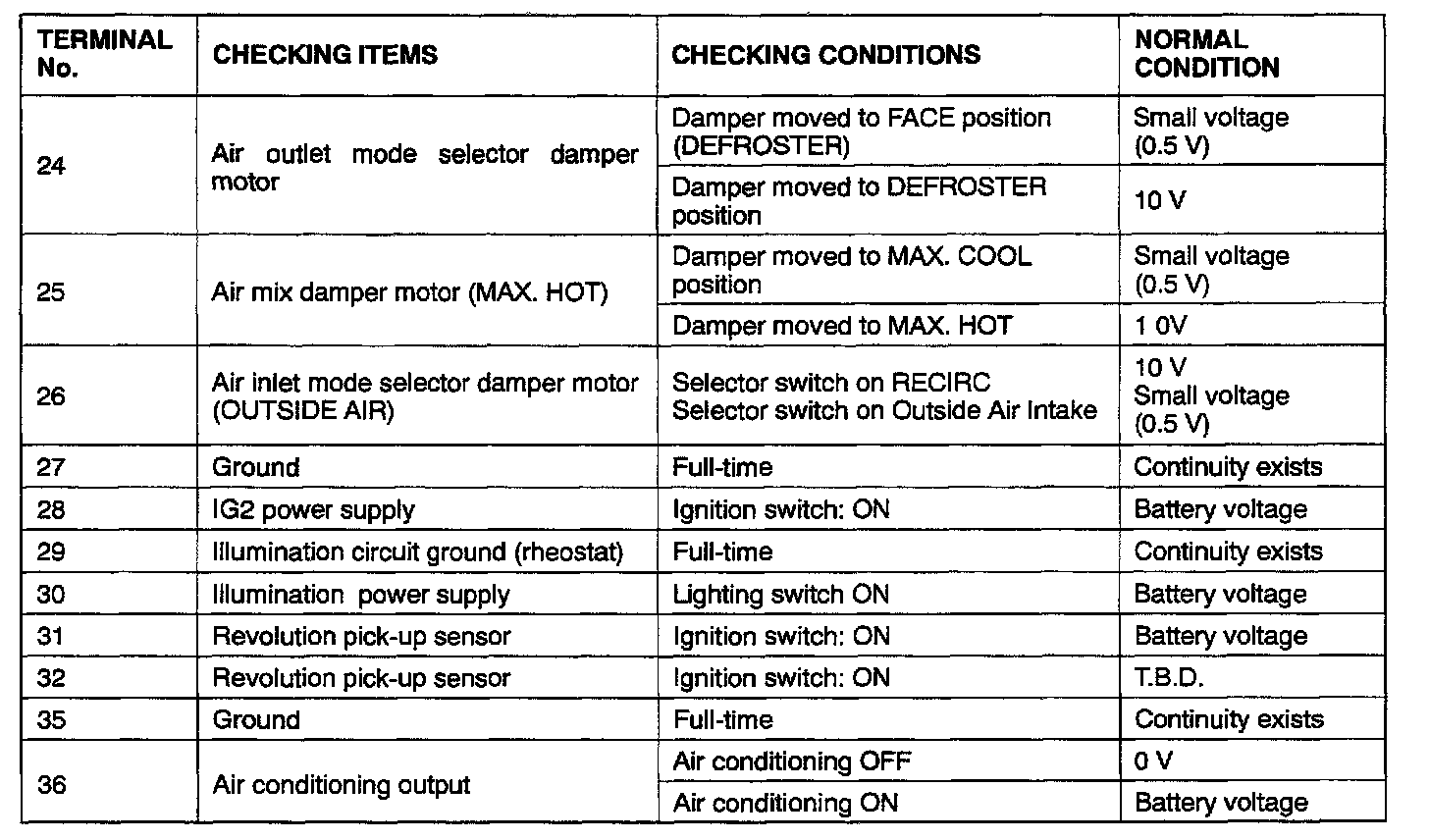

Pinout Values Part 2 Of 2:




CHECK AT THE A/C-ECU TERMINALS
