Diamante Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Assembly
Transmission Assembly

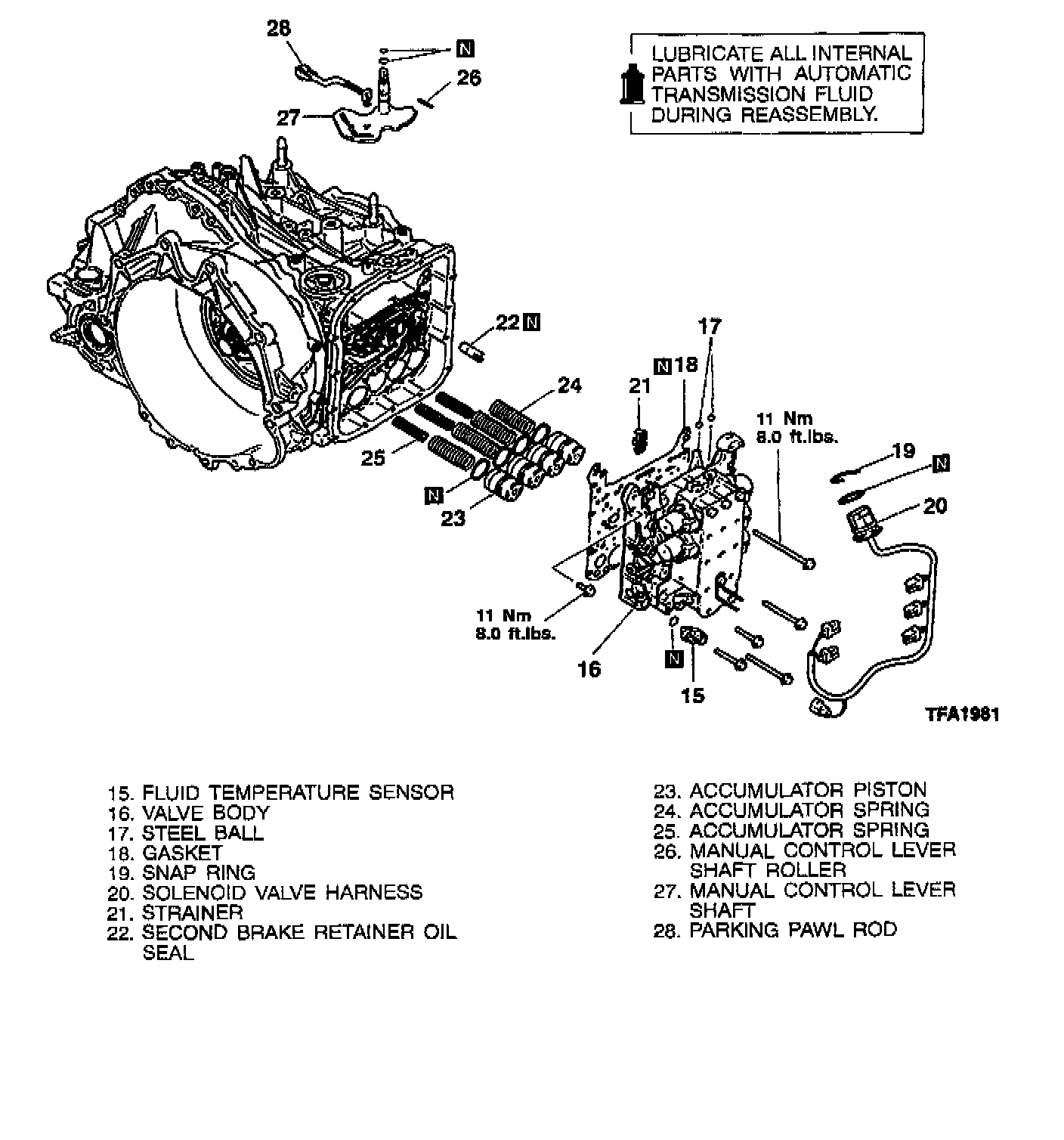

TRANSAXLE OVERHAUL W/ RELATED COMPONENTS
