Windows

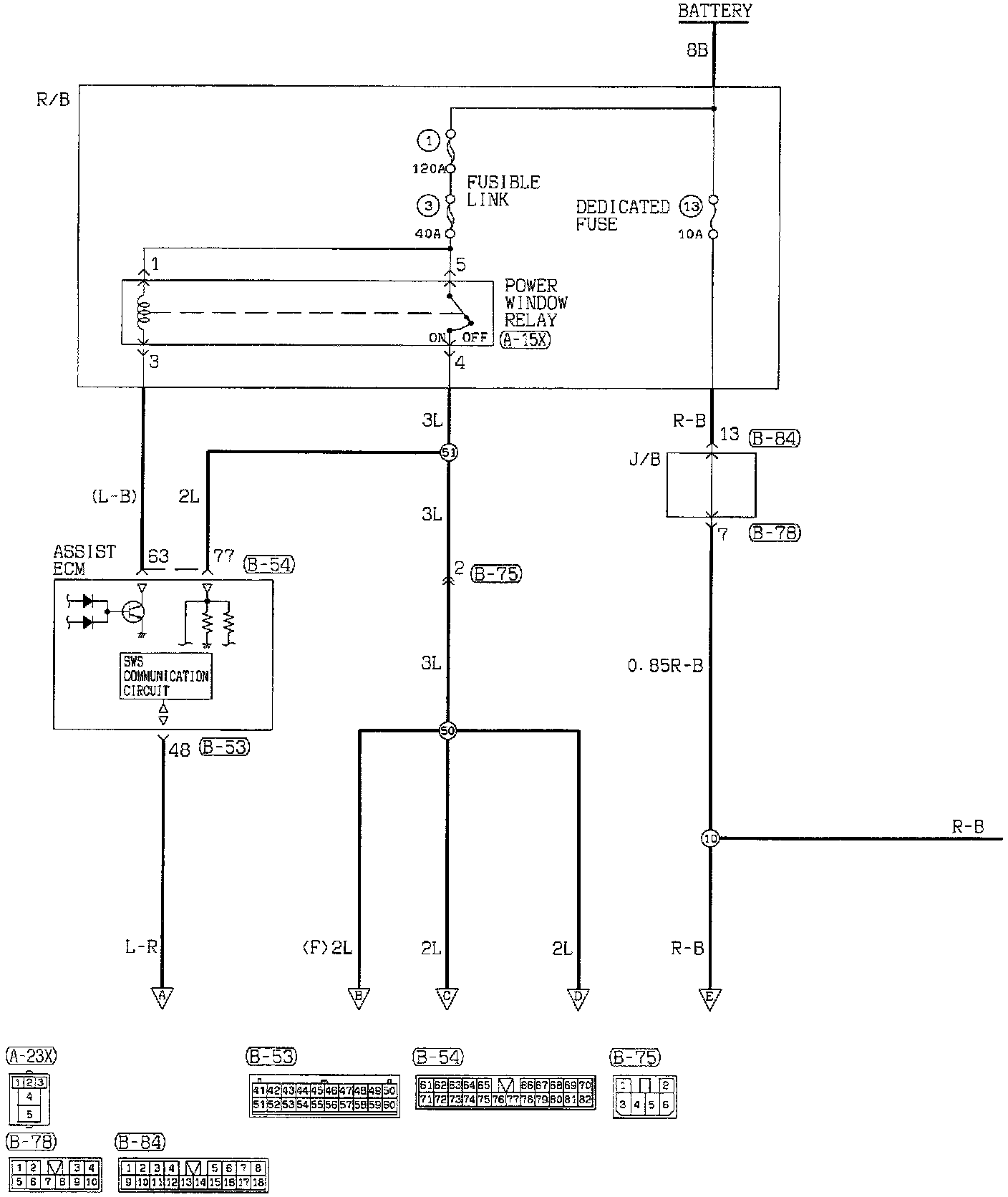

Power Window (Part 1 Of 7):

Assist ECM
J/B
R/B
- Power Window Relay

Power Window (Part 2 Of 7):

Datalink Connector
Front Door Switch (DR)
Instrument Panel ECM
J/B
- ETACS_ECU
Keyless Entry Transmitter
Receiver

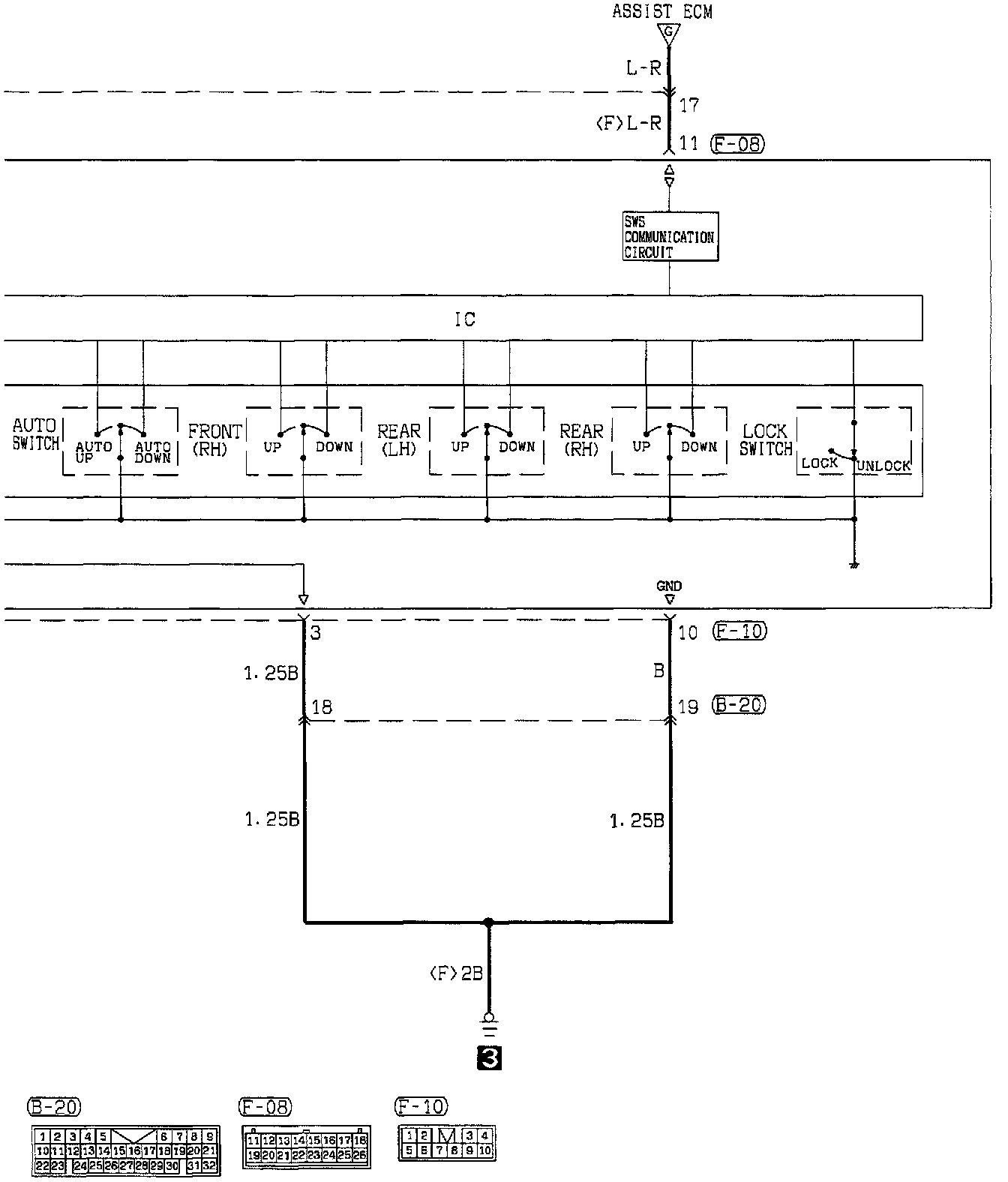

Power Window (Part 3 Of 7):

Front Door Module (DR)
- IC
- Power Window Main Switch
Power Window Motor Assembly (Front: LH)

Power Window (Part 4 Of 7):

Front Door Module (DR)

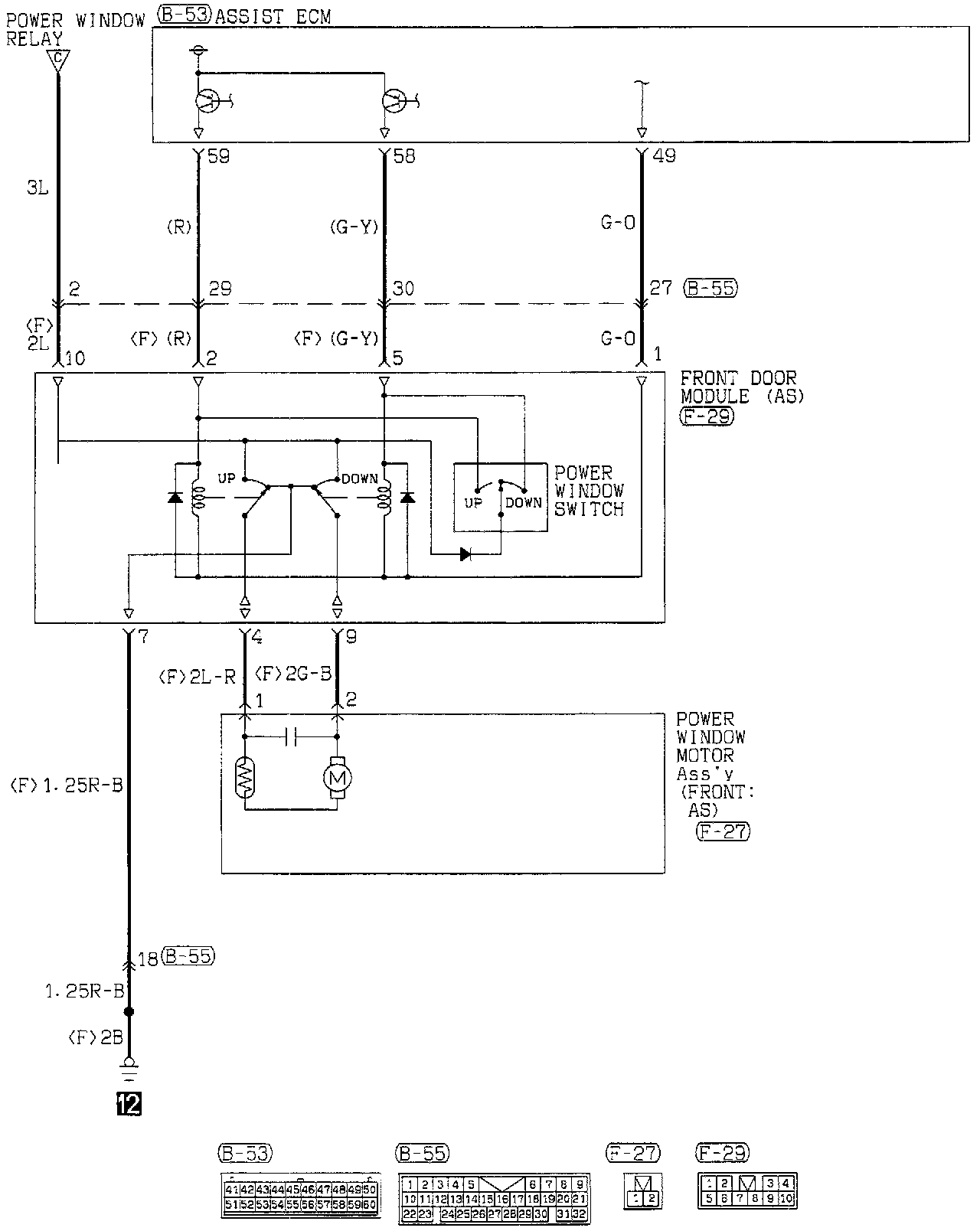

Power Window (Part 5 Of 7):

Assist ECM
Front Door Module (AS)
Power Window Motor Assembly (Front: AS)

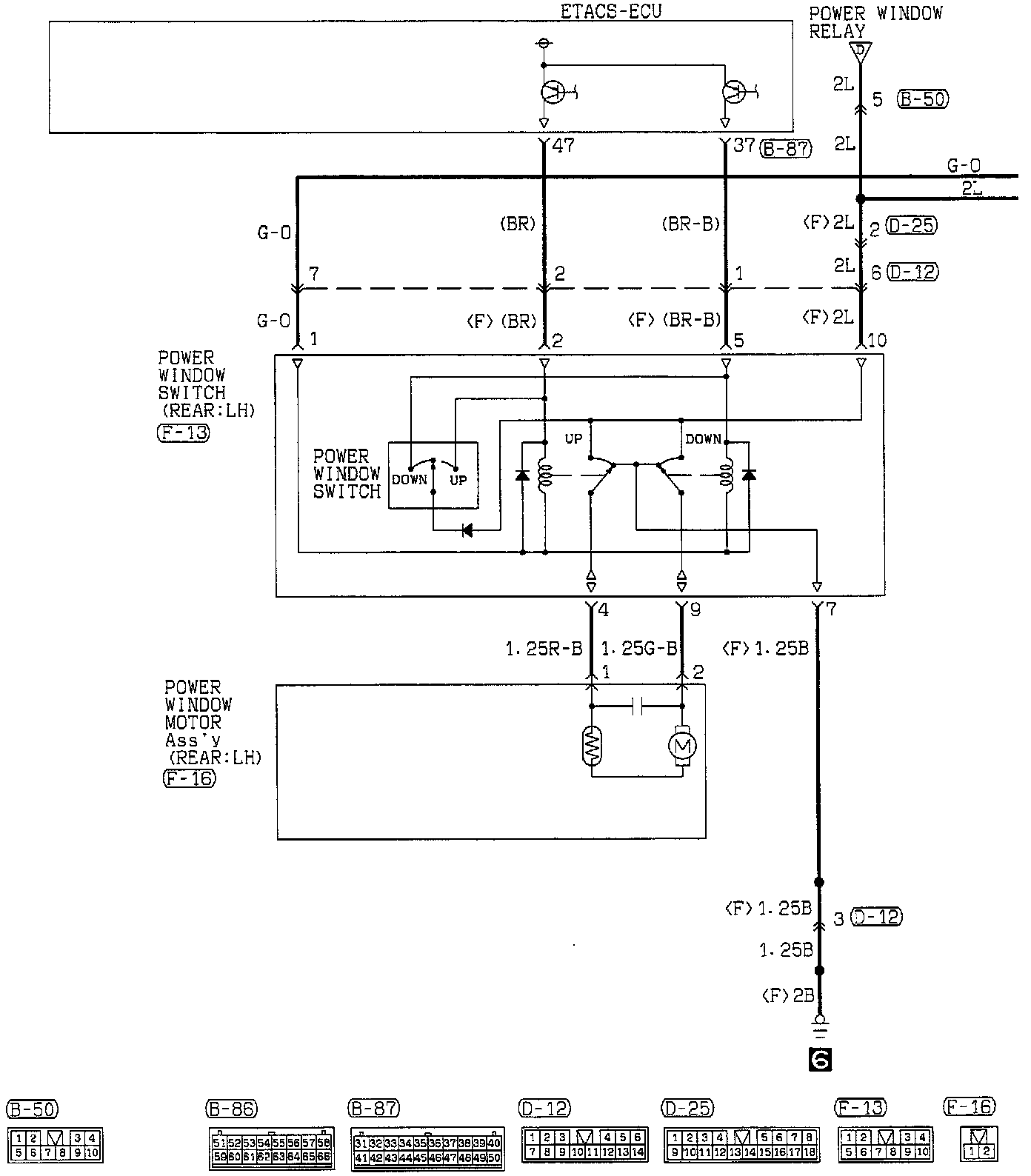

Power Window (Part 6 Of 7):

ETACS-ECU
Power Window Motor Assembly (Rear: LH)
Power Window Switch (Rear: LH)

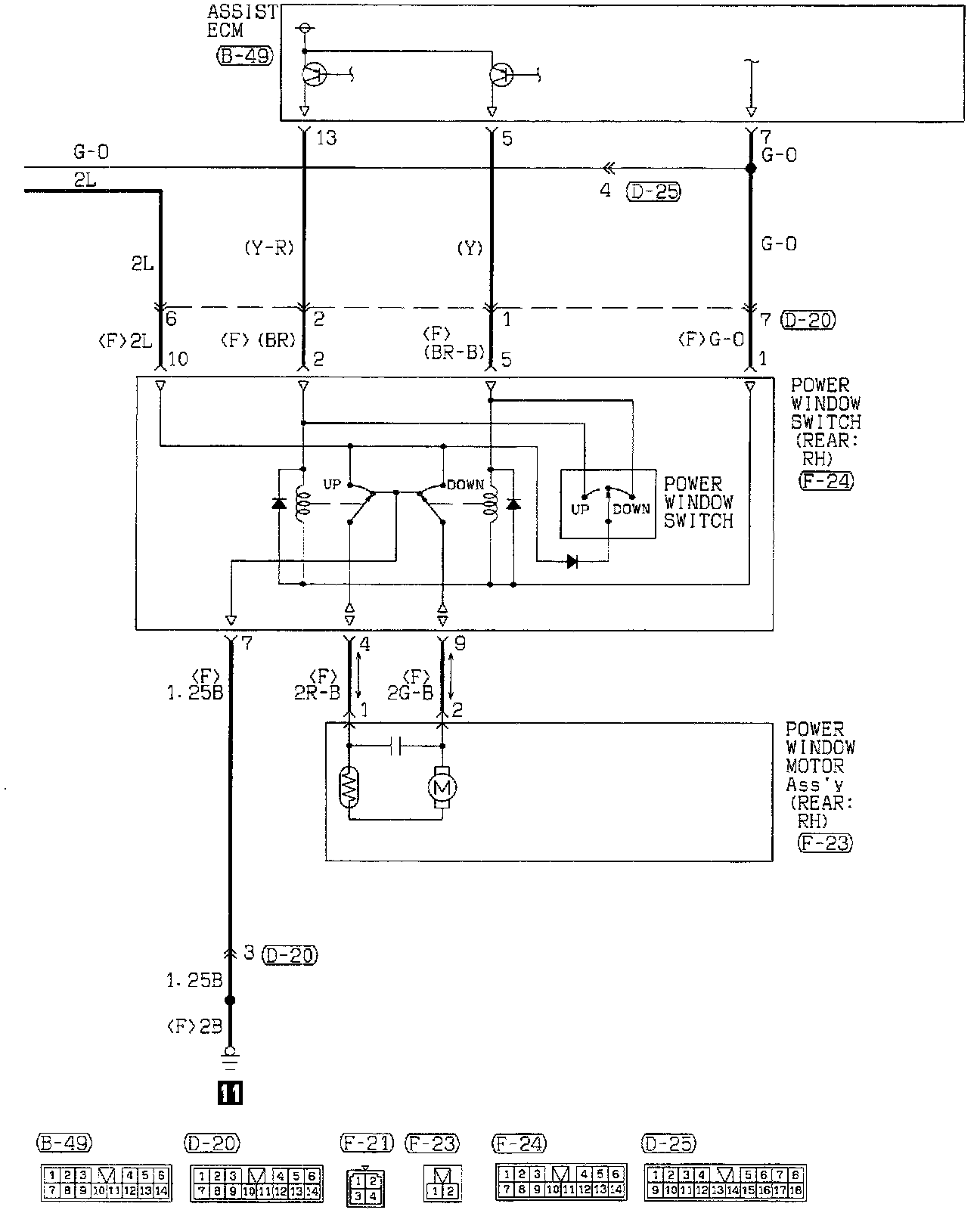

Power Window (Part 7 Of 7):

Assist ECM
Power Window Motor Assembly (Rear: RH)
Power Window Switch (Rear: RH)
