System Diagram

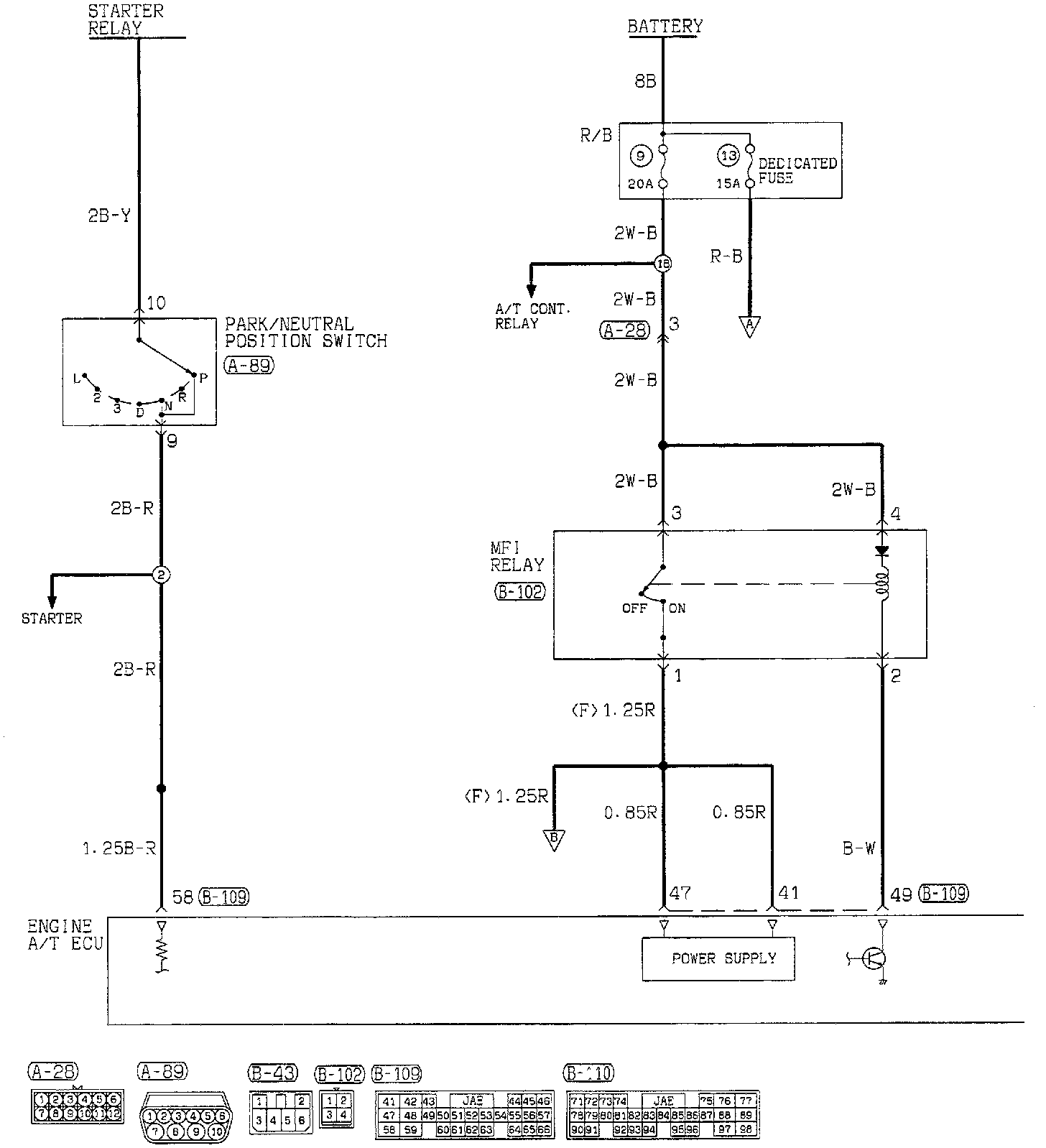

MFI System (Part 1 Of 8):

Engine A/T ECU
- Power Supply
MFI Relay
Park/Neutral Position Switch
R/B

MFI System (Part 2 Of 8):

Engine A/T ECU
Fuel Pump
Fuel Tank Pressure Sensor
J/B
MFI Relay

MFI System (Part 3 Of 8):

Crankshaft Position Sensor
Distributor Assembly
- Camshaft Position Sensor
Engine A/T ECU
Engine Coolant Temperature Sensor
MDP Sensor
Oxygen Sensor (front & rear)
Pressure Vent Solenoid Valve

MFI System (Part 4 Of 8):

Accelerator Pedal Position Sensor
EGR Solenoid
Engine A/T ECU
Evaporative Emission Purge Solenoid
Fuel Injectors
Throttle Position Sensor

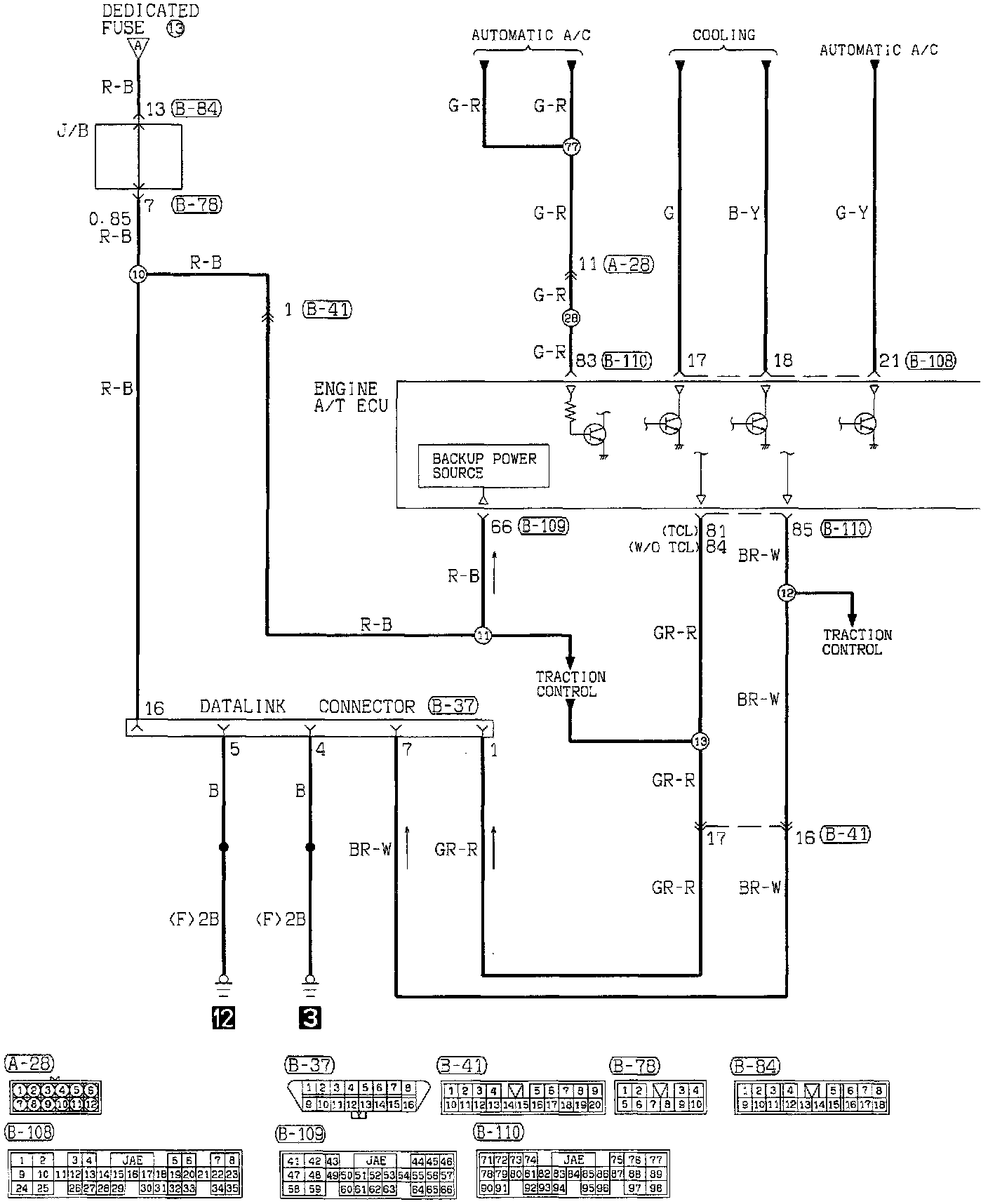

MFI System (Part 5 Of 8):

Datalink Connector
Engine A/T ECU
- Backup Power Source
J/B

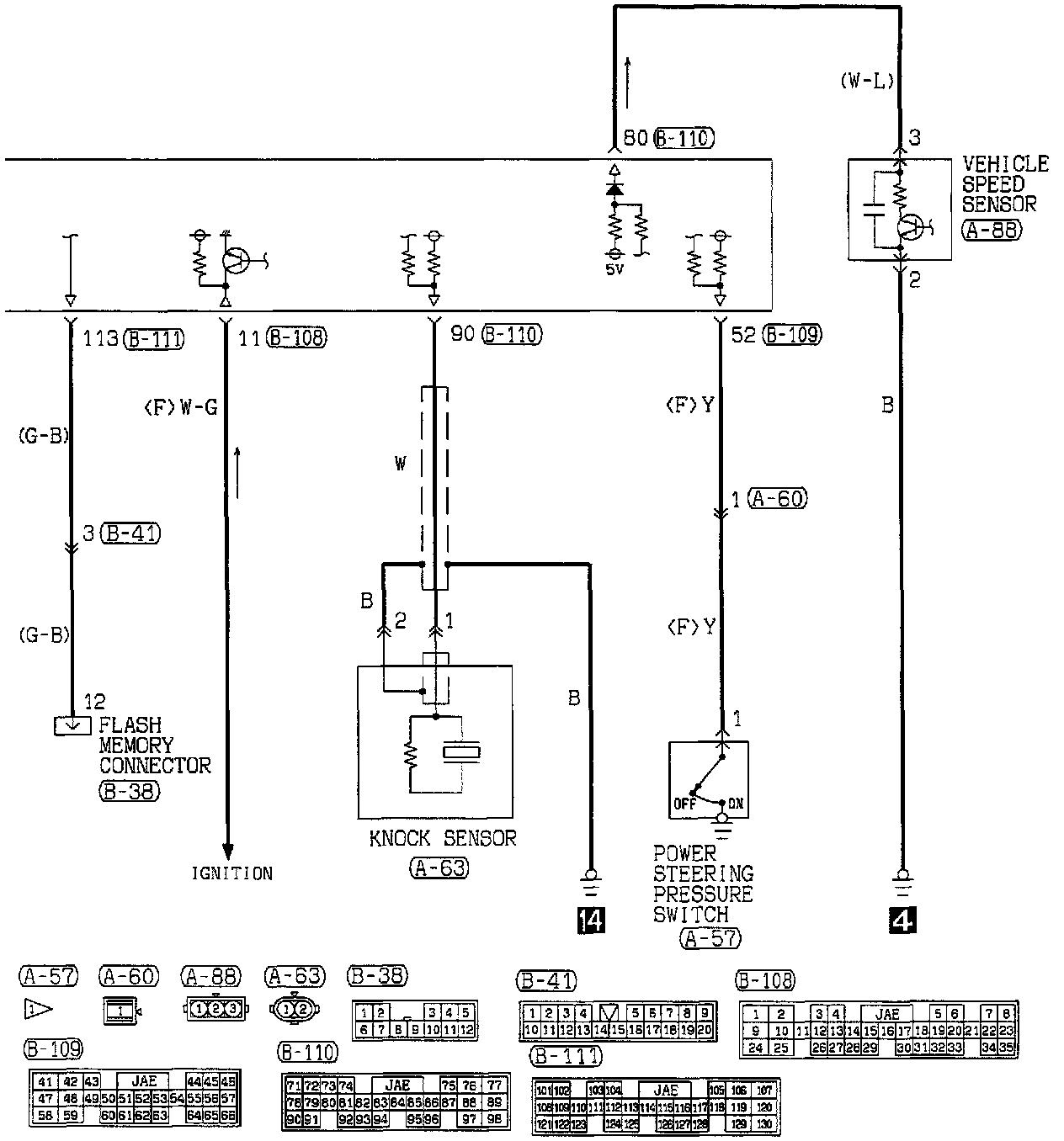

MFI System (Part 6 Of 8):

Engine A/T ECU
Flash Memory Connector
Knock Sensor
Power Steering Pressure Switch
Vehicle Speed Sensor

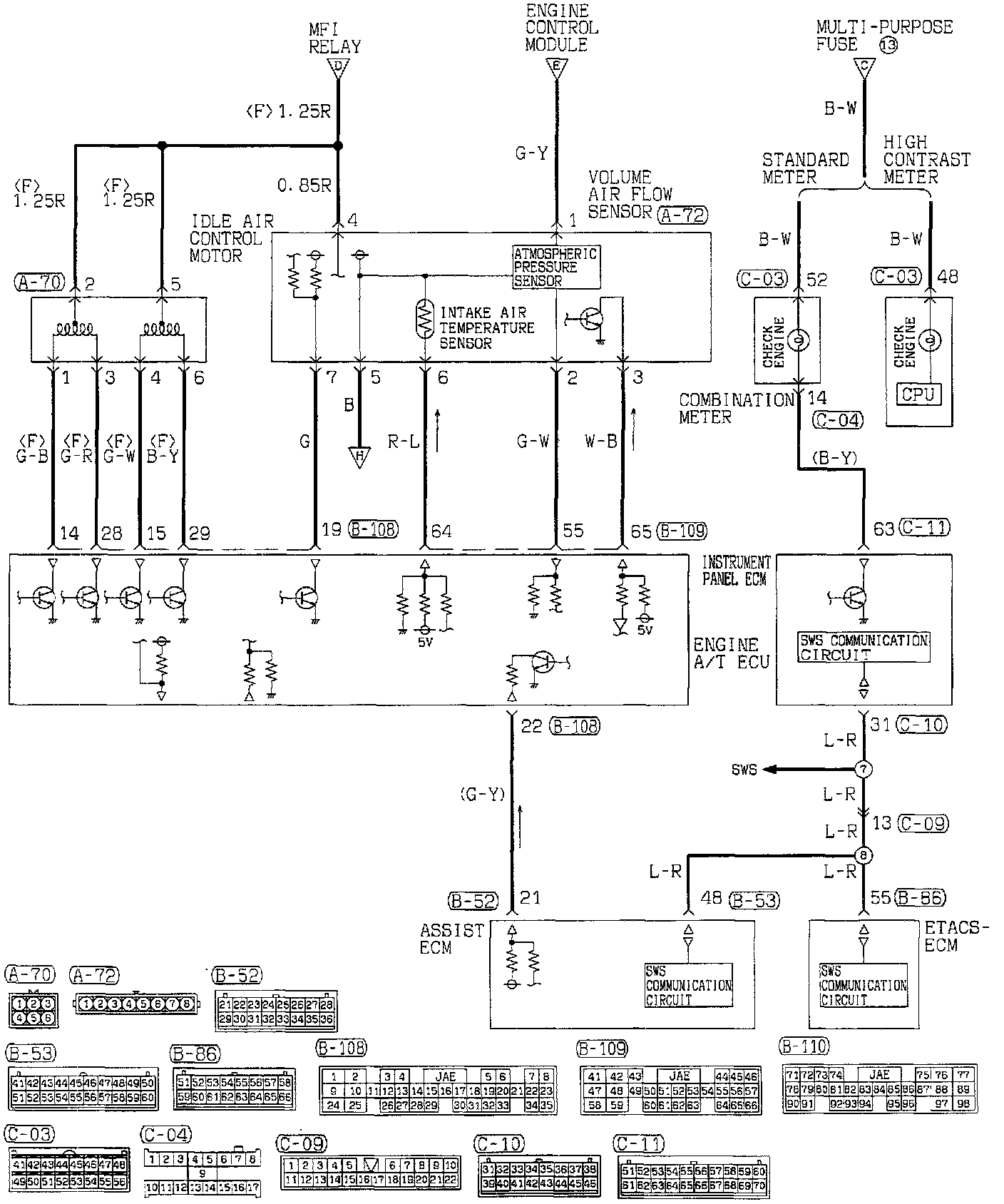

MFI System (Part 7 Of 8):

Assist ECM
Combination Meter
Engine A/T ECU
ETACS-ECM
Idle Air Control Motor
Instrument Panel ECM
Volume Air Flow Sensor
- Atmospheric Pressure Sensor
- Intake Air Temperature Sensor

MFI System (Part 8 Of 8):

Engine A/T ECU
Oxygen Sensor (Front Left & Right) (Rear Left & Right)
