Map Light

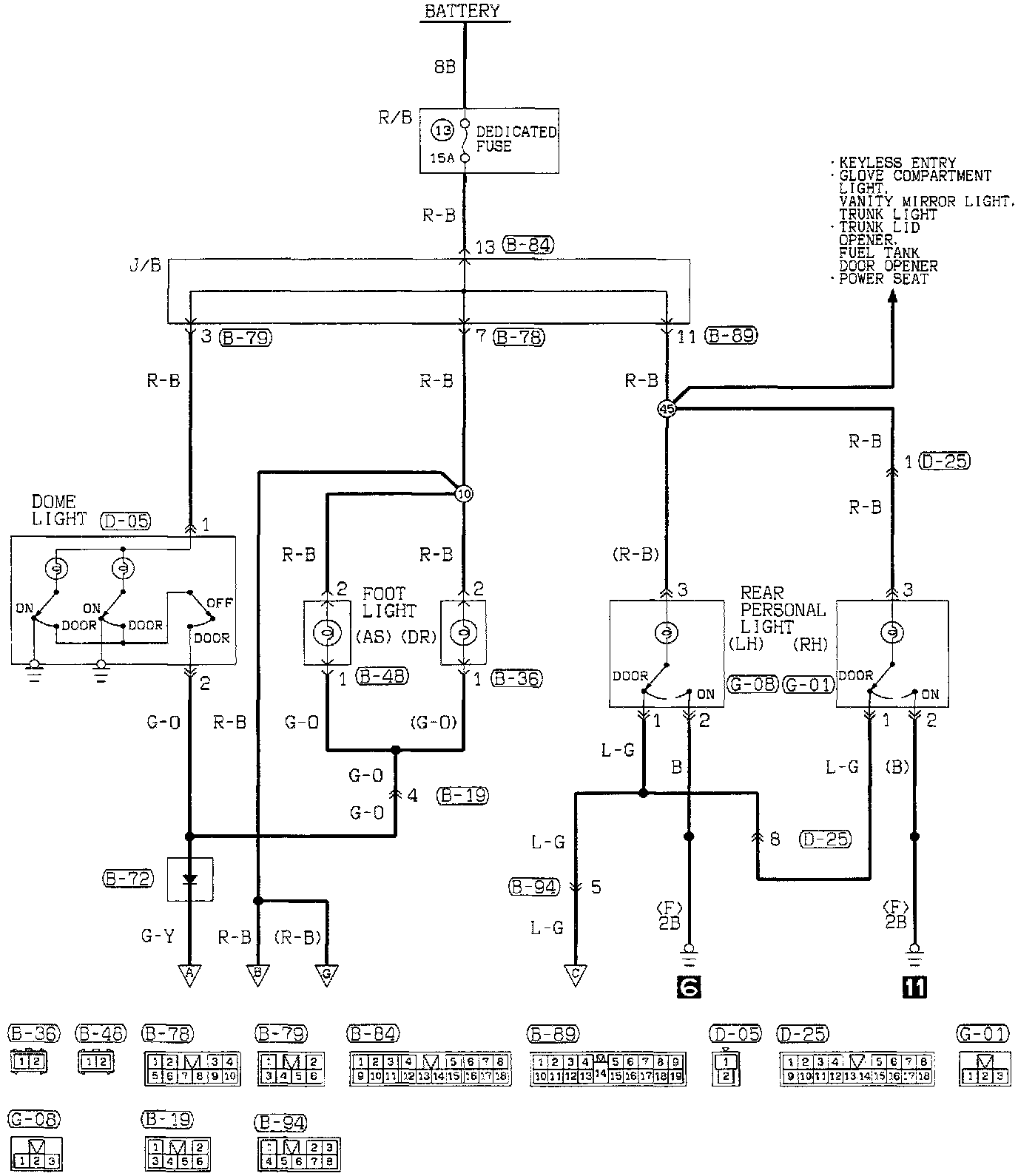

Dome, Personal And Foot Light (Part 1 Of 3):

Dome Light
Foot Light (AS & DR)
R/B
Rear Personal Light (LH & RH)

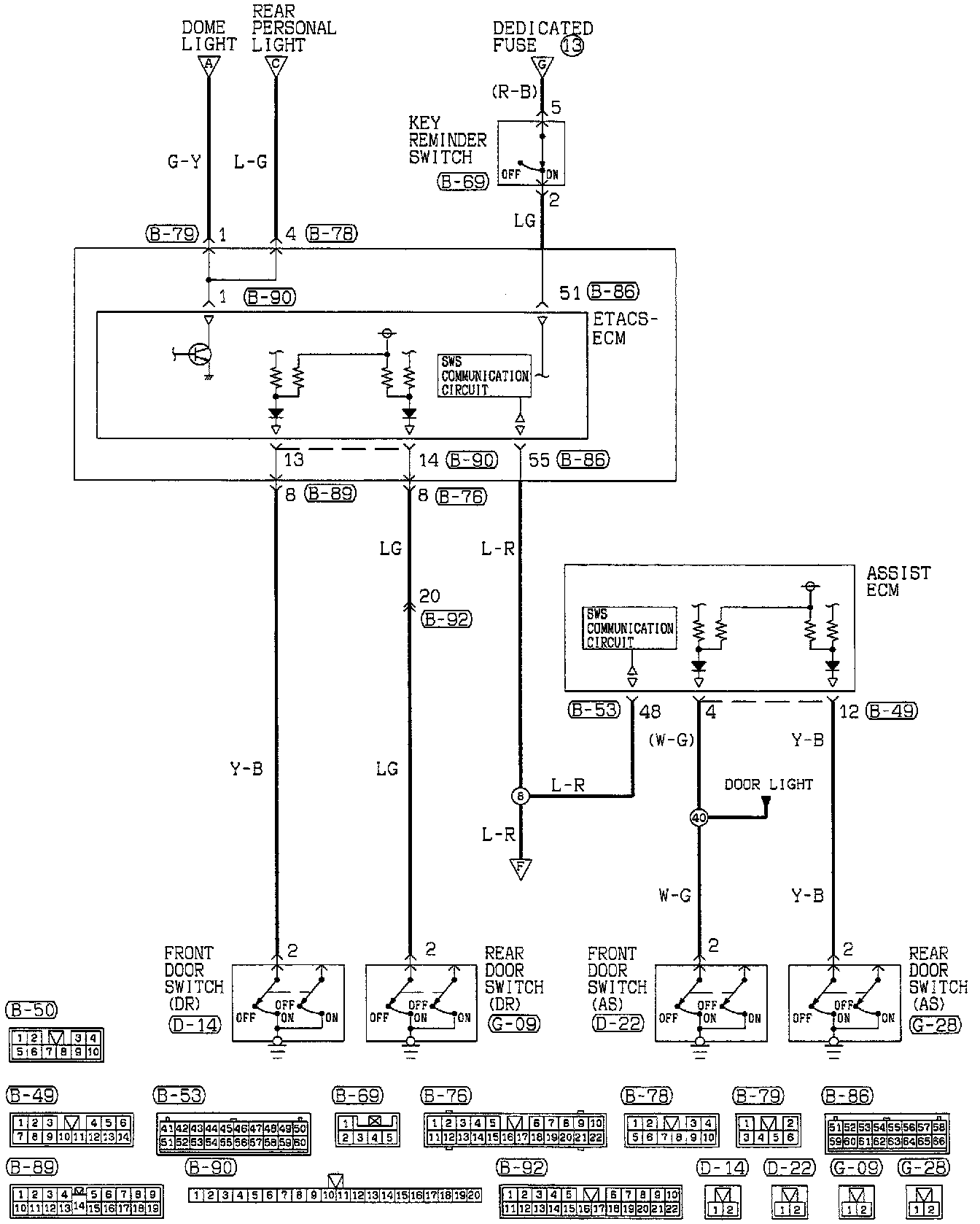

Dome, Personal And Foot Light (Part 2 Of 3):

Assist ECM
ETACS ECM
Front Door Switch (DR & AS)
Rear Door Switch (DR & AS)
Key Reminder Switch

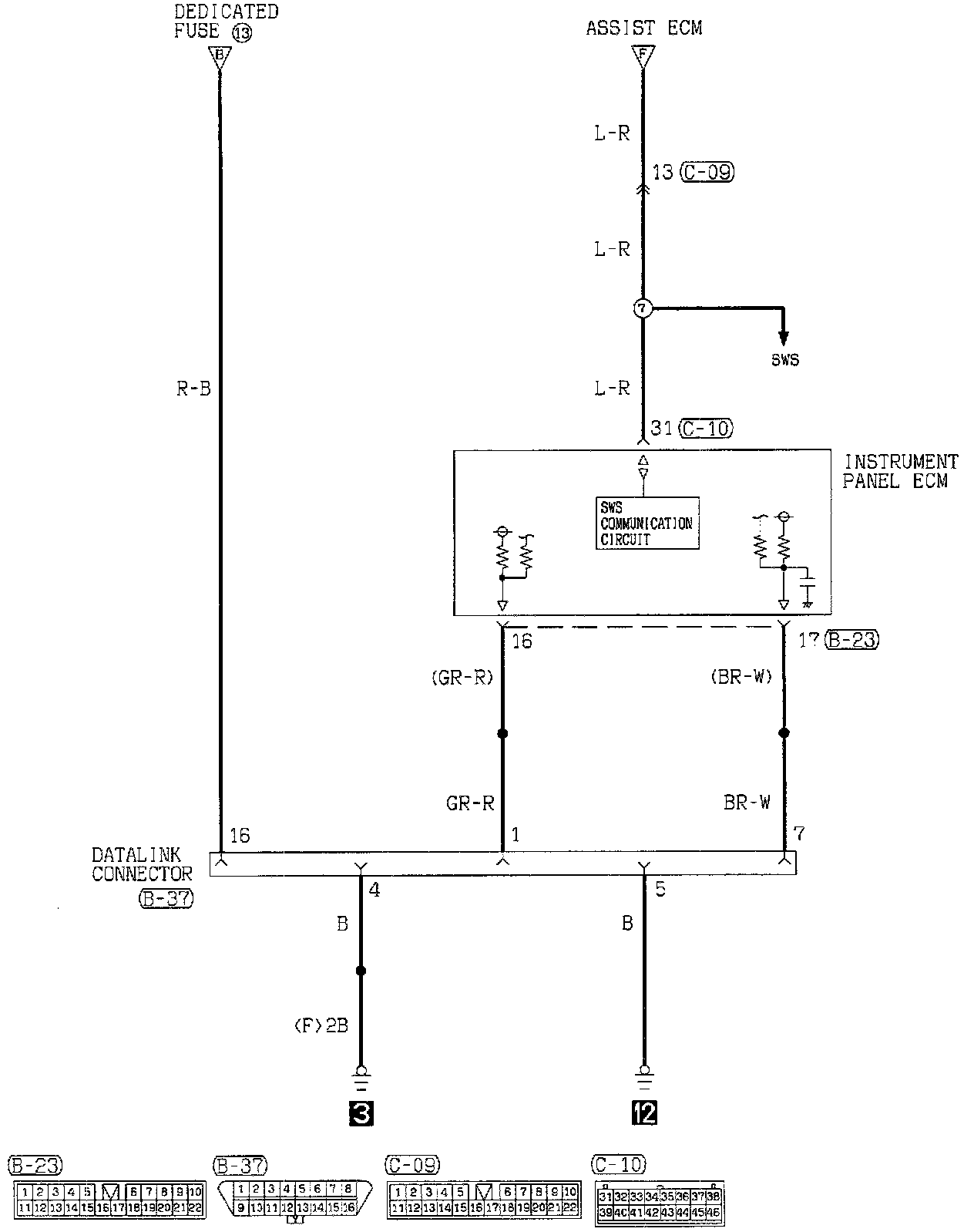

Dome, Personal And Foot Light (Part 3 Of 3):

Datalink Connector
Instrument Panel ECM
