Keyless Entry

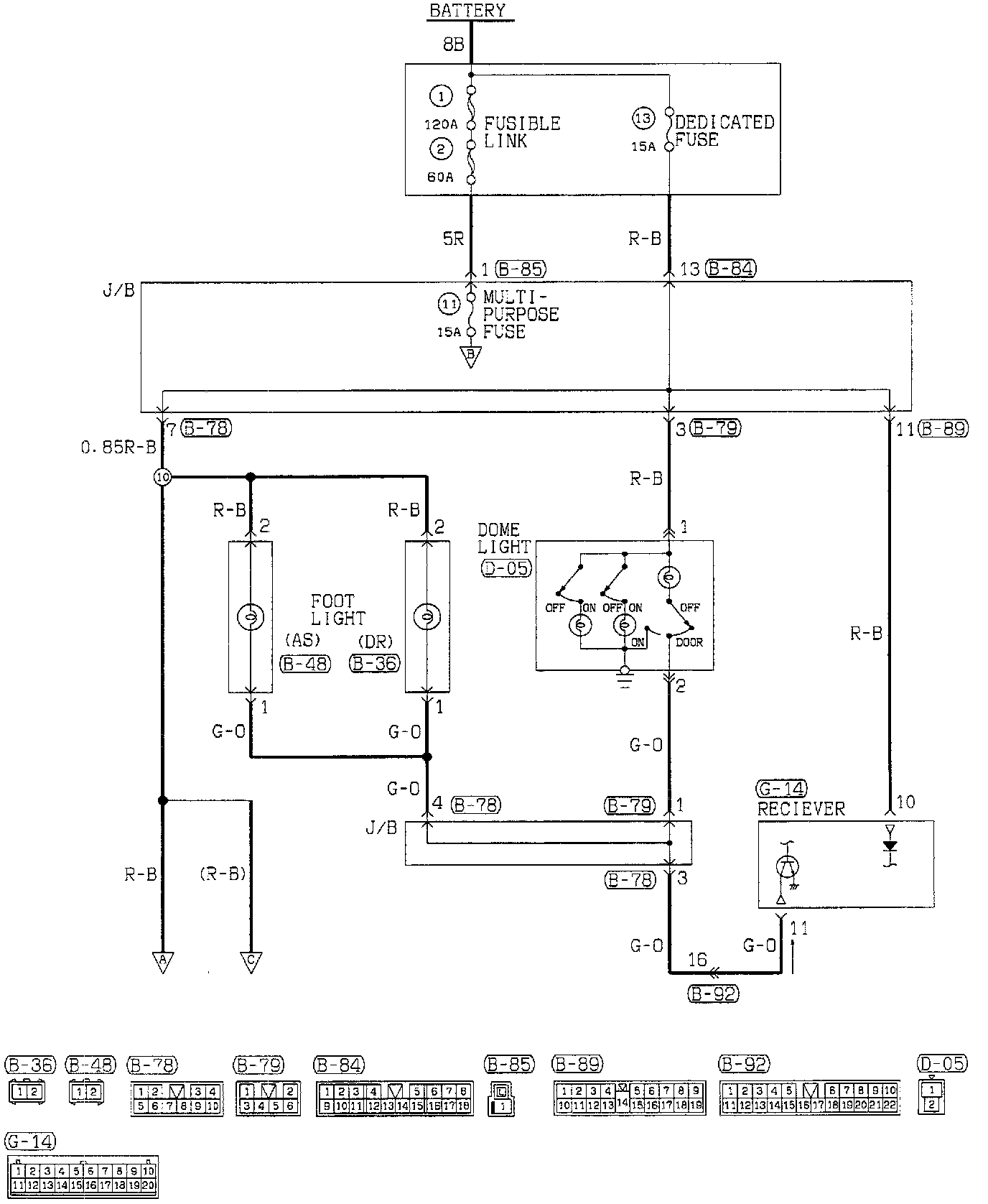

Multi-Mode Keyless Entry System (Part 1 Of 4):

Dome Light
Foot Light (DR & AS)
J/B
Receiver

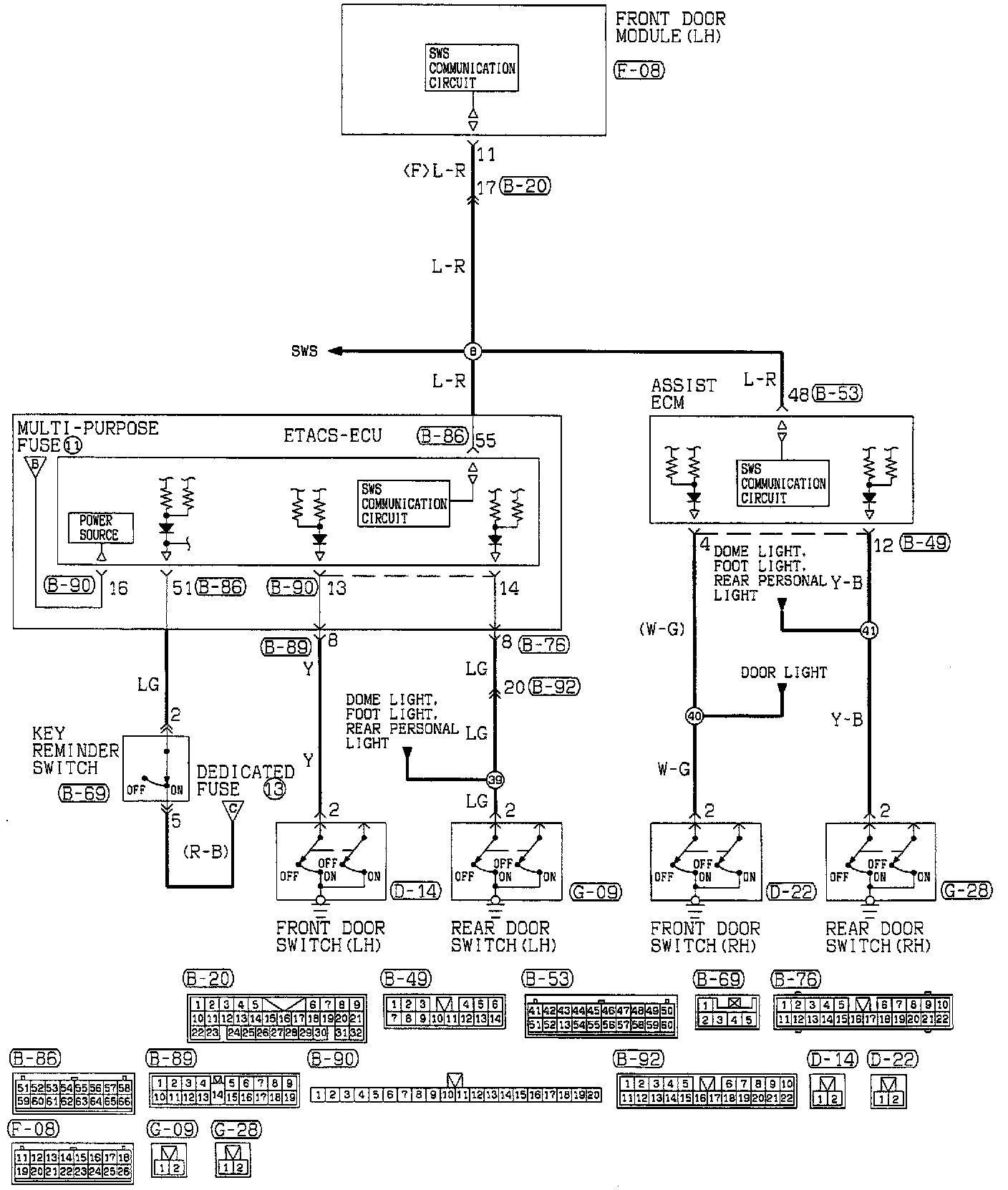

Multi-Mode Keyless Entry System (Part 2 Of 4):

Assist ECM
ETACS-ECU
Front Door Module (LH)
Front Door Switch (LH & RH)
Rear Door Switch (LH & RH)
Key Reminder Switch

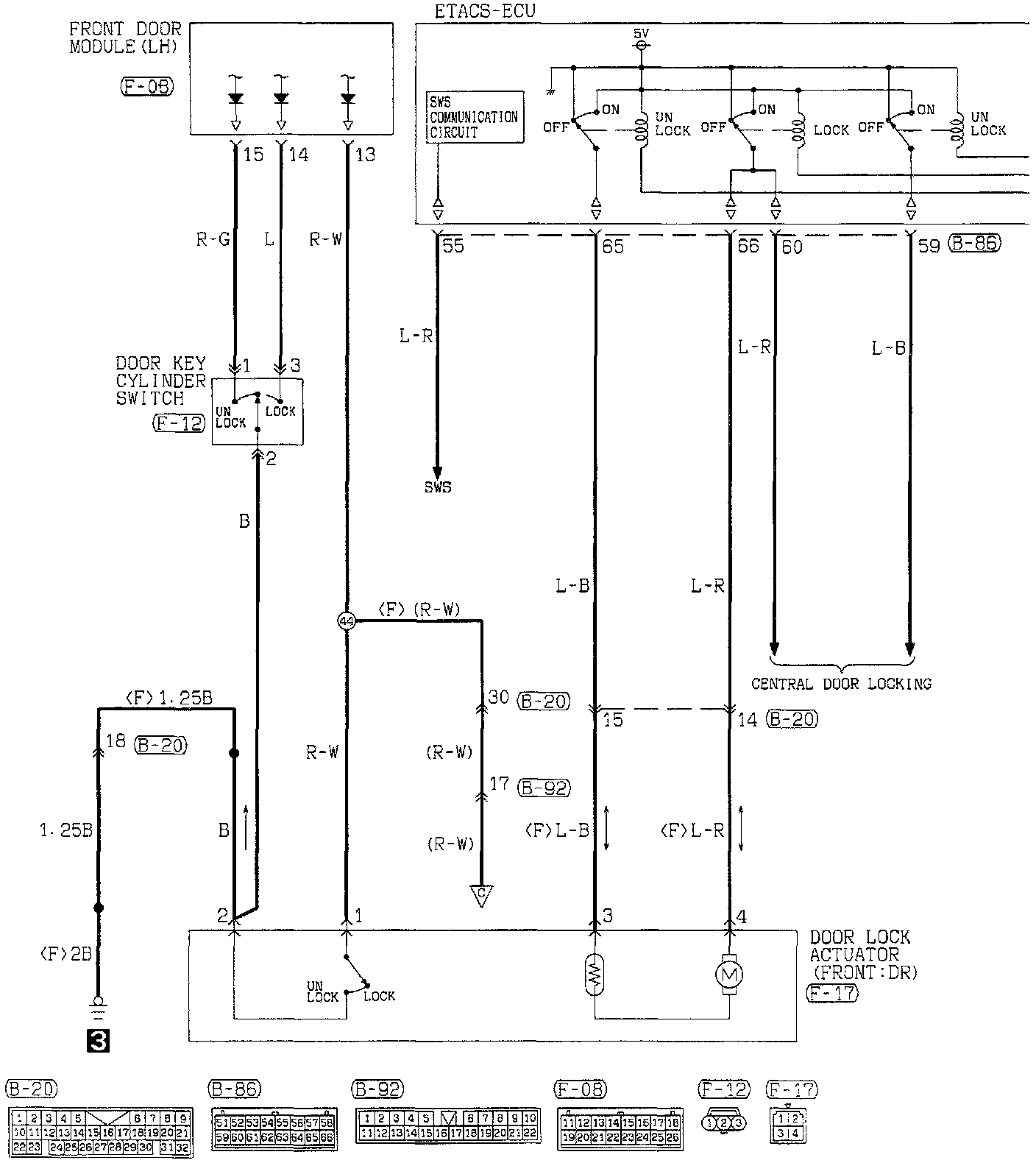

Multi-Mode Keyless Entry System (Part 3 Of 4):

Door Lock Actuator (Front: DR)
Door Key Cylinder Switch
ETACS-ECU
Front Door Module (LH)

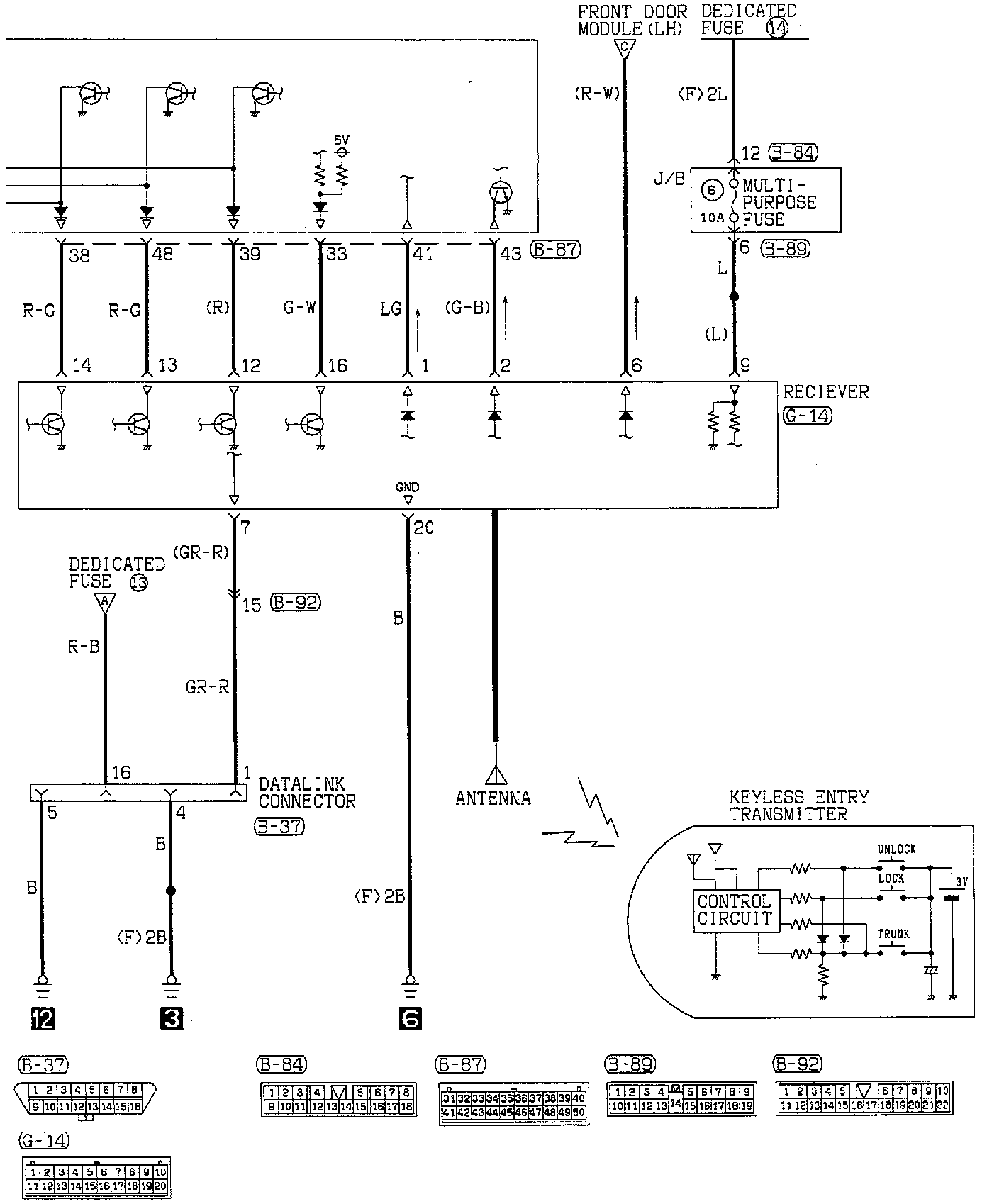

Multi-Mode Keyless Entry System (Part 4 Of 4):

Datalink Connector
ETACS-ECU
J/B
Keyless Entry Transmitter
Receiver
