Cruise Control

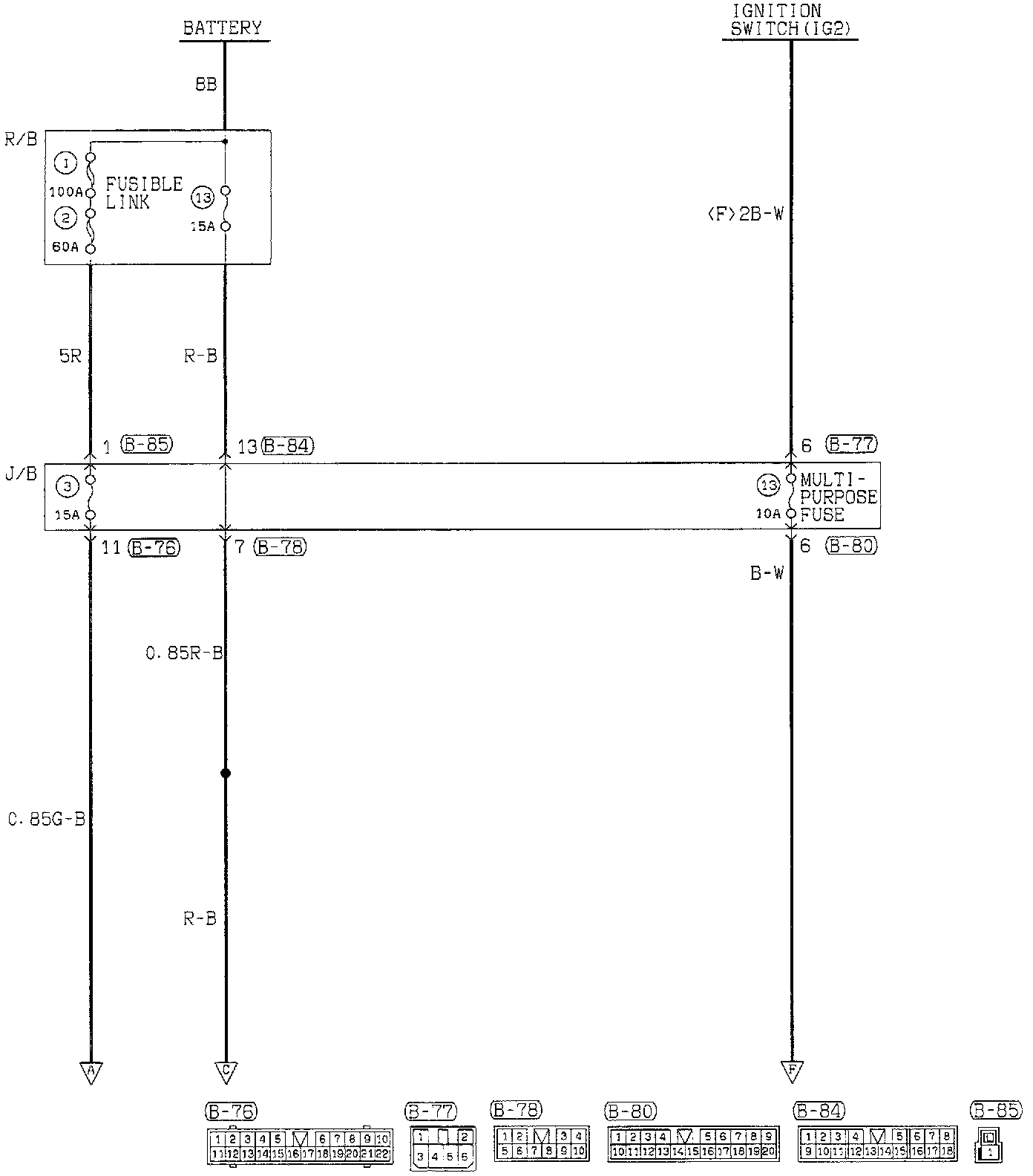

Auto-Cruise Control (Part 1 Of 6):

J/B
R/B

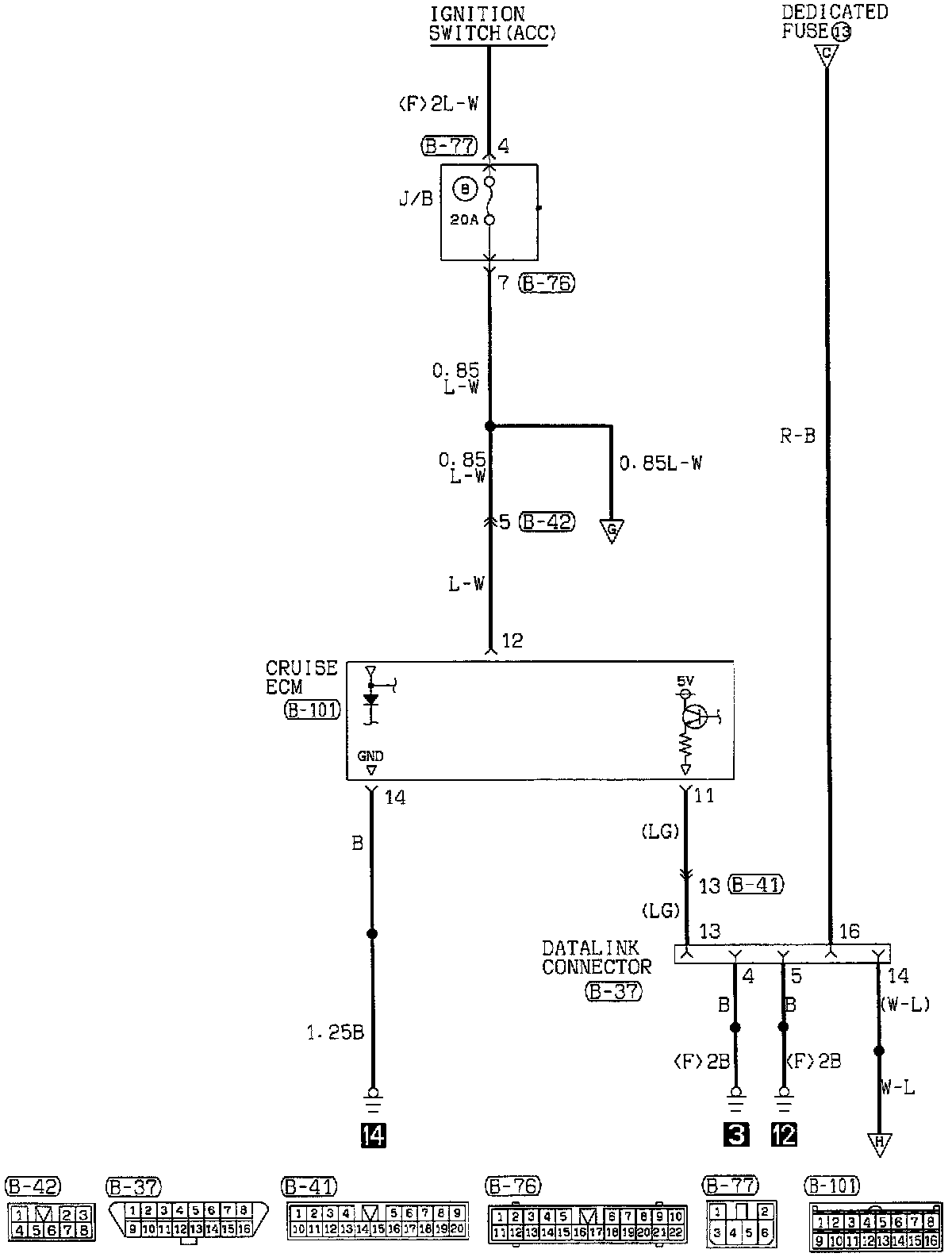

Auto-Cruise Control (Part 2 Of 6):

Cruise ECM
Datalink Connector
J/B

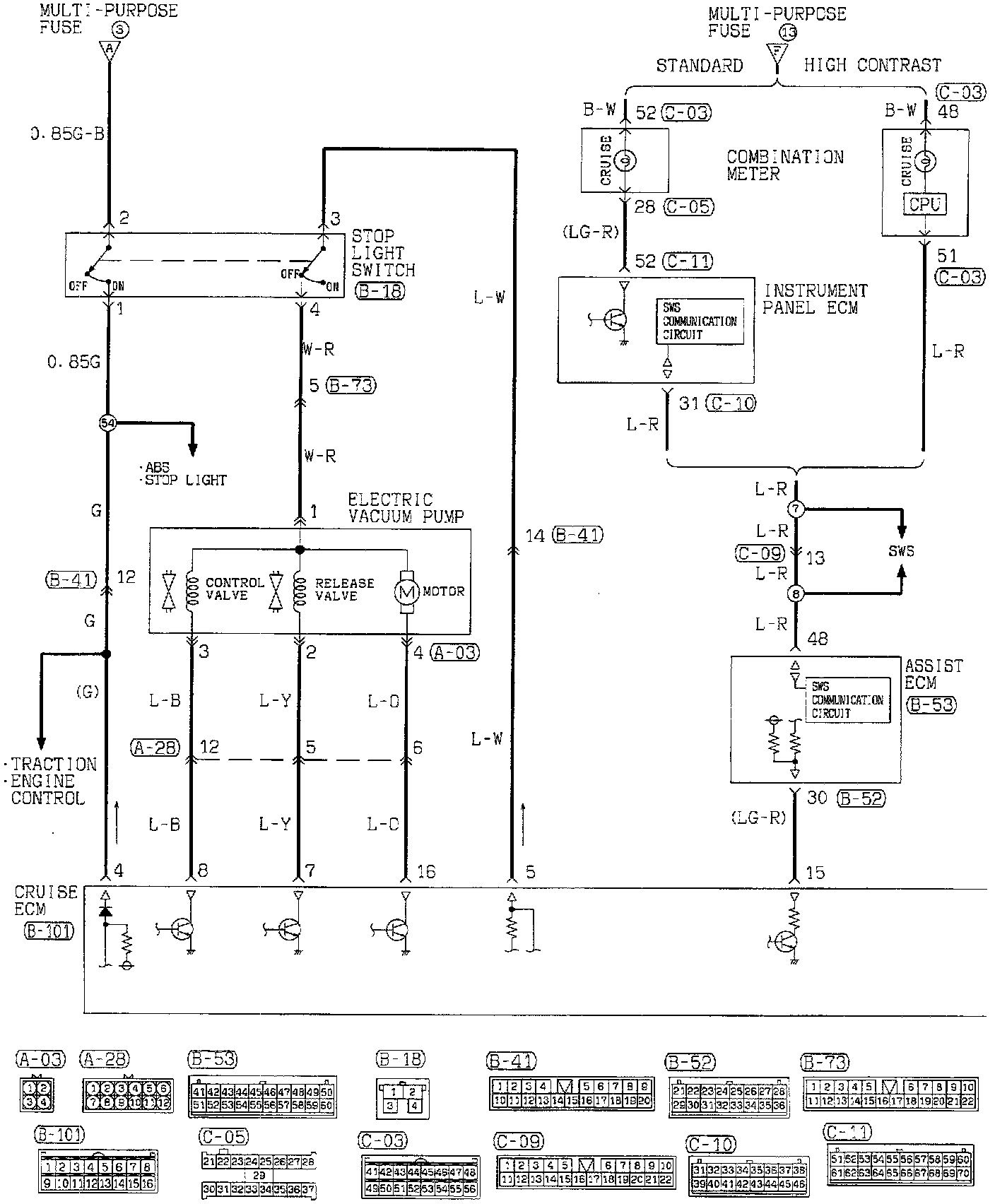

Auto-Cruise Control (Part 3 Of 6):

Assist ECM
Combination Meter
Cruise ECM
Electric Vacuum Pump
Instrument Panel
Stop Light Switch

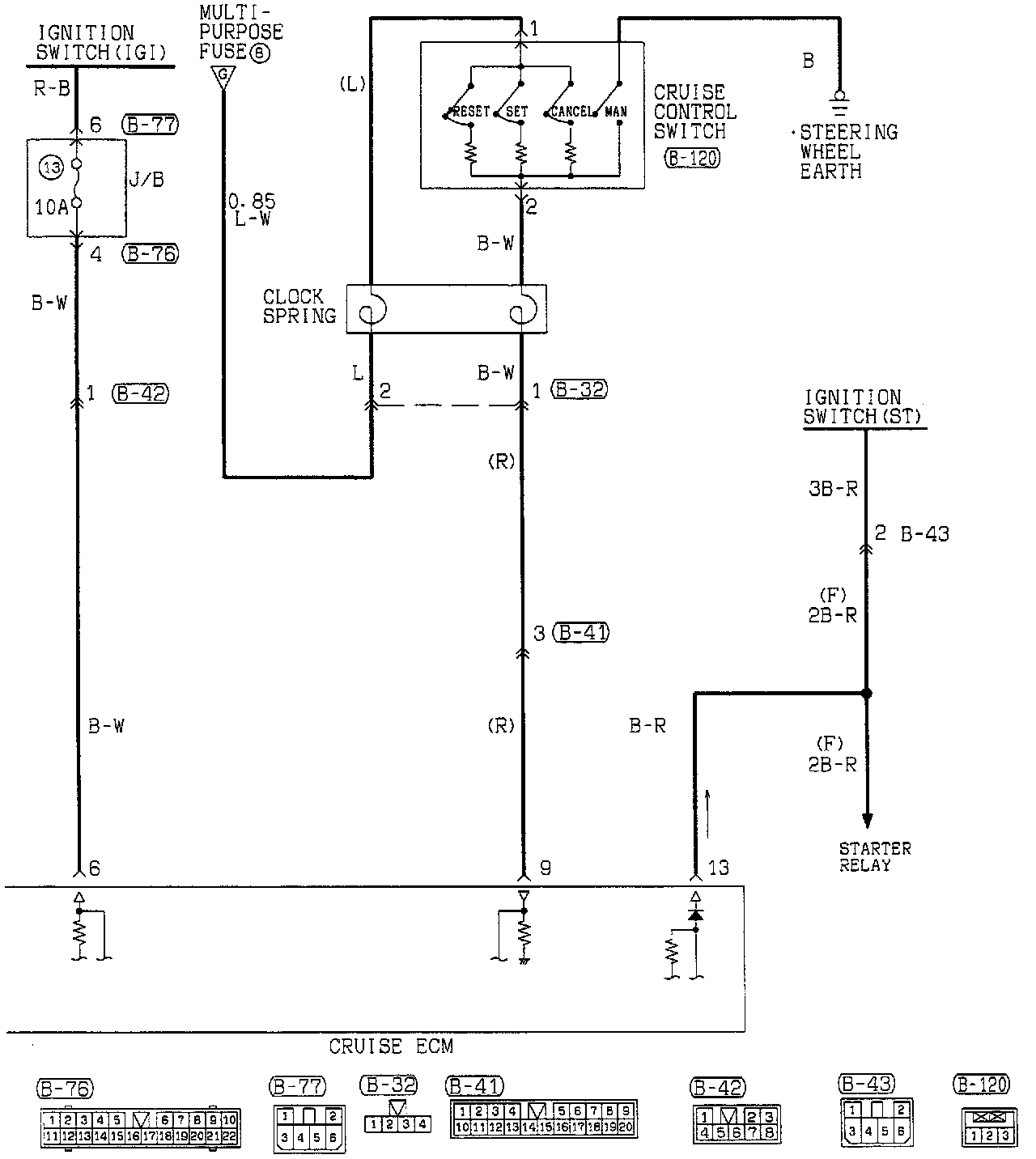

Auto-Cruise Control (Part 4 Of 6):

Clock Spring
Cruise Control Switch
Cruise ECM
J/B

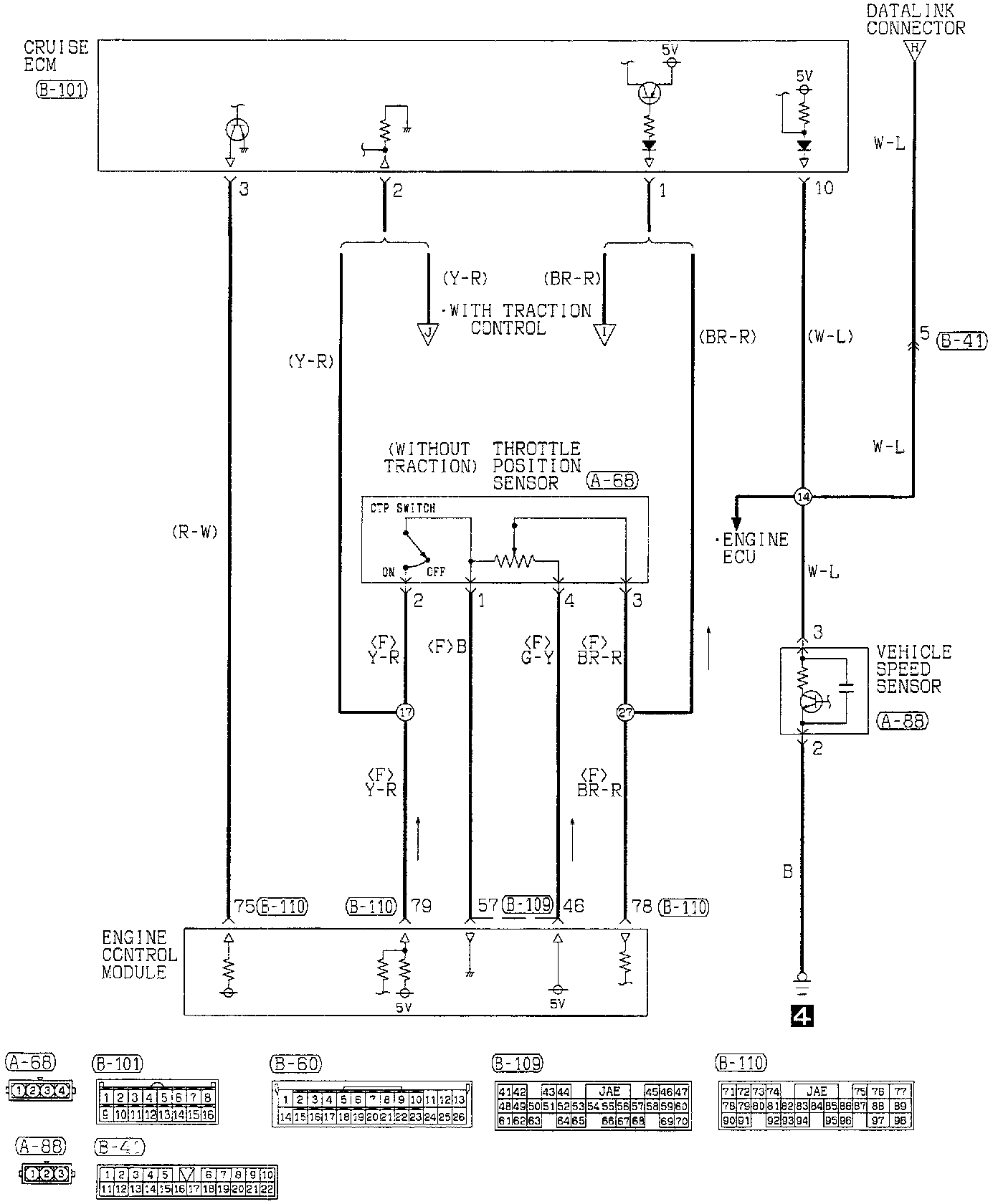

Auto-Cruise Control (Part 5 Of 6):

Cruise ECM
Engine Control Module
Throttle Position Sensor
Vehicle Speed Sensor

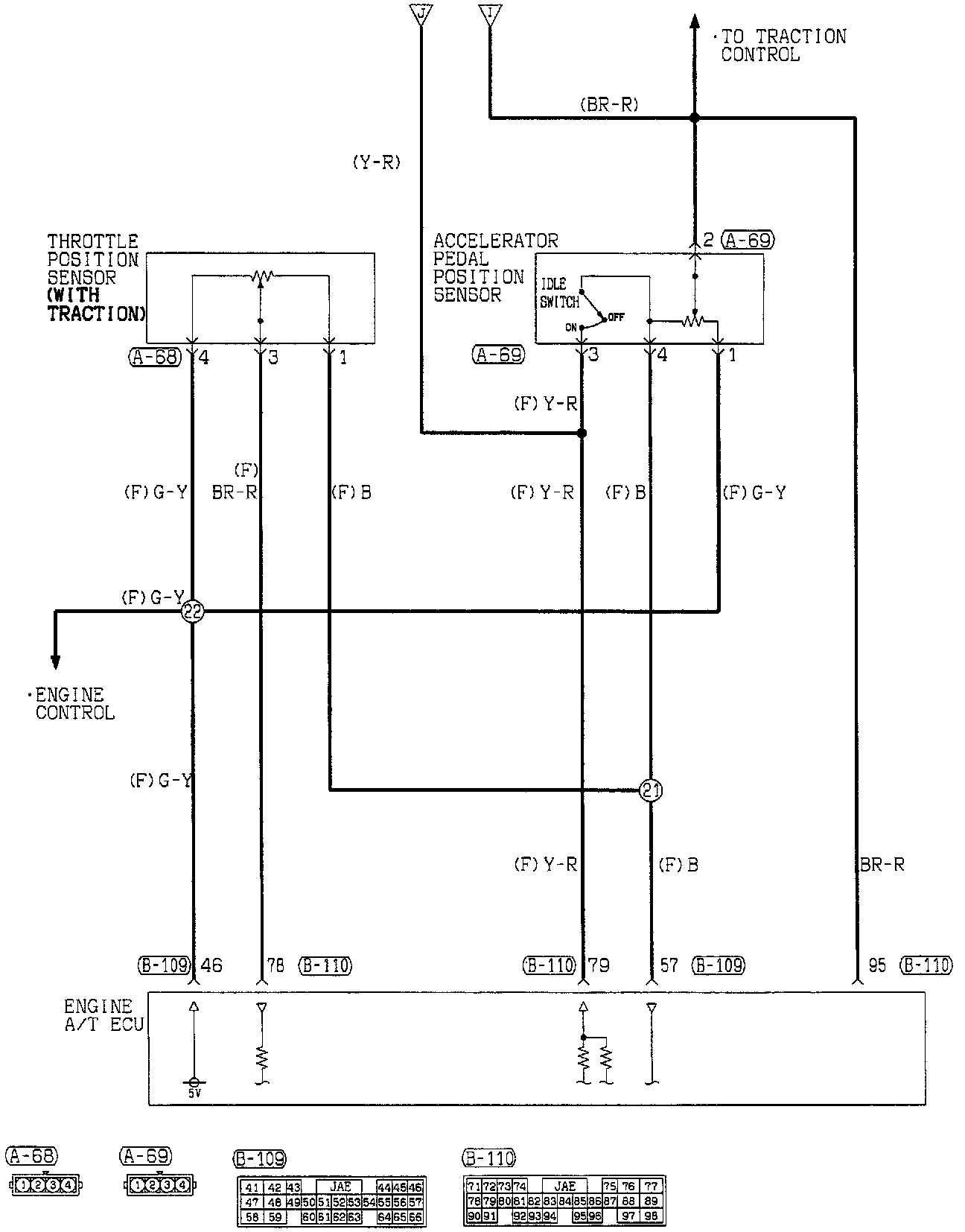

Auto-Cruise Control (Part 6 Of 6):

Accelerator Pedal Position Sensor
Engine A/T ECU
Throttle Position Sensor (With Traction)
