Antitheft and Alarm Systems

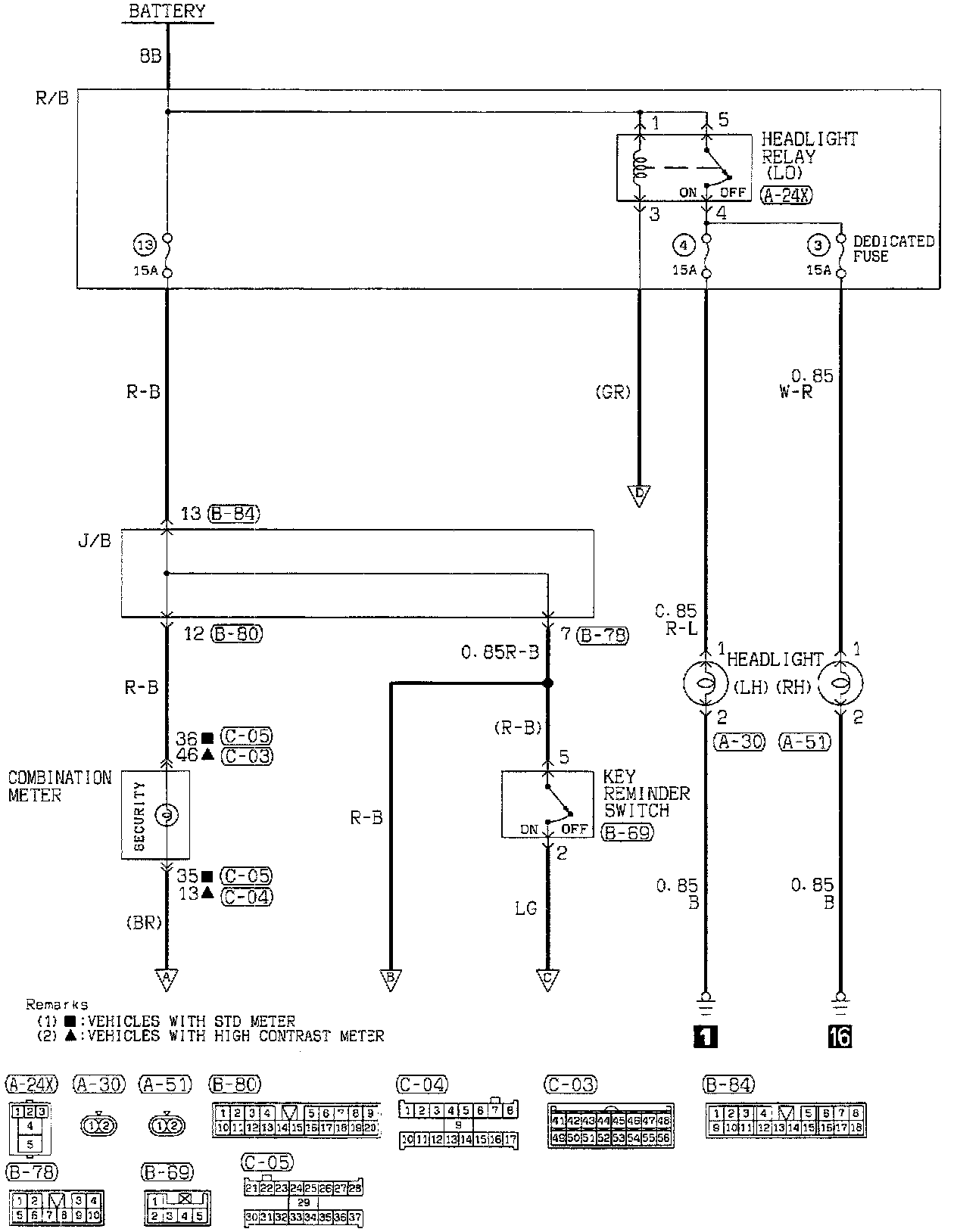

Theft-Alarm System (Part 1 Of 8):





Combination Meter
J/B
Key Reminder Switch
R/B
- Headlight Relay (LO)

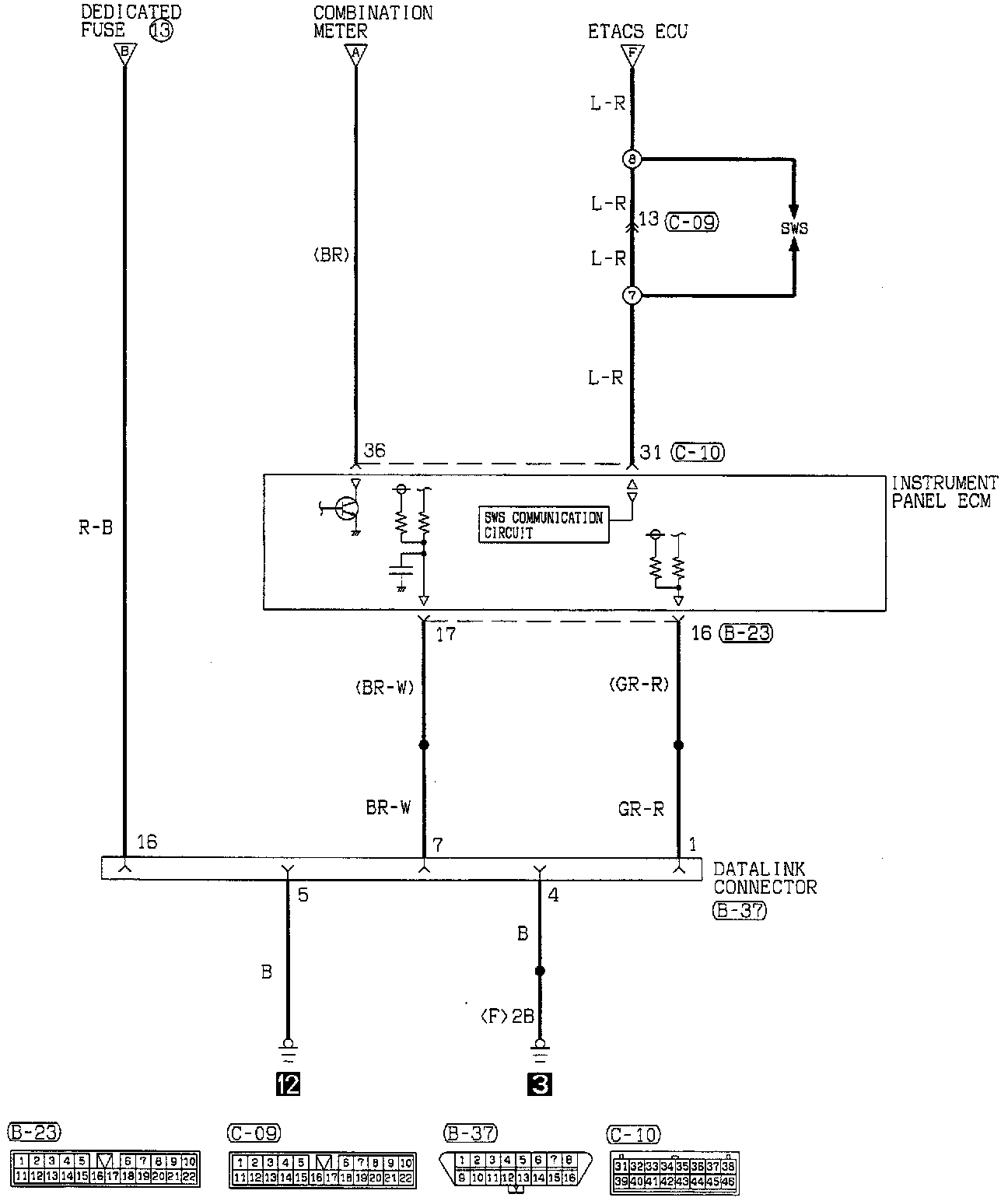

Theft-Alarm System (Part 2 Of 8):





Datalink Connector
Instrument Panel ECM

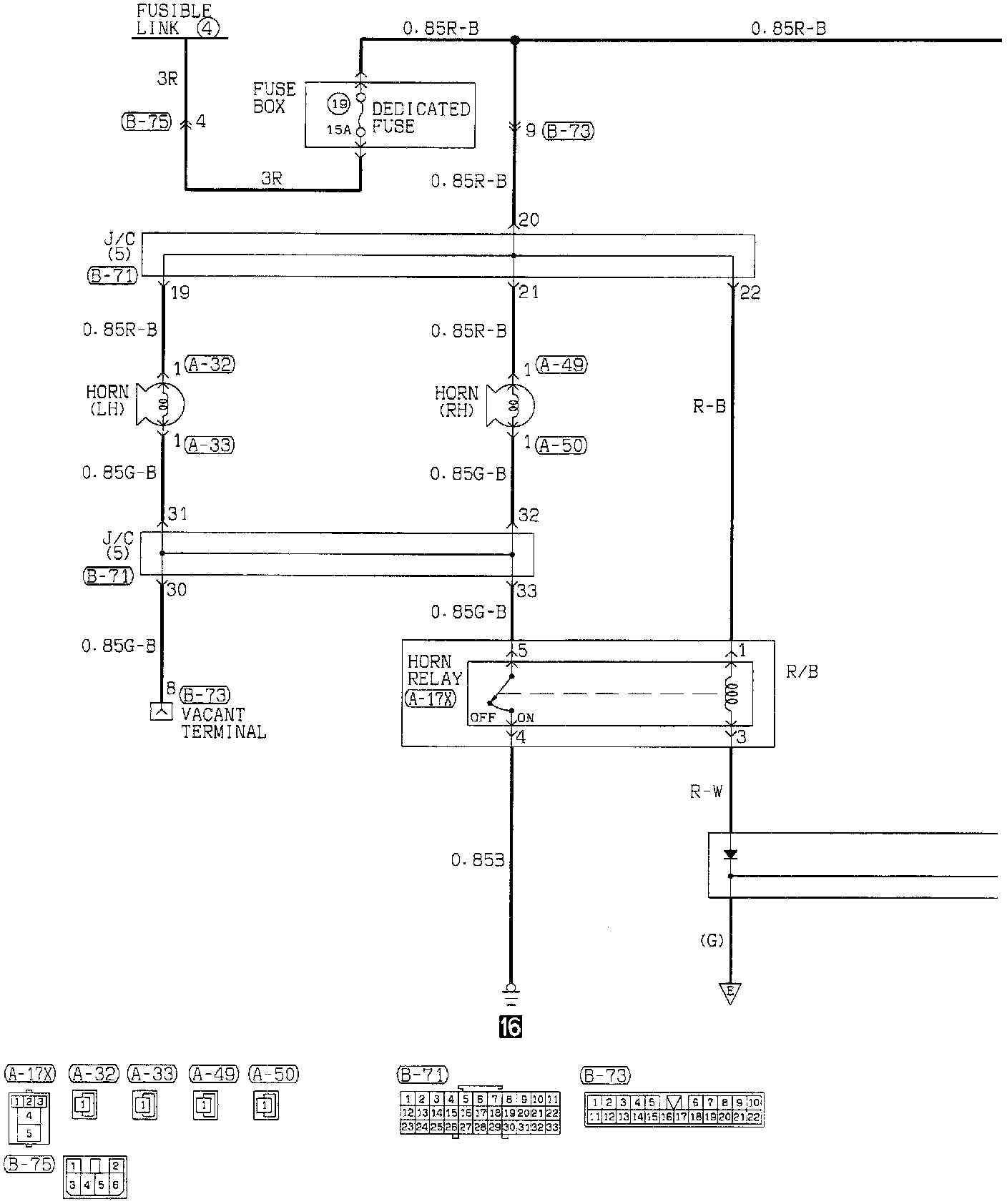

Theft-Alarm System (Part 3 Of 8):





Diode
Fuse Box
J/C (5)
R/B
- Horn Relay

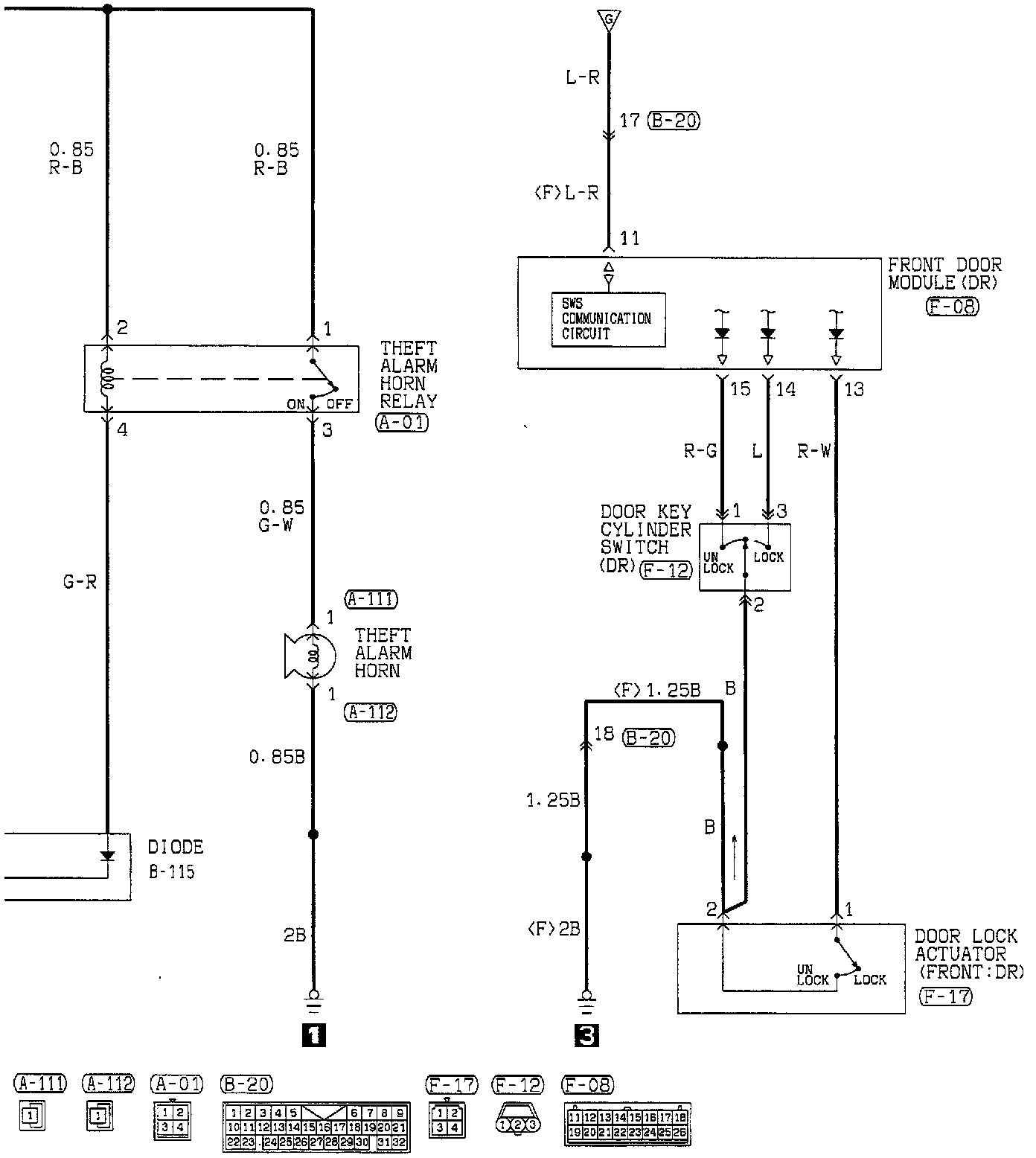

Theft-Alarm System (Part 4 Of 8):





Diode
Door Key Cylinder Switch (DR)
Door Lock Actuator (Front: DR)
Front Door Module (DR)
Theft Alarm Horn Relay

Theft-Alarm System (Part 5 Of 8):





Assist ECM
Door Lock Actuator (Rear: RH)
Door Lock Actuator (Front: AS)
Door Key Cylinder Switch (AS)

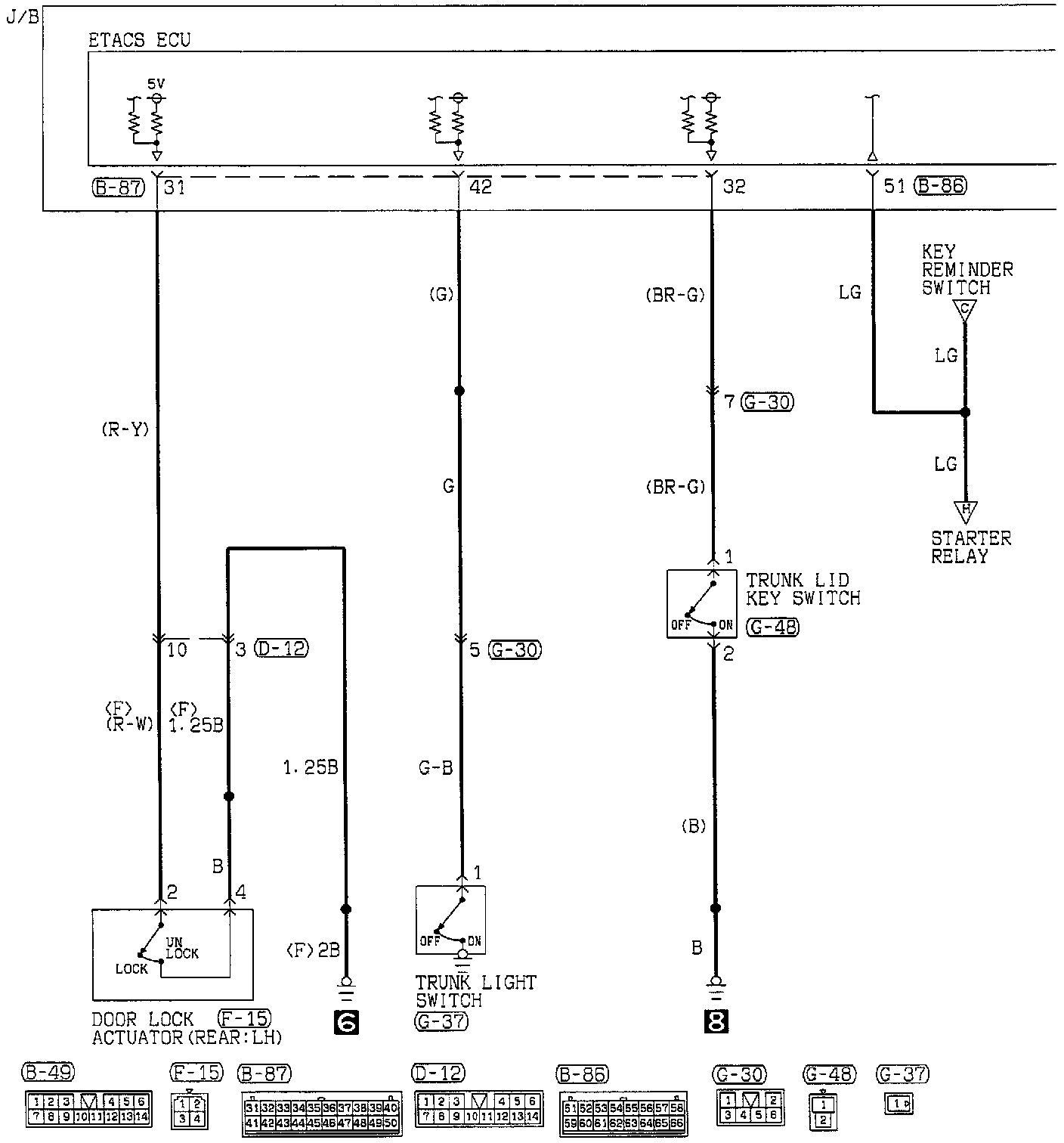

Theft-Alarm System (Part 6 Of 8):





Door Lock Actuator (Rear: RH)
J/B
- ETACS-ECU
Trunk Lid Key Switch
Trunk Light Switch

Theft-Alarm System (Part 7 Of 8):





Assist ECM
Front Door Switch (AS & DR)
J/B
- ETACS-ECU
Rear Door Switch (AS & DR)

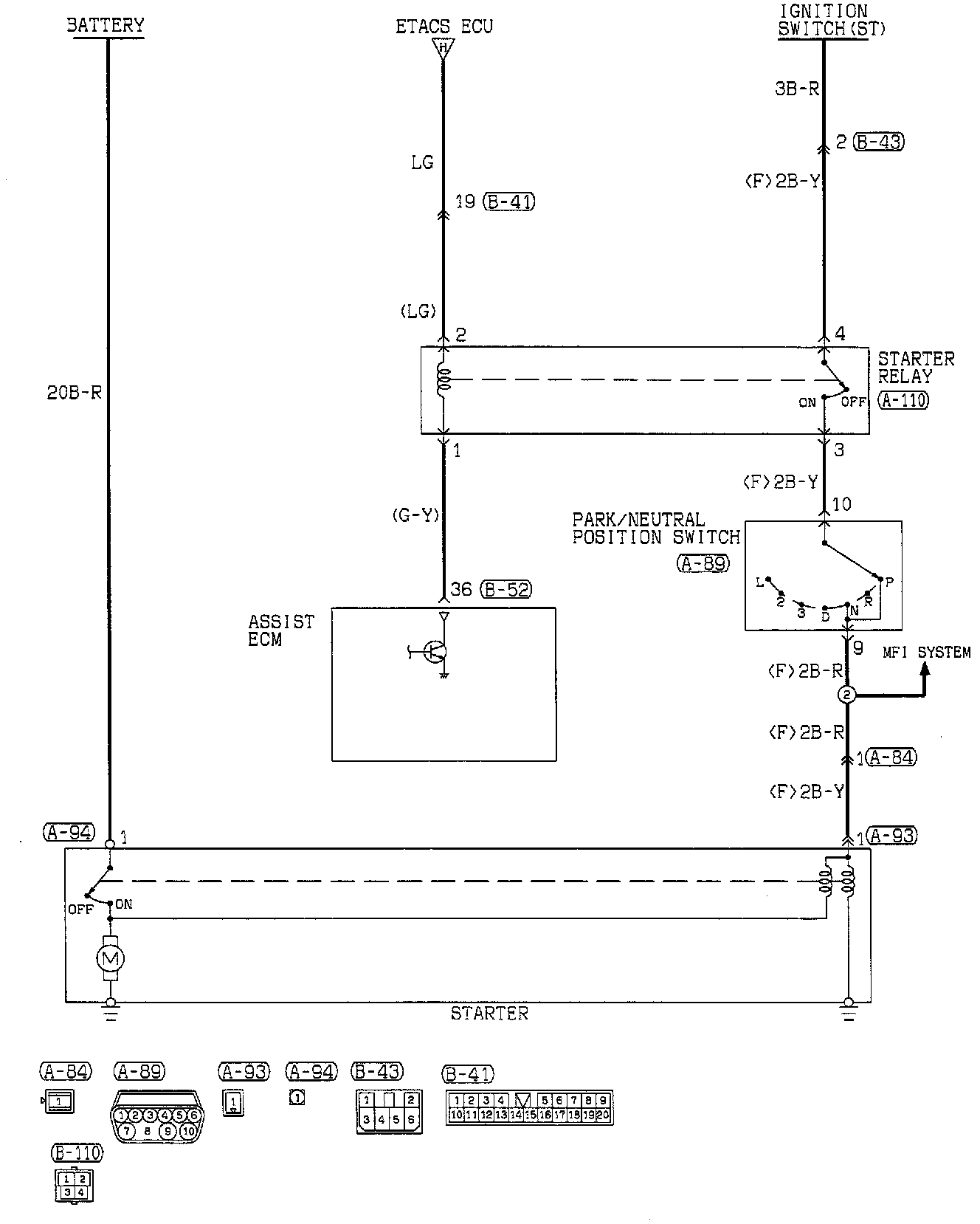

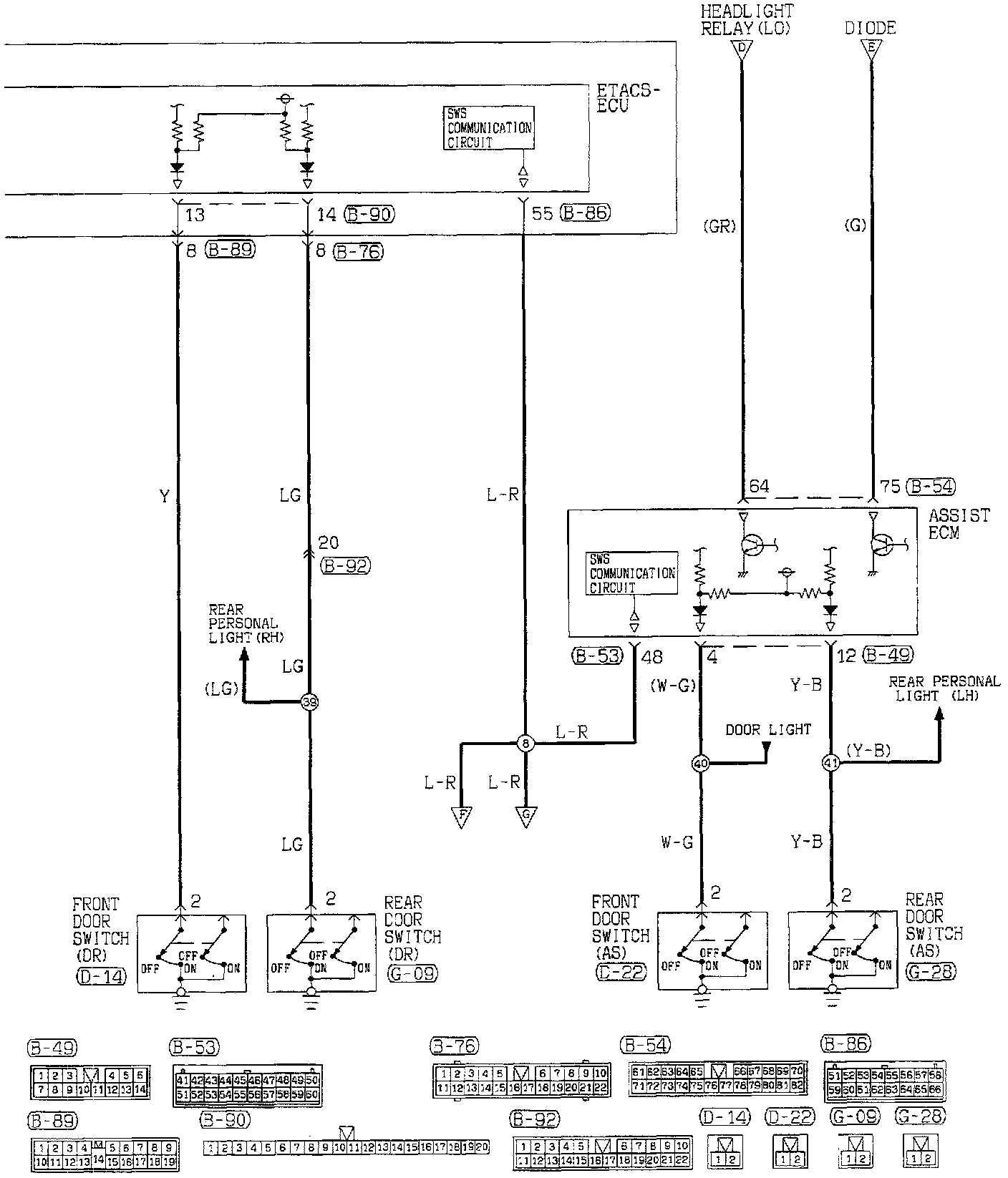

Theft-Alarm System (Part 8 Of 8):





Assist ECM
Park/Neutral Position Switch
Starter
Starter Relay
