System Diagram





Connector View:

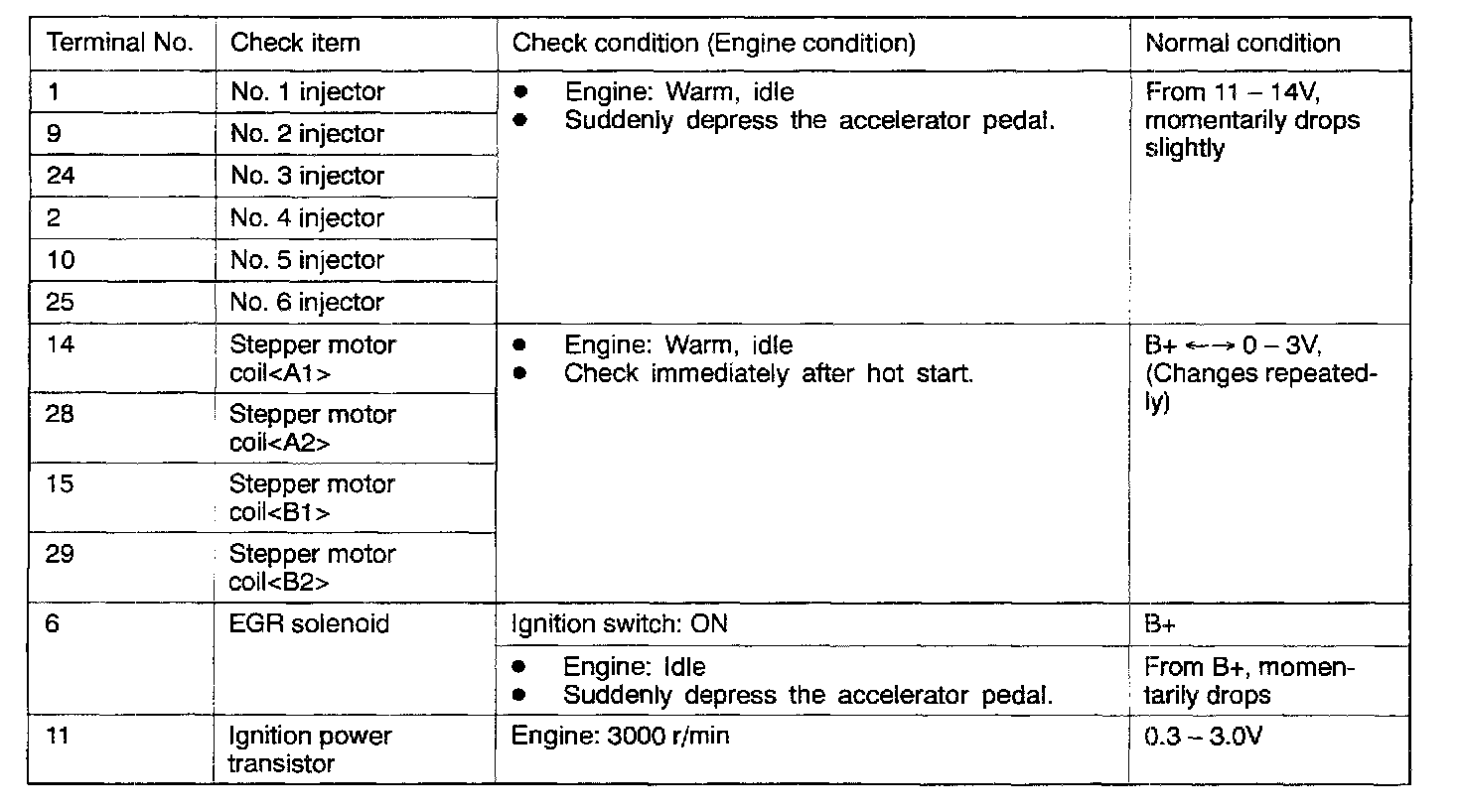

Pinout Voltage Part 1 Of 4:

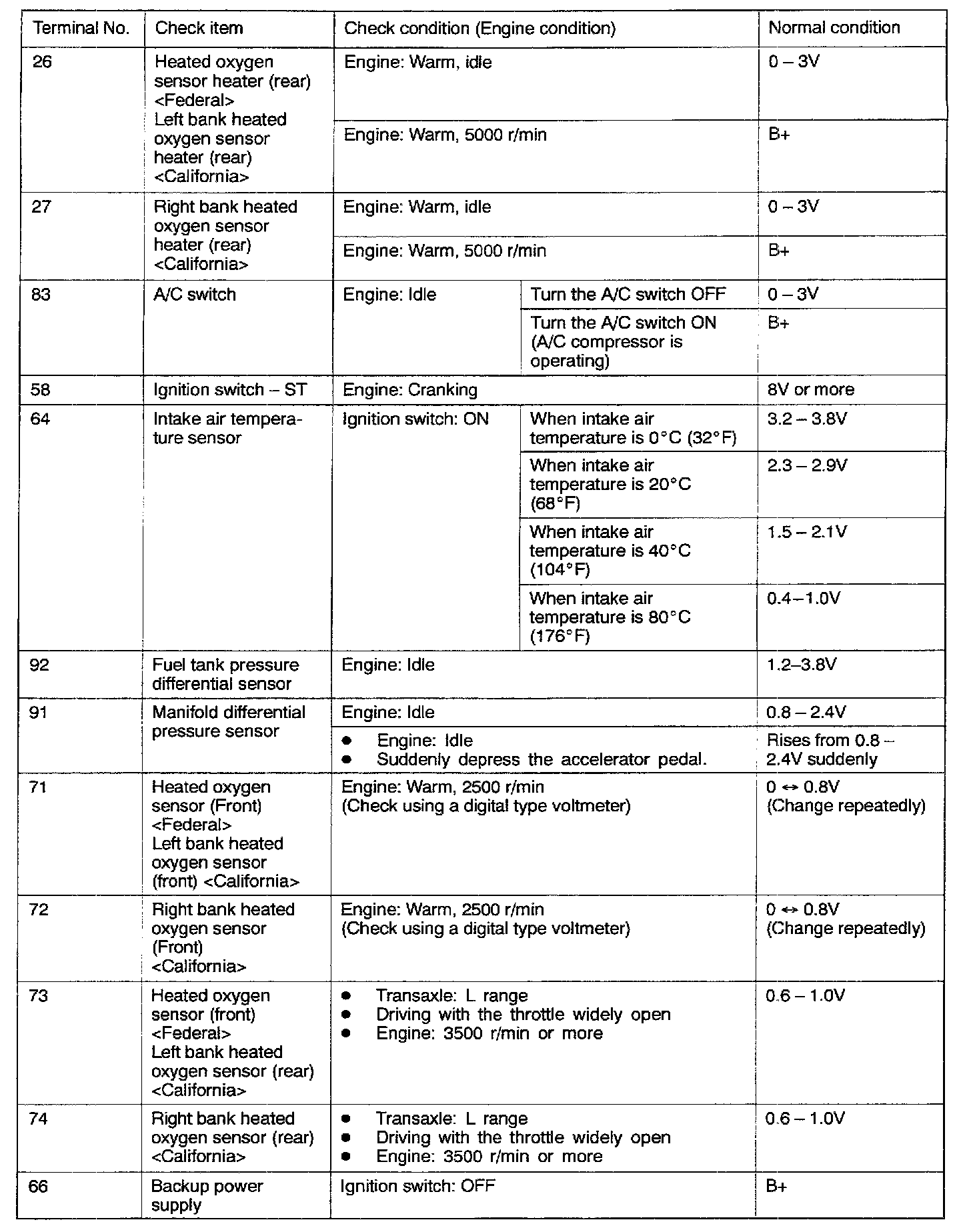

Pinout Voltage Part 2 Of 4:

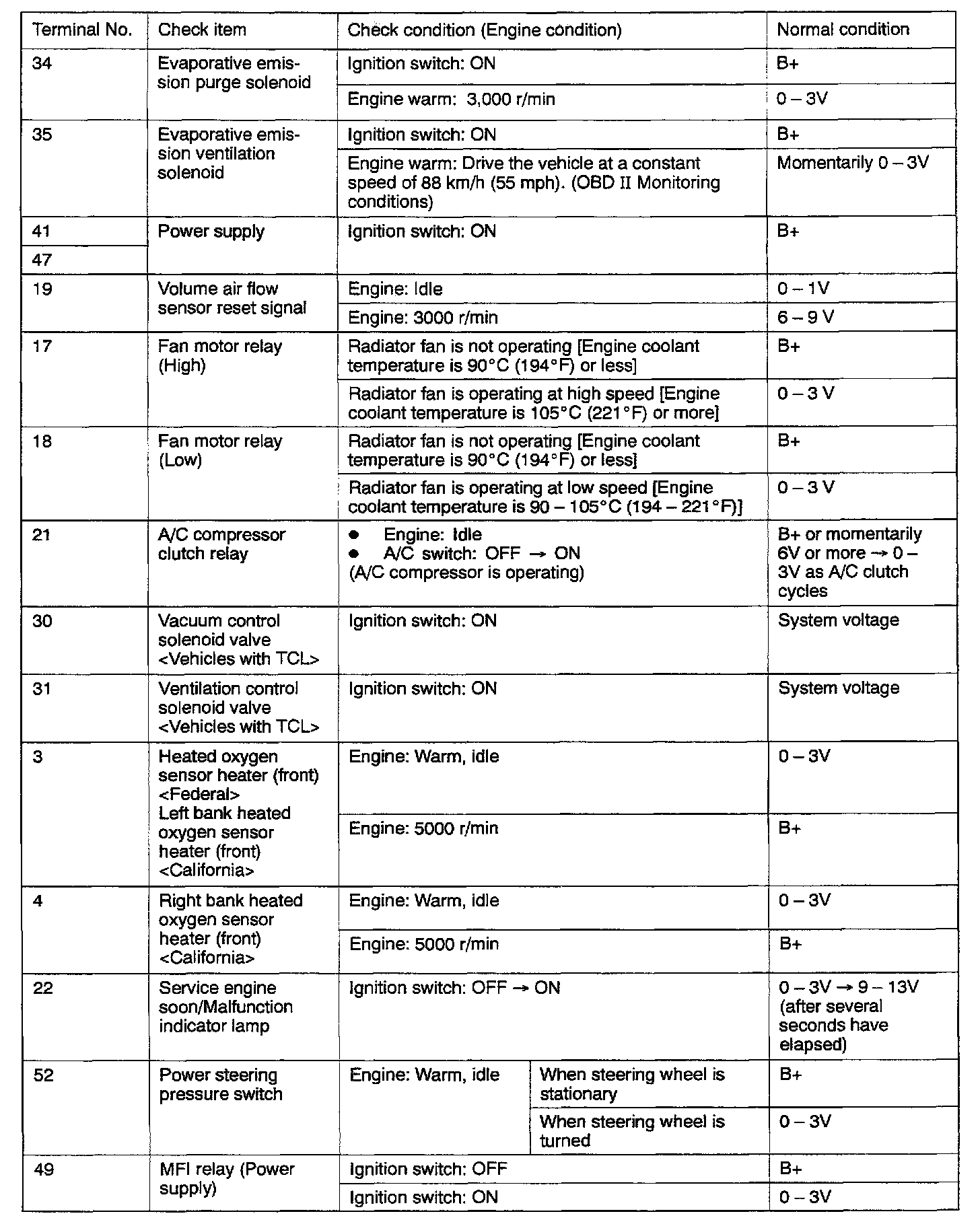

Pinout Voltage Part 3 Of 4:

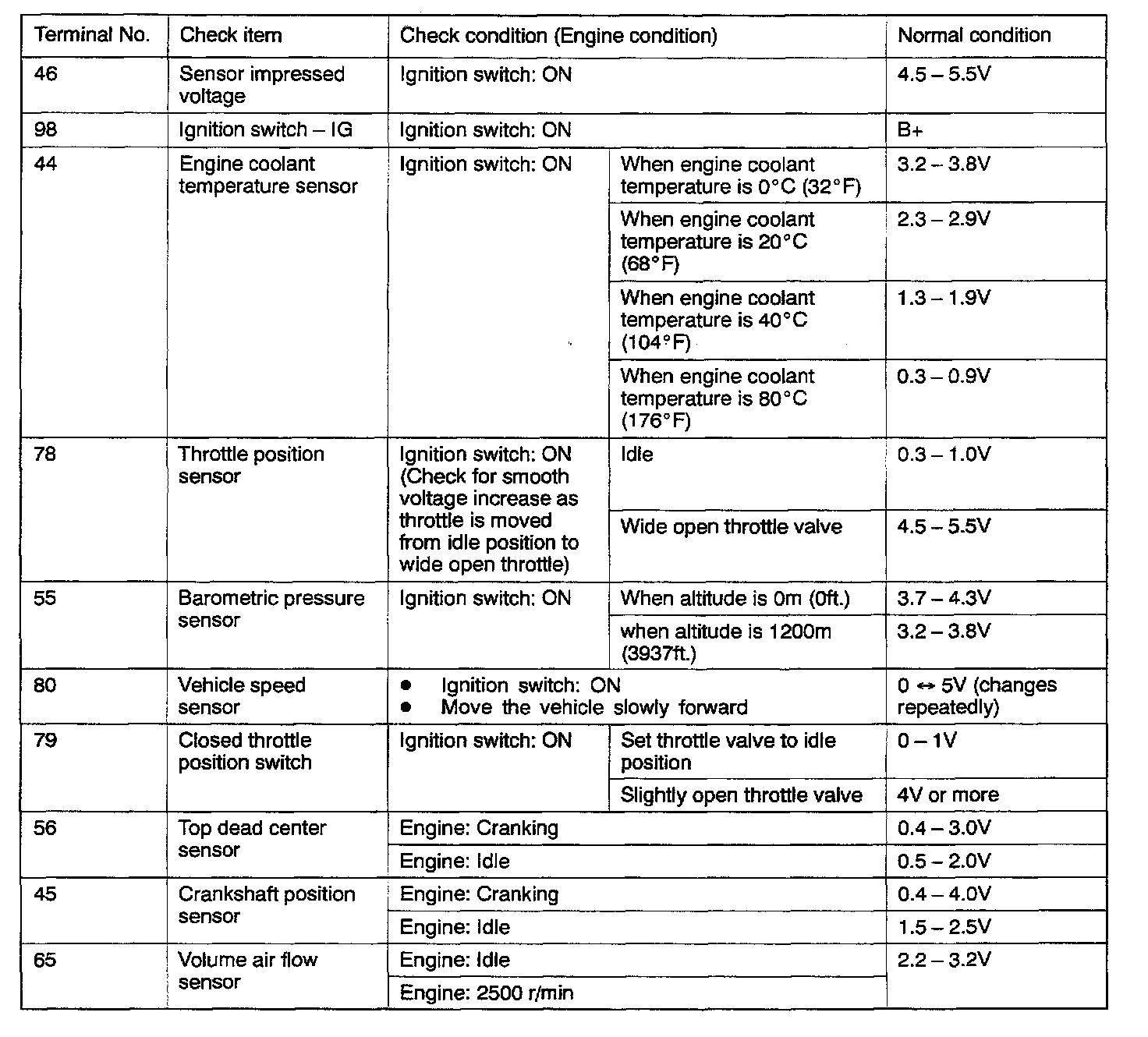

Pinout Voltage Part 4 Of 4:
