Cruise Control - Vacuum Pump Test Revision
No.: TSB-03-17-006DATE: November, 2003
MODEL: 1997-04 Diamante
SUBJECT:

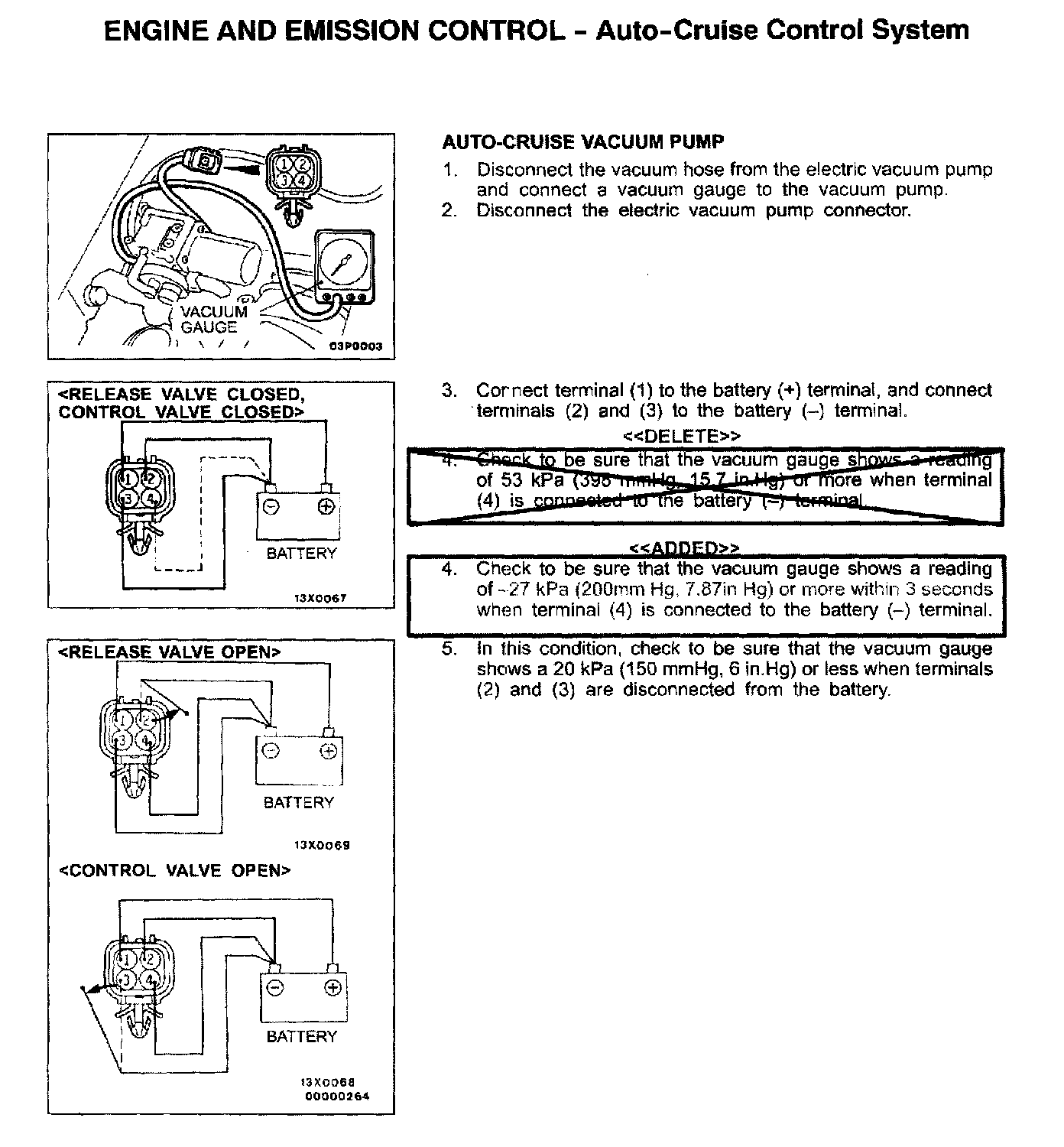

CRUISE CONTROL VACUUM PUMP TEST
SPECIFICATIONS - SERVICE MANUAL REVISION
PURPOSE
Test specifications for the cruise control vacuum pump are incorrectly printed in the affected service manuals. This bulletin contains corrected cruise control vacuum pump test specifications. Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1997-2004 Diamante
AFFECTED SERVICE MANUALS
1997 Diamante, Volume 1, page 17-28
1998 Diamante, Volume 1, page 17-28
1999 Diamante, Volume 2, page 17-27
2000 Diamante, Volume 2, page 17-27
2001 Diamante, Volume 2, page 17-27
2002 Diamante, Volume 2, page 17-27
2003 Diamante, Volume 2, page 17-27
2004 Diamante, Volume 2, page 17-27
