Brake Proportioning/Combination Valve: Service and Repair

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
>A< BRAKE PIPE CONNECTION

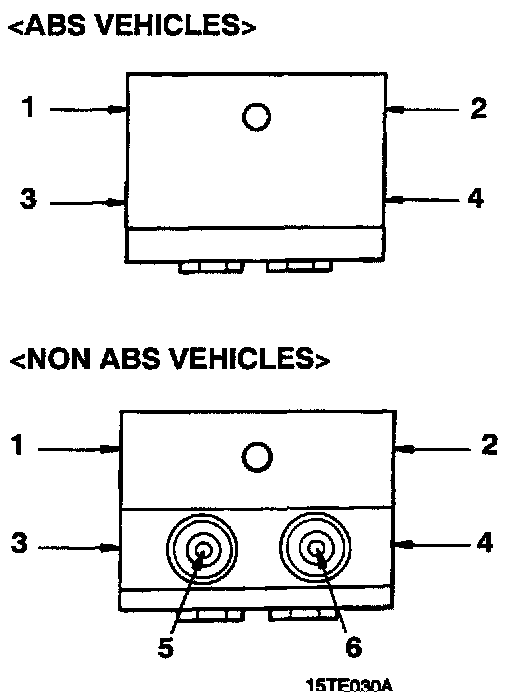

Connect the pipes to the hydraulic unit as shown in the illustration.
Vehicles with ABS
1. Proportioning valve - Rear brake (L.H.)
2. Proportioning valve - Rear brake (R.H.)
3. Proportioning valve - Hydraulic Unit (LR)
4. Proportioning valve - Hydraulic Unit (RR)

Vehicles without ABS
1. Proportioning valve - Rear brake (L.H.)
2. Proportioning valve - Rear brake (R.H.)
3. Proportioning valve - Front brake (R.H.)
4. Proportioning valve - Front brake (L.H.)
5. Master cylinder (for right front and left rear)
6. Master cylinder (for left front and right rear)
