Lock Cylinder Switch: Testing and Inspection

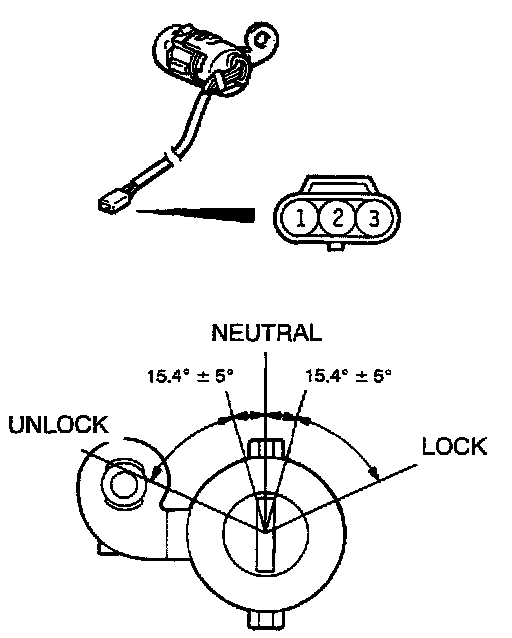

Connector View:

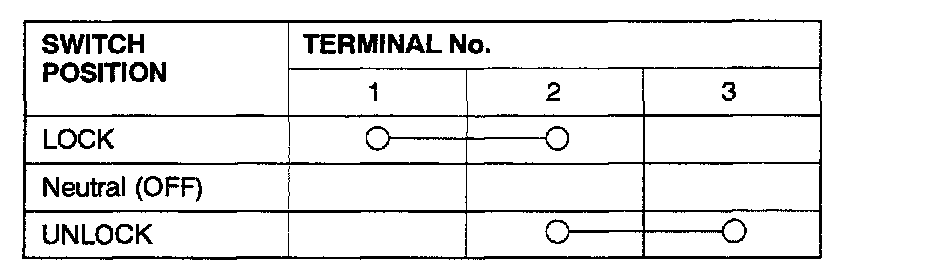

Continuity Test:




DOOR LOCK KEY CYLINDER SWITCH TEST
