Rear

CAMBER

Standard value: -0° 10' ± 30'

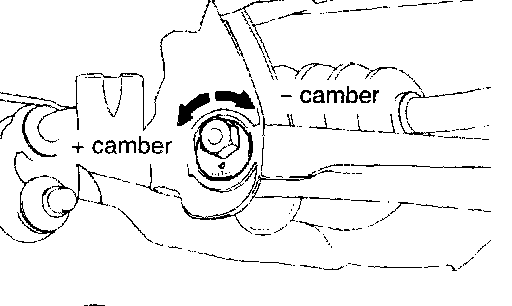

To adjust camber, turn the lower arm mounting bolt on the crossmember side.

NOTE:
- Left wheel: Clockwise ((-) camber)
- Right wheel: Clockwise ((+) camber)
- The difference between the right and left wheels should be 30' or less.
- One graduation changes camber by about 12'.

TOE-IN

Standard value: 0.5 ± 2.5 mm (0.01 ± 0.09 inch)

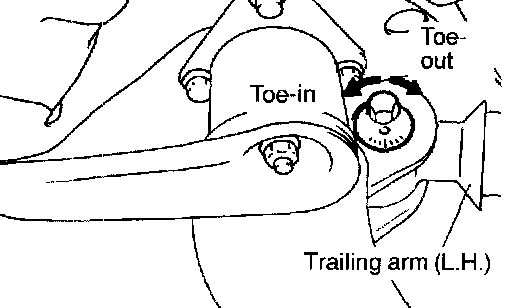

To adjust toe, turn the trailing arm mounting bolts on the crossmember side on both sides the same amount.

NOTE:
- Left wheel: Clockwise (toe-out)
- Right wheel: Clockwise (toe-in)
- The difference between right and left wheels should be 3 mm (0.12 inch) or less.
- One graduation changes toe by about 2 mm (0.08 inch).





CAUTION:

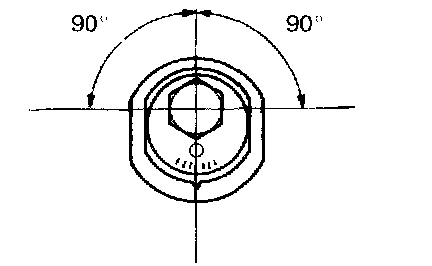

- Adjust the eccentric cam bolt within 90° from the central position.
- Adjust camber and toe, in that order, and, if camber is adjusted, be sure to adjust toe also.
- Make the adjustments with the 4WS tie rod end disconnected from the trailing arm.
