Cabin Temperature Sensor / Switch: Service and Repair

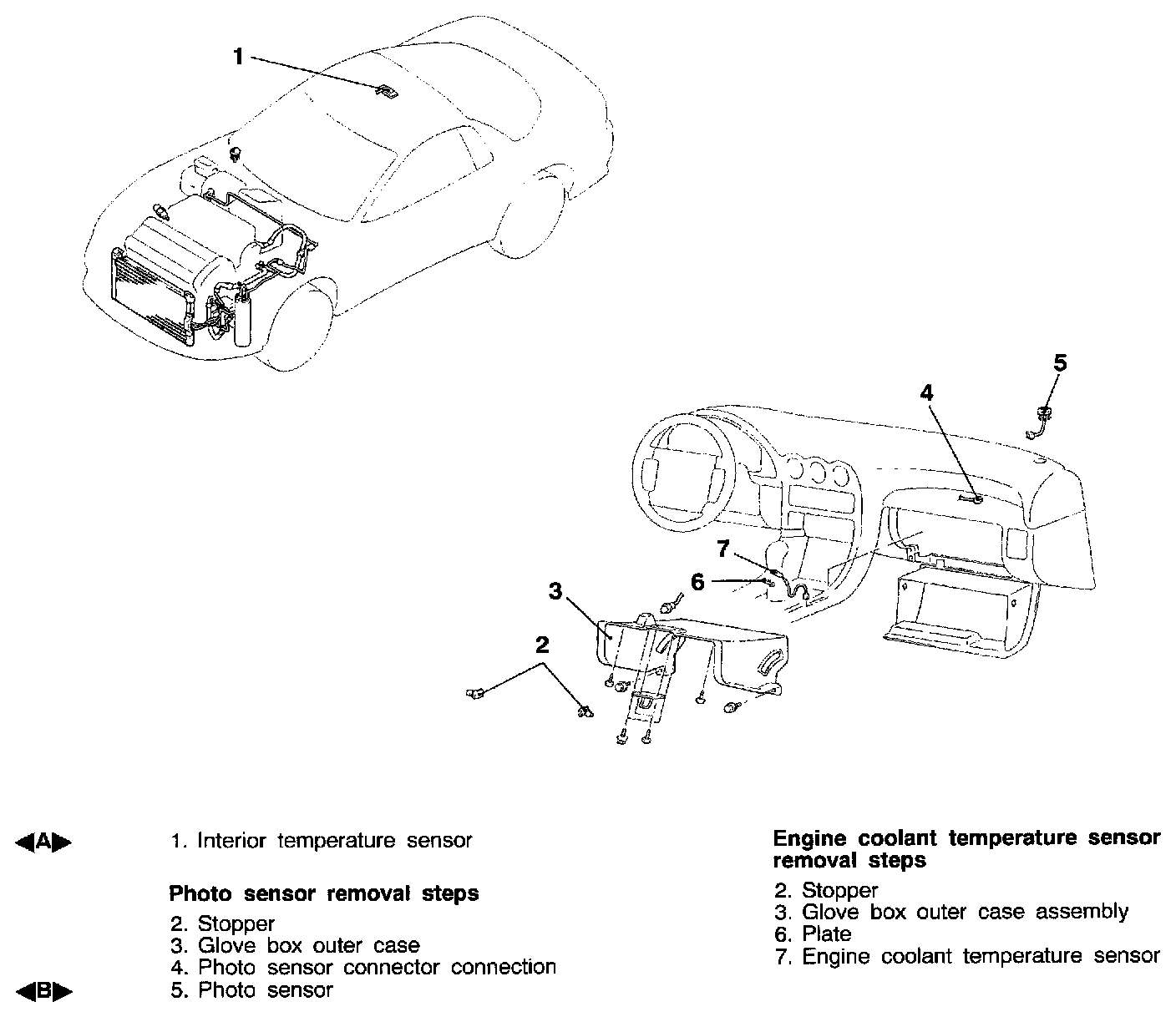

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS

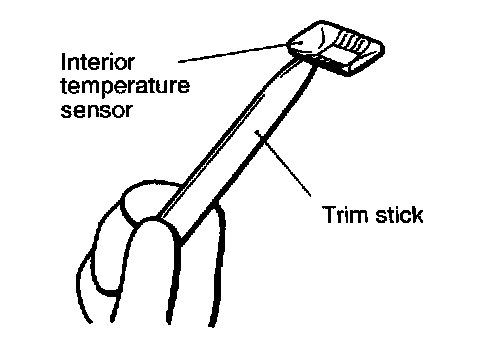

INTERIOR TEMPERATURE SENSOR REMOVAL
Using the trim stick, remove the interior temperature sensor from the headlining.

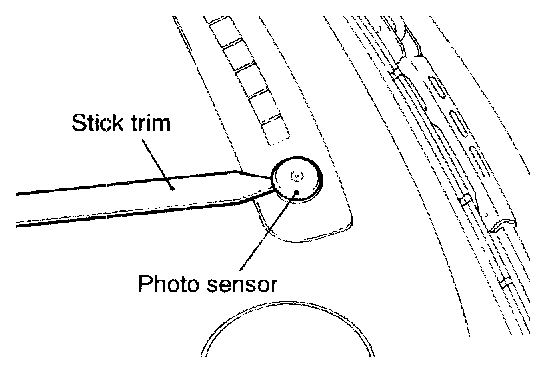

PHOTO SENSOR REMOVAL
Using a trim stick, remove the photo sensor from the defroster garnishes.
