Engine Control Module

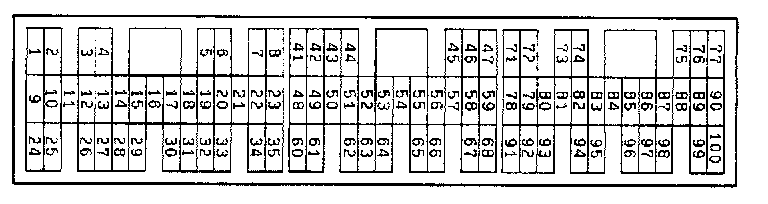

Connectors:

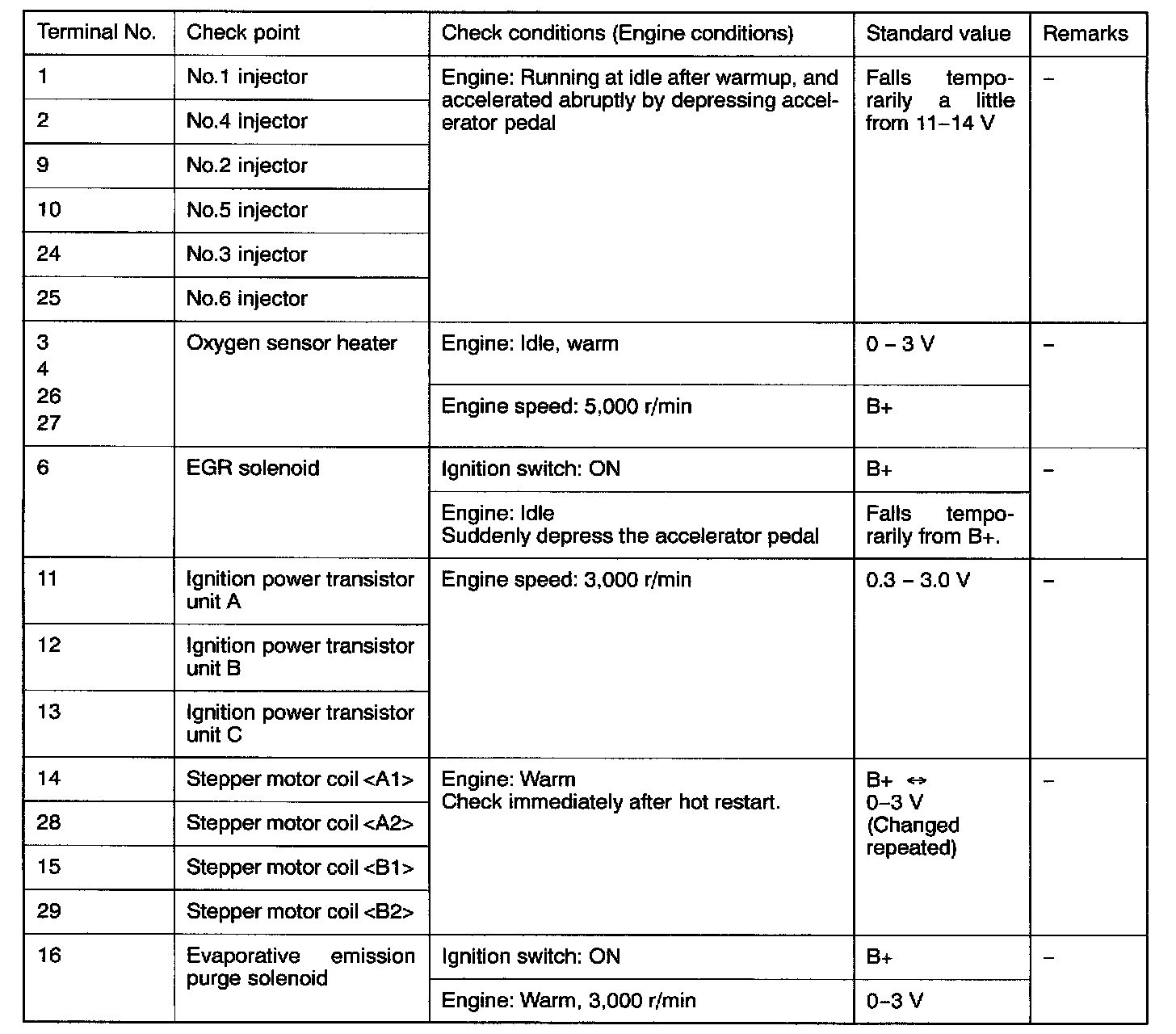

Terminals 1 - 16:

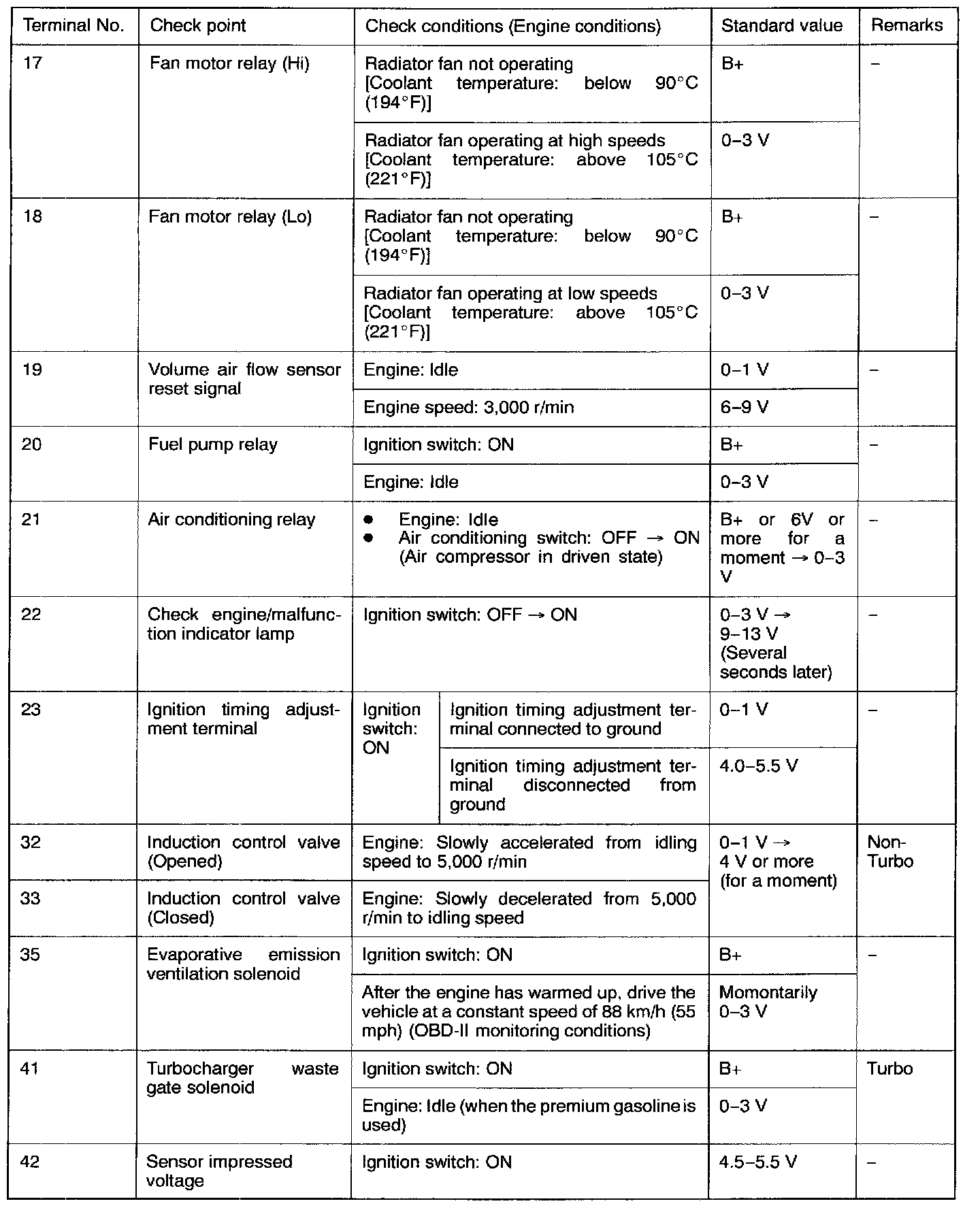

Terminals 17 - 42:

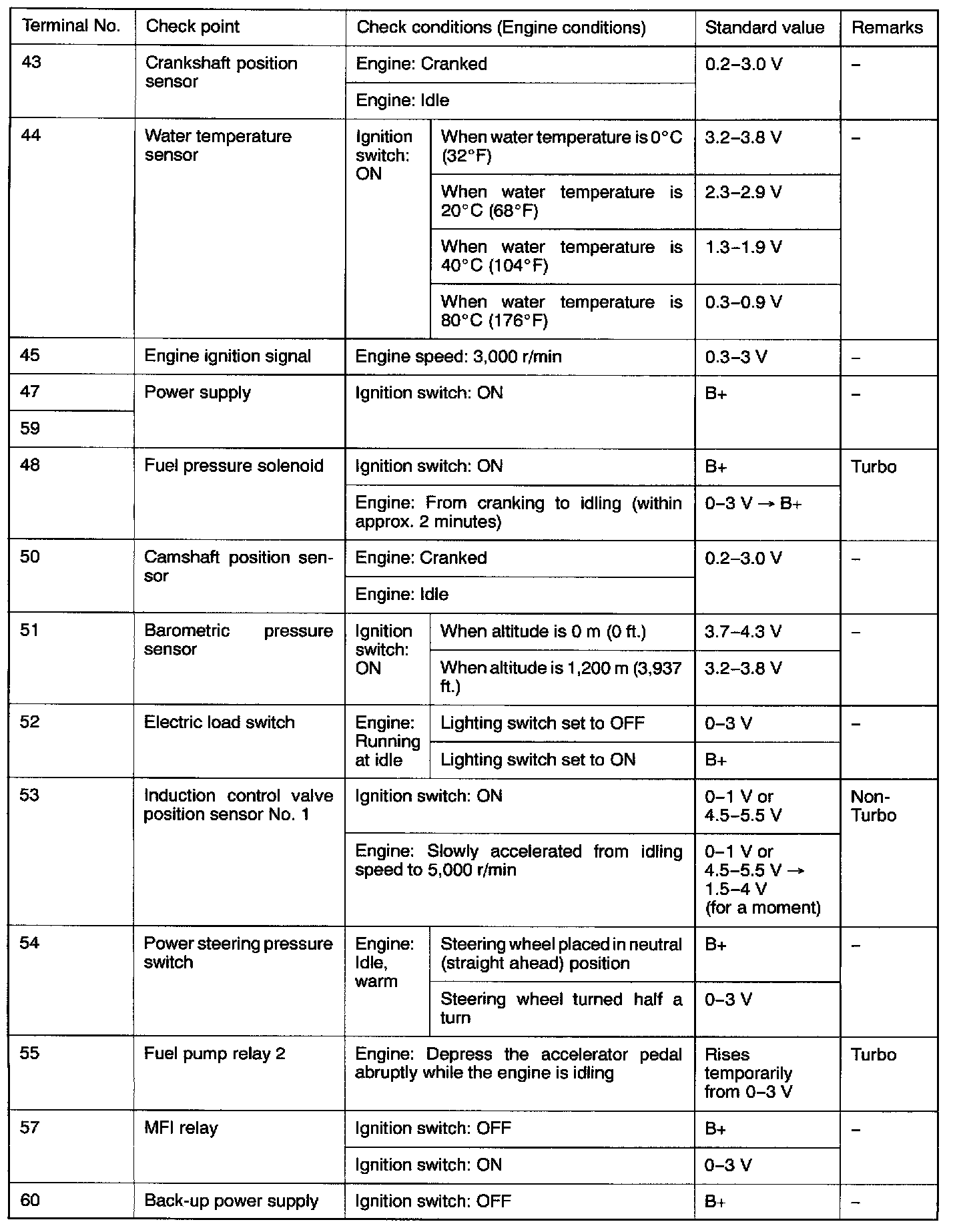

Terminals 43 - 60:





Terminals 61 - 75:

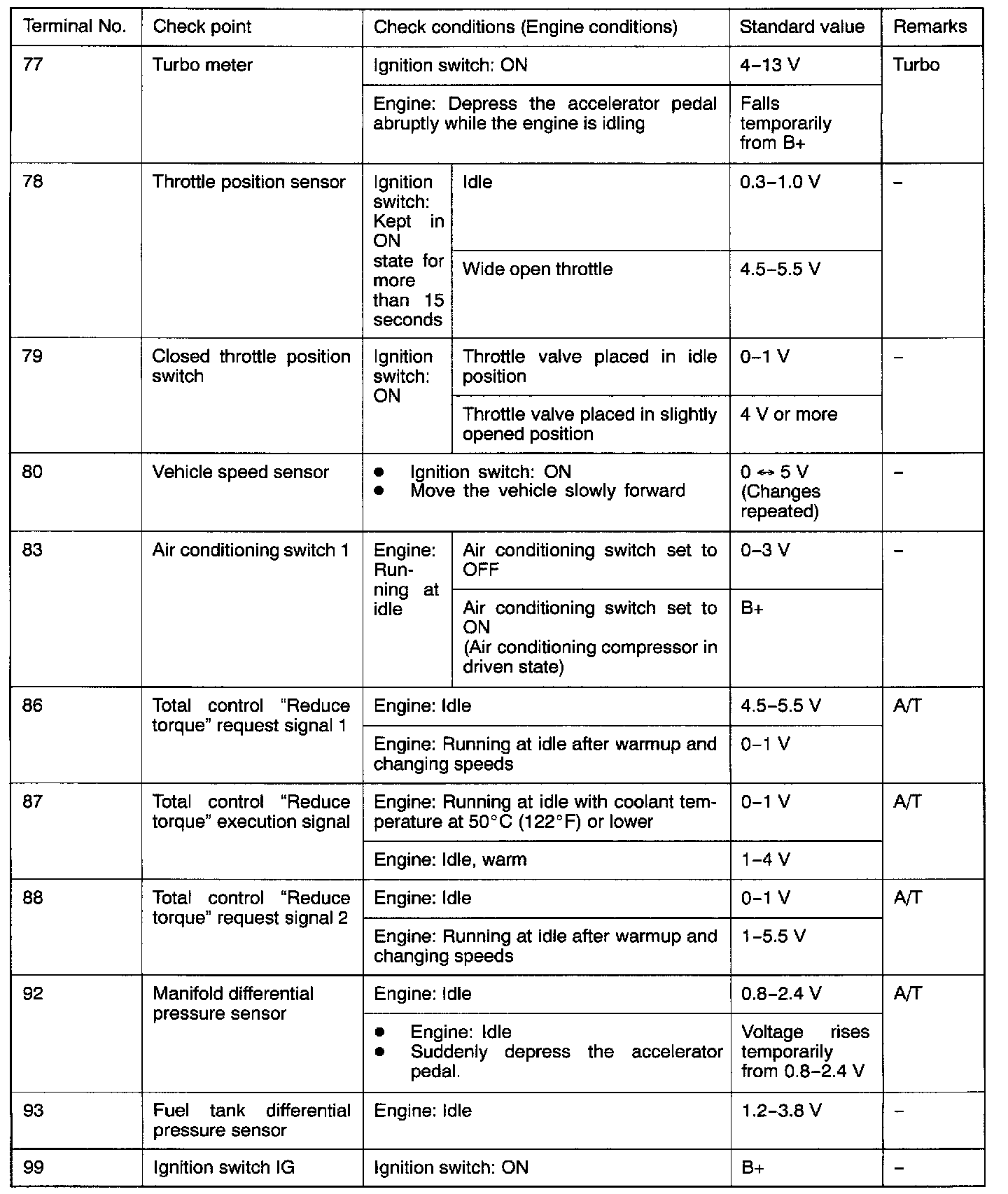

Terminals 77 - 99:
