Windshield Wiper and Washer

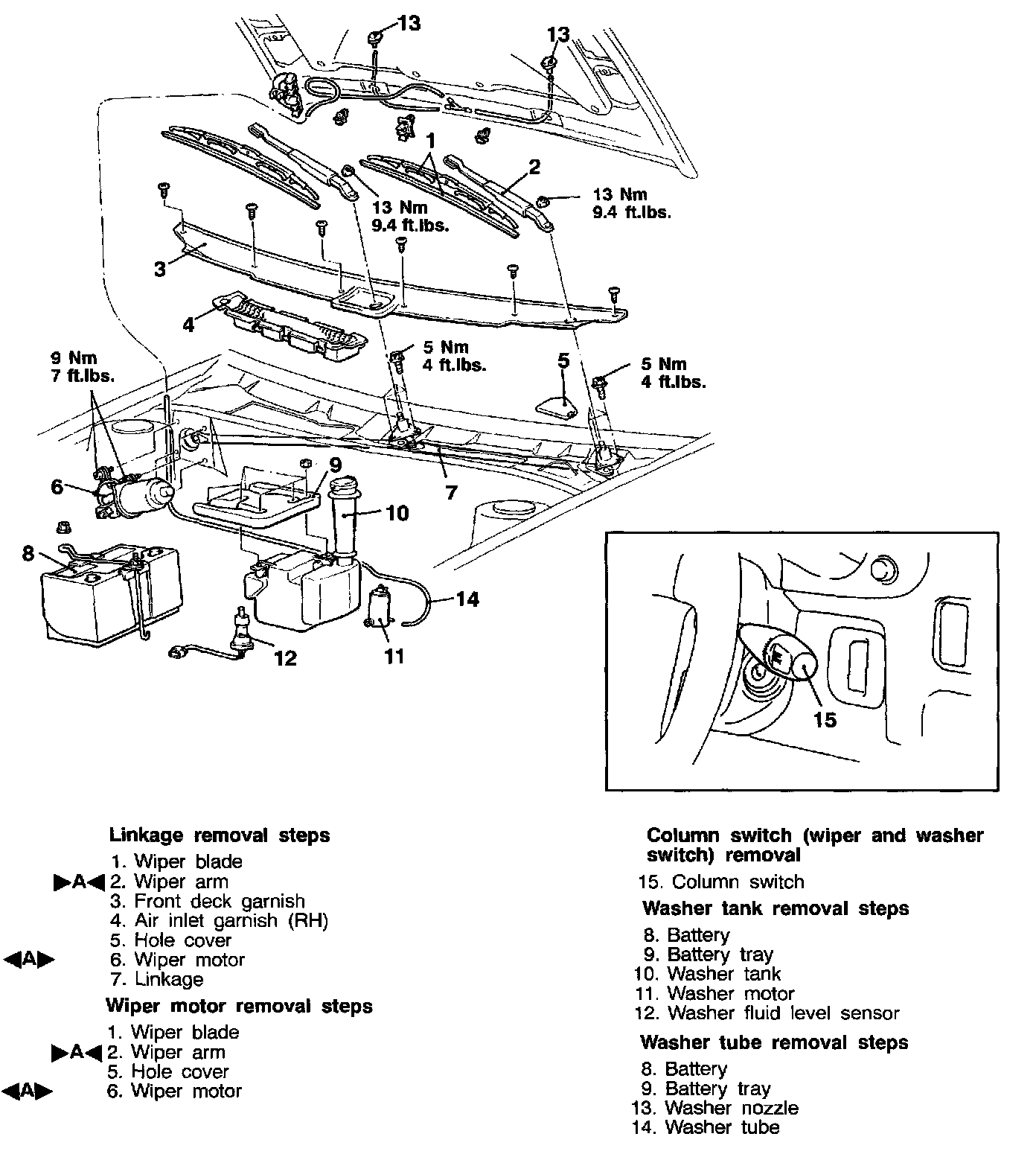

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




WIPER MOTOR REMOVAL
1. Remove the wiper motor mounting bolts.

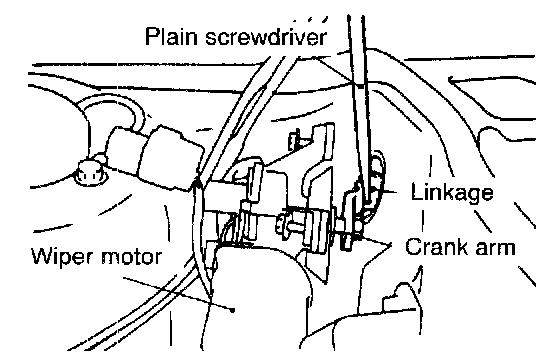

2. Using a plain screwdriver, detach the crank arm of the wiper motor from the linkage to remove the wiper motor.

CAUTION: Do not remove the crank arm from the wiper motor except when necessary, as the auto stop angle has been preset. When the crank arm is to be removed, make a mark on both of them before removal.

INSTALLATION SERVICE POINT

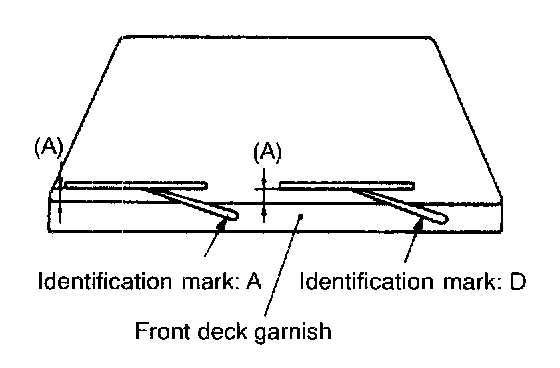

>A< WIPER ARM INSTALLATION
1. The wiper arms, right and left, are different in shape. Check the identification symbol.
2. After the wiper blades have been set, install them in such a way that the ends of the wiper blades will stop at the specified positions (standard values).

Standard value (A): 15 - 20 mm (0.6 - 0.8 in.)
