Rear Wiper and Washer

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

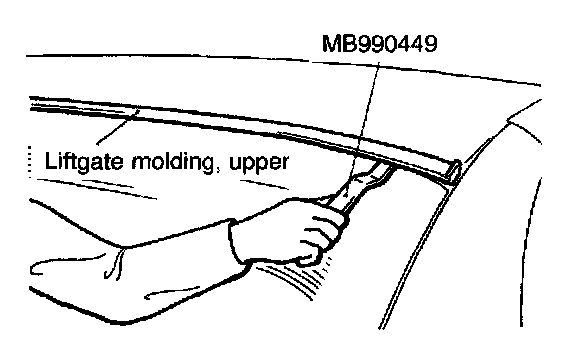

LIFTGATE UPPER MOLDING REMOVAL
Using a special tool, pry the clip portion to remove the upper liftgate molding.

INSTALLATION SERVICE POINT

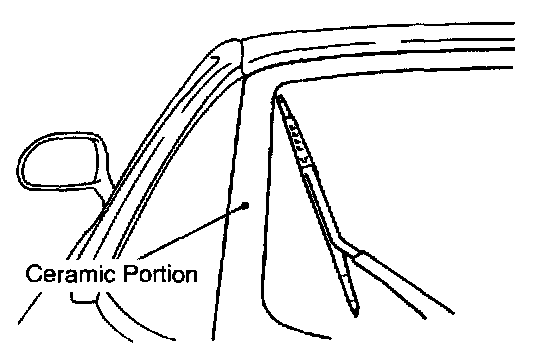

>A< WIPER ARM INSTALLATION
After assembling the wiper blade to the wiper arm, install the wiper arm with its tip positioned along the ceramic part.
