Heated Glass Element Relay: Testing and Inspection

DEFOGGER RELAY

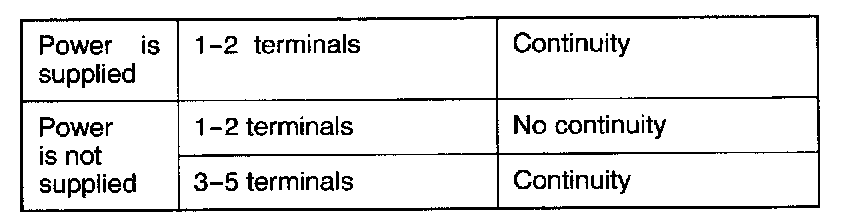

Defogger Relay Continuity Check:







Connect battery power source to terminal 5. Check circuit between terminals with terminal 3 grounded.
