Output Shaft

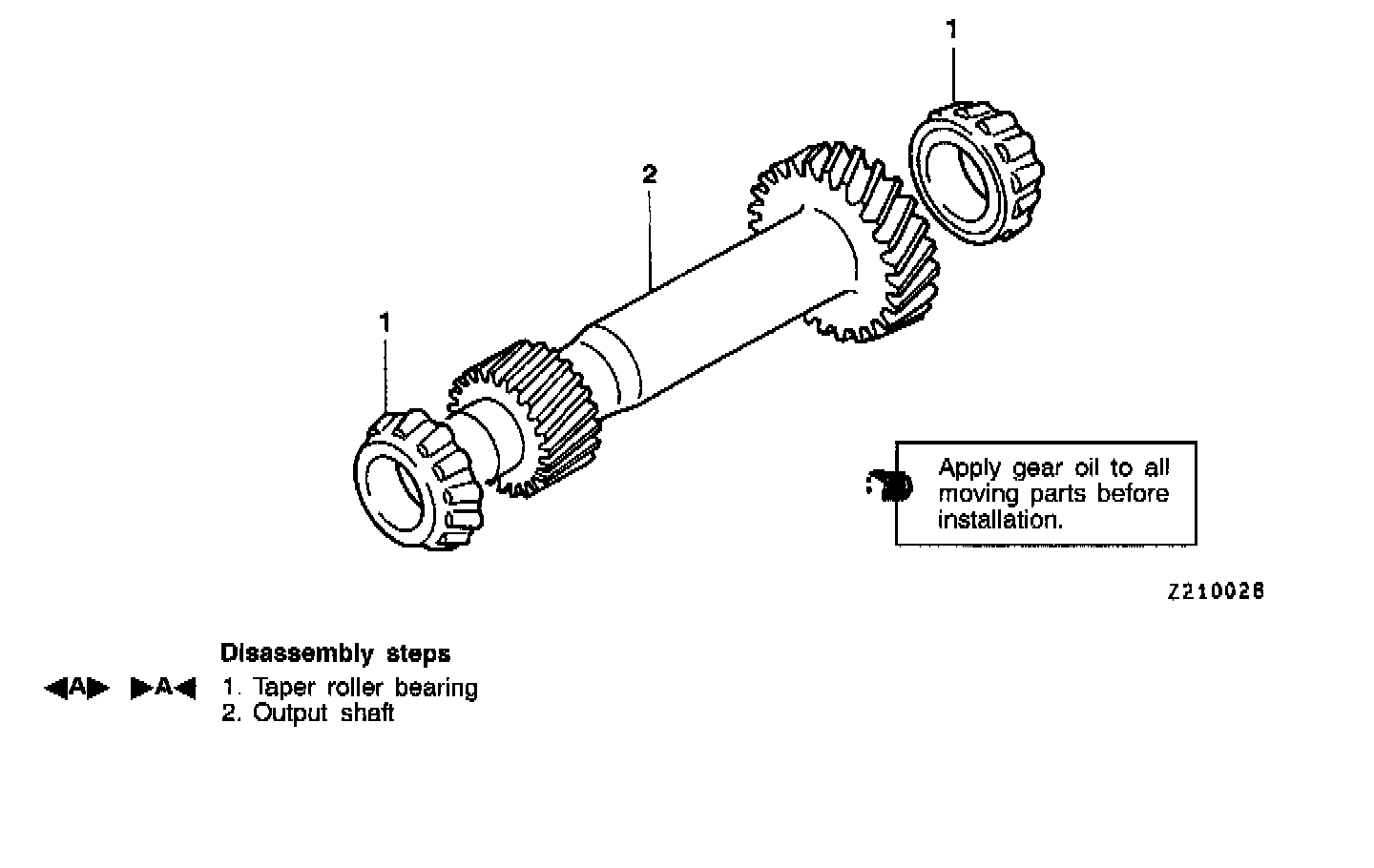

DISASSEMBLY AND REASSEMBLY
Disassembly Service Points

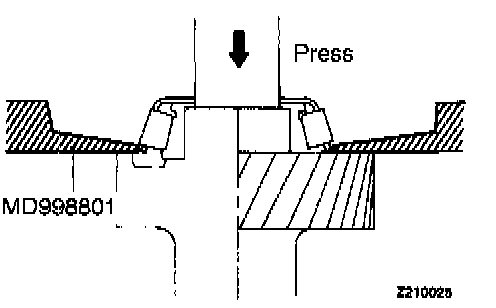

Taper Roller Bearings Removal

CAUTION:
1. Do not reuse the bearings removed from the shaft.
2. Replace the inner and outer races of the taper roller bearing as a set.

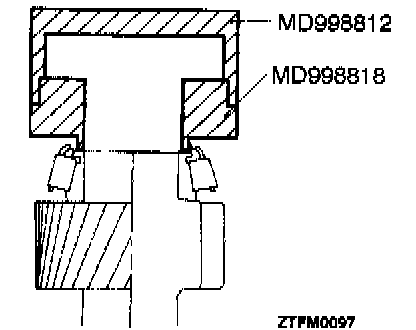

Reassembly Service Points
