Seals and Gaskets: Service and Repair

DRIVE SHAFT OIL SEALS REPLACEMENT





1. Disconnect the drive shaft from the transaxle.

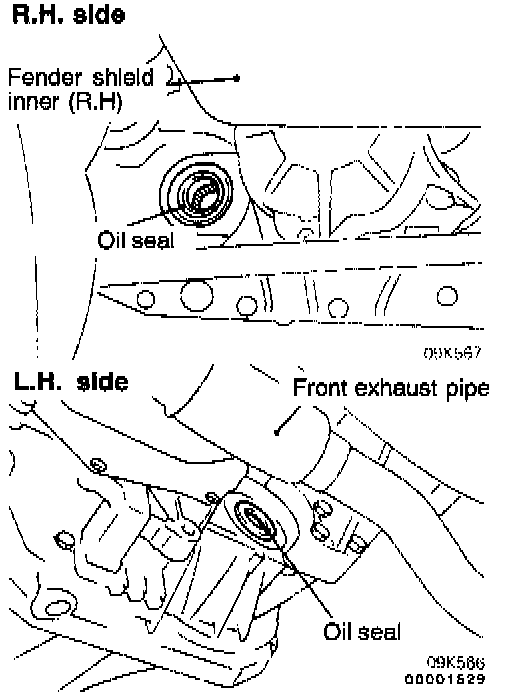

2. Using a flat-tip (-) screwdriver, remove the oil seal.

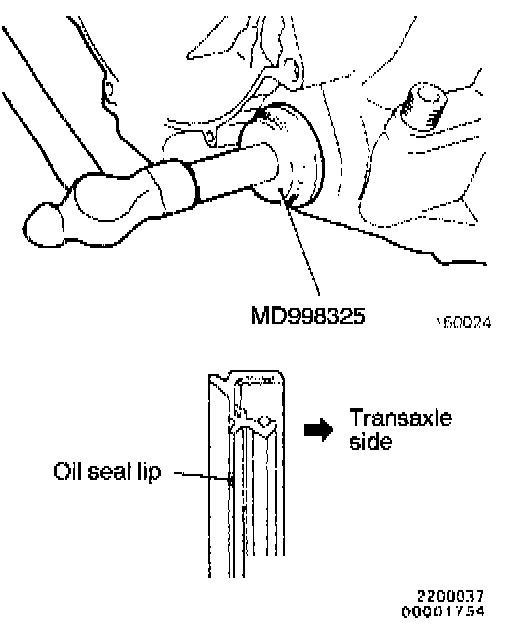

3. Using the special tool, tap the drive shaft oil seal into the transaxle. The drive shaft oil seal must be installed in the direction shown.
4. Apply a coating of the transmission oil to the lip of the oil seal.
Transmission oil: Hypoid gear oil, SAE 75W-90 or 75W-85W conforming to API classification GL-4
