Manual Transmission/Transaxle: Application and ID
SNAP RINGS AND SPACERS ADJUSTMENT

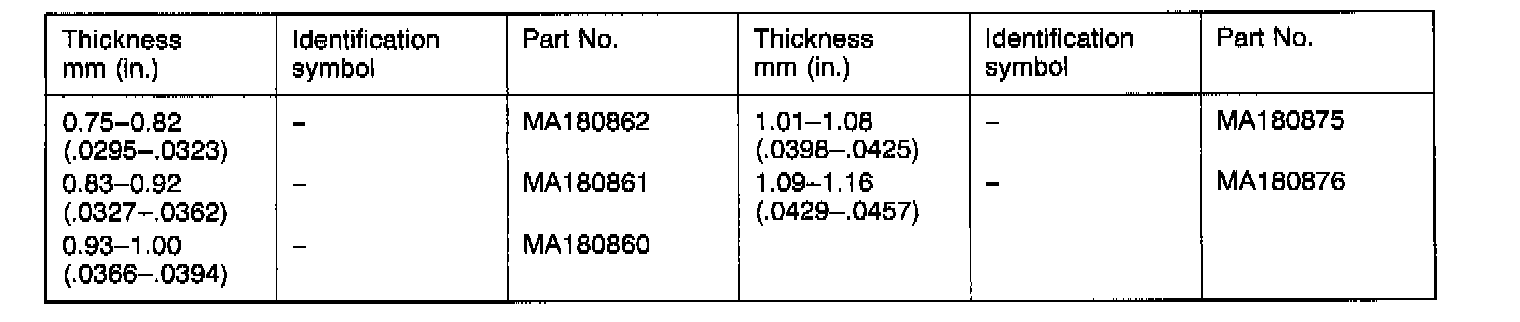

Snap ring (For adjustment of input shaft rear bearing end play)

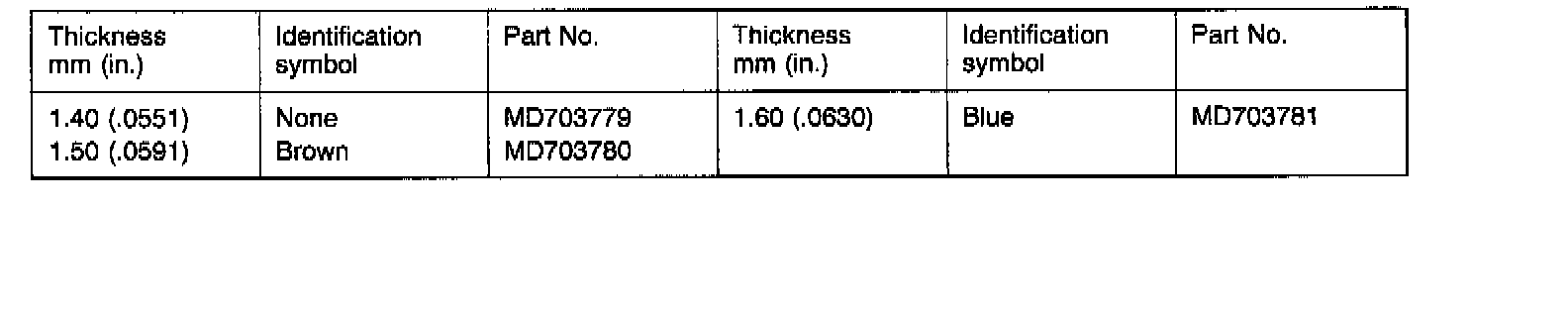

Spacer (For adjustment of input shaft end play)

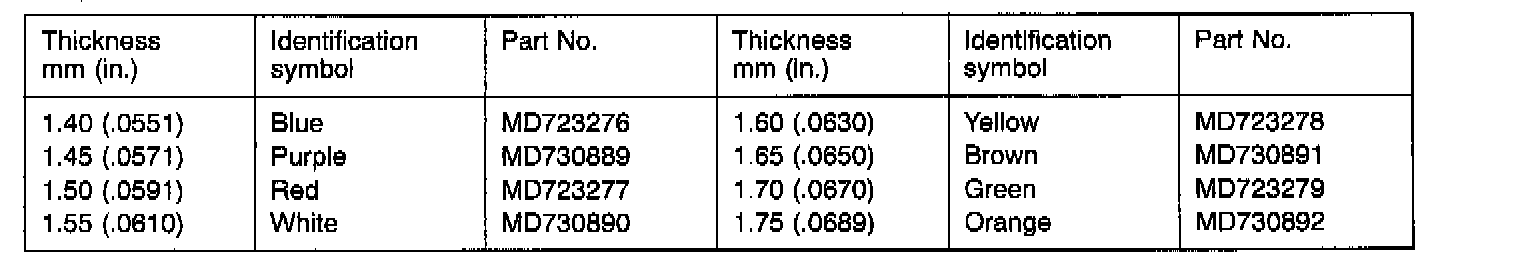

Snap ring (For adjustment of intermediate gear bearing end play)

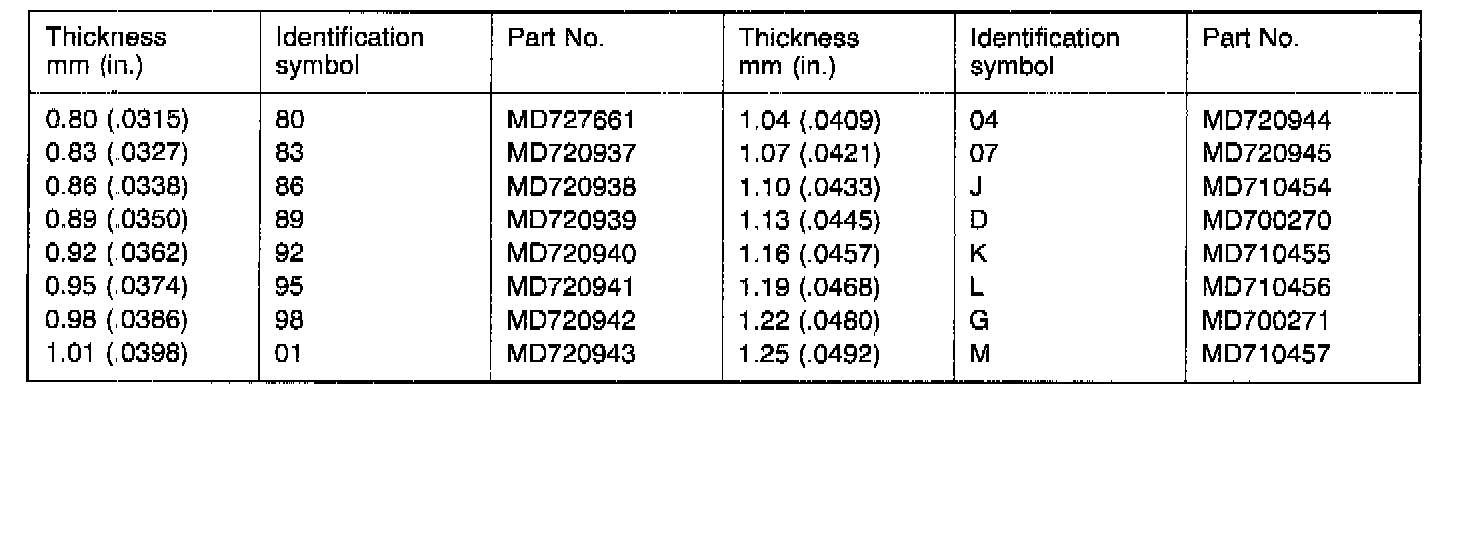

Spacer (For adjustment of intermediate gear preload)

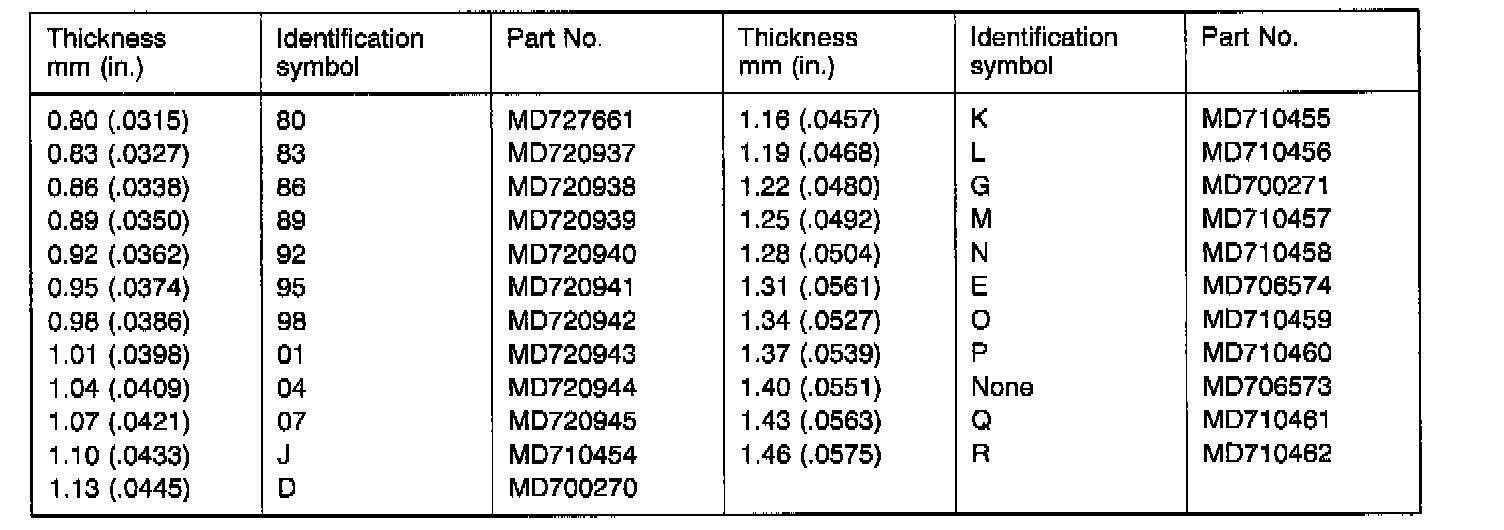

Spacer (For adjustment of output shaft preload)

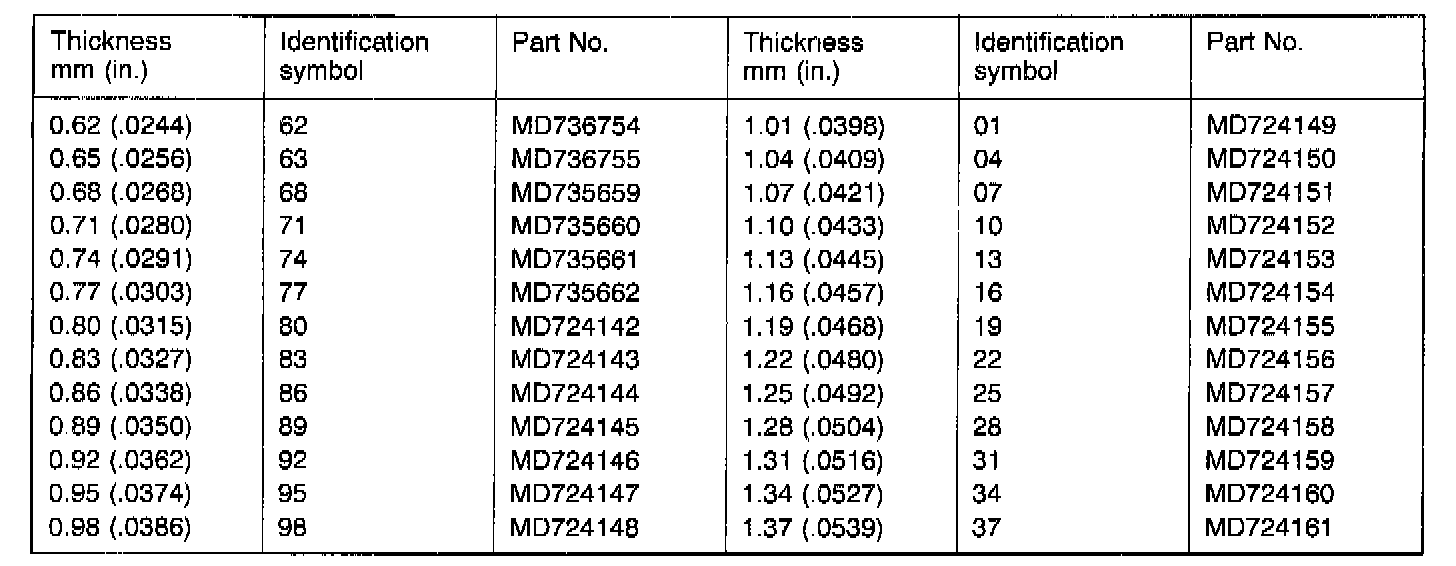

Spacer (For adjustment of differential case preload)
Spacer (For adjustment of differential pinion backlash)
