Transmission Mount: Service and Repair

REMOVAL AND INSTALLATION

Installation Service Point

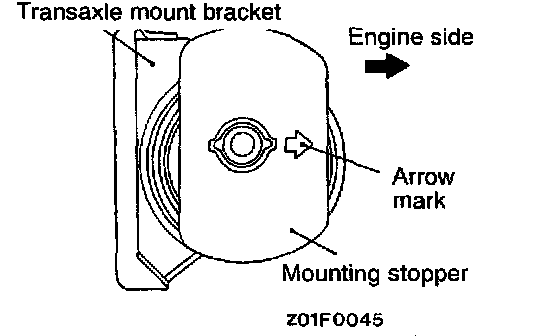

>A< Mounting Stopper Installation





Attach the transaxle mounting bracket so that the arrow mark on the mounting stopper is in the direction as shown in the illustration

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
