Shifter A/T: Service and Repair

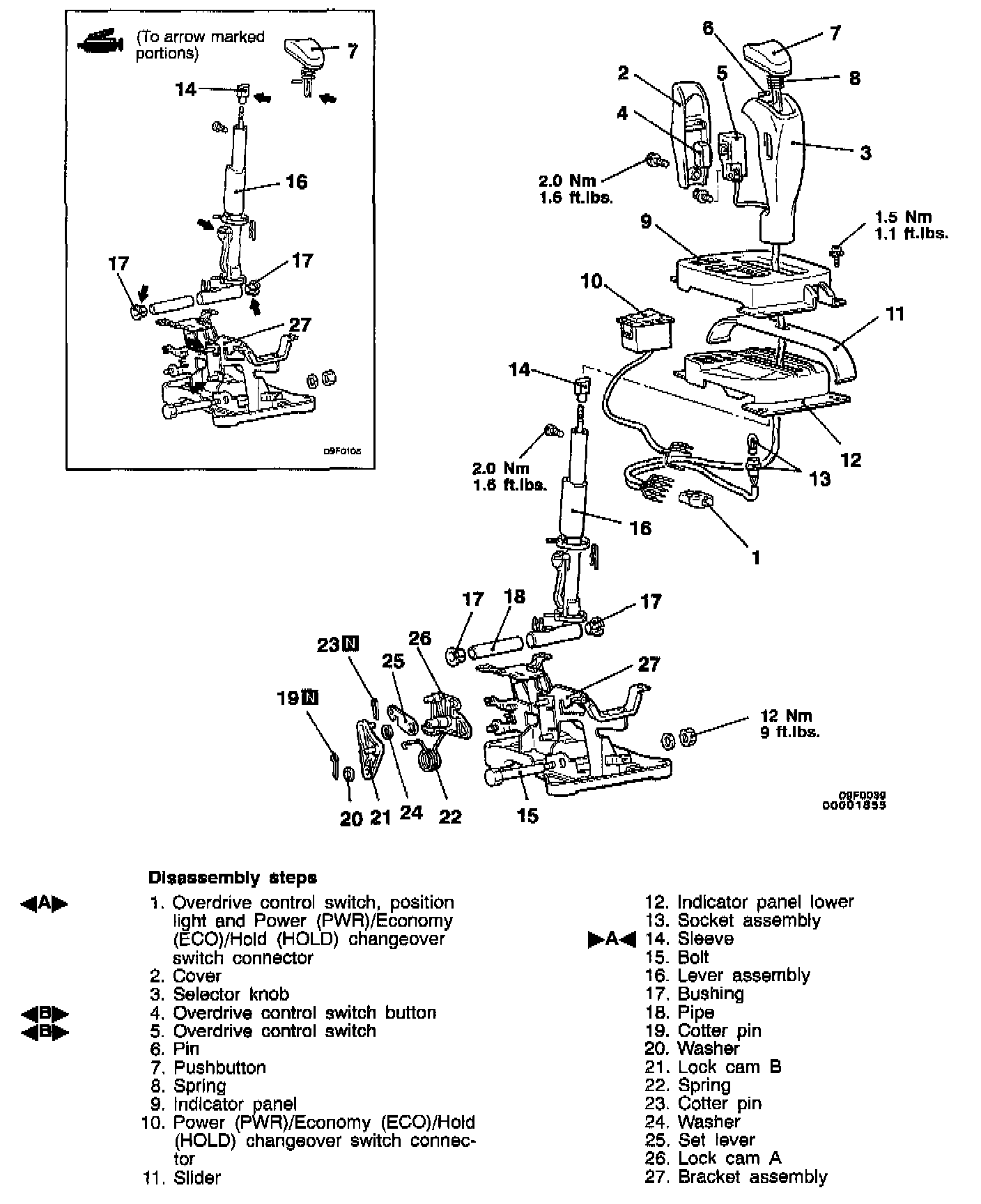

DISASSEMBLY AND ASSEMBLY
Disassembly Service Points
Overdrive Control Switch Connector Removal

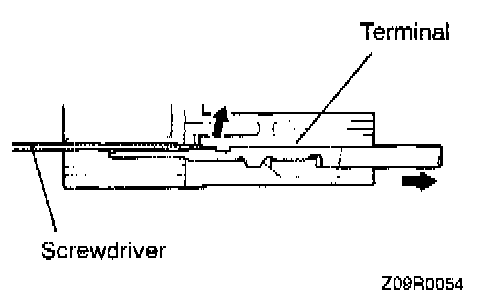

Disconnect the overdrive control switch connector and then remove the terminal from the overdrive control switch connector.
Overdrive Control Switch Button / Overdrive Control Switch Removal

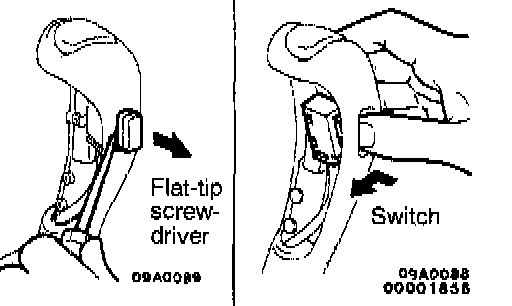

1. Using the flat-tip screwdriver, remove the overdrive control switch button.
2. Remove the overdrive control switch mounting screw.
3. Pressing the switch, remove the overdrive control switch.
Reassembly Service Point
>A< Sleeve Installation

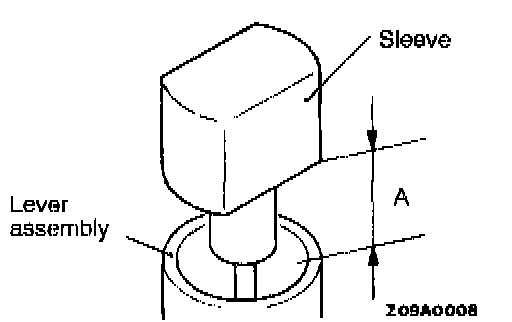

Place the selector [ever in the "N" position, and then turn the sleeve so that the clearance between the sleeve and the lever assembly end is within the standard value.
Standard value (A): 15.2 - 15.9 mm (0.598 - 0.625 inch)
INSPECTION
- Check the detent plate for wear.
- Check the bushing for wear or damage.
- Check the spring for damage or deterioration.

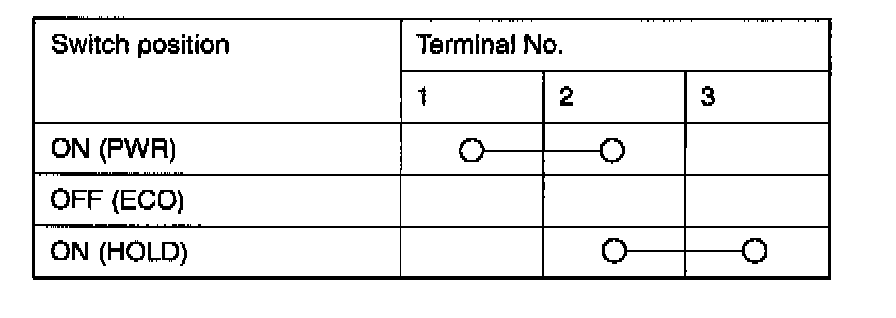

Power (Pwr)/Economy (Eco)/Hold (Hold) Switch Check
Check for continuity between terminals when the switch is OFF and when ON.

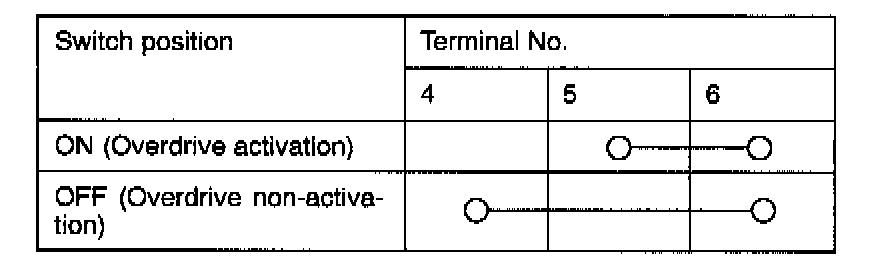

Overdrive Control Switch Check
Check for continuity between terminals when the switch is OFF and when ON.
