Speedometer Gear

DISASSEMBLY AND REASSEMBLY
Reassembly Service Point

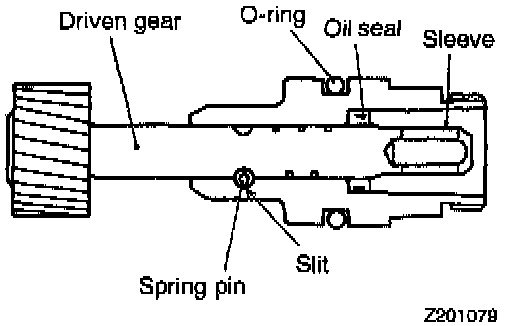

>A< Spring Pin Installation





1. Drive a new spring pin into the sleeve. Make sure that the slit in the spring pin does not face the gear.
